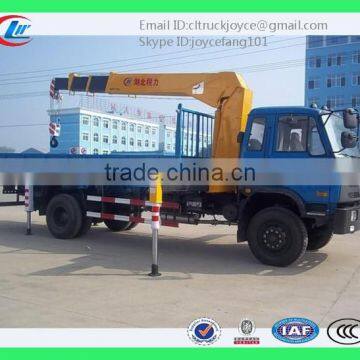

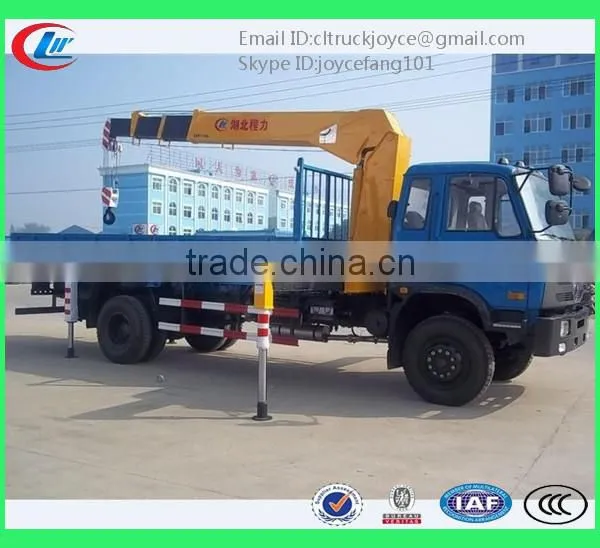

10T 4x2 Dongfeng Straight Arm Crane Truck,overhead Crane

Name: 10T 4x2 Dongfeng Straight Arm Crane Truck,overhead Crane
Brand: Dongfeng
SKU: 141642044
Availability: InStock

Chengli Special Automobile Co., Ltd.

US$ 29,500 - 69,500 MOQ: 1 Unit

Key Specifications

Condition:

New

Application:

all

Rated Loading Capacity:

10tons

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application all

Rated Loading Capacity 10tons

Rated Lifting Moment 151200n.m

Max. Lifting Load 6.3tons

Max. Lifting Height 14m

Span 5

Place of Origin Hubei, China

Brand Name Dongfeng

Model Number SQ6.3SA3

Certification CCC,ISO

Warranty 12monthes

After-sales Service Provided Engineers available to service machinery overseas

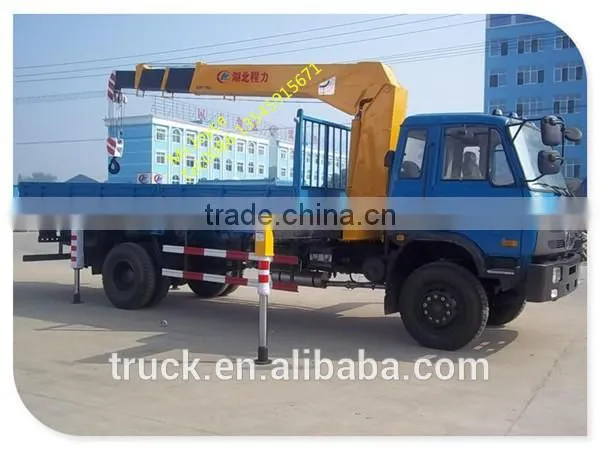

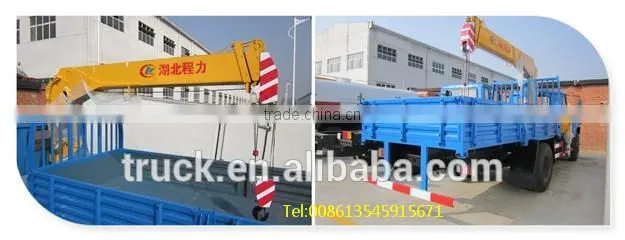

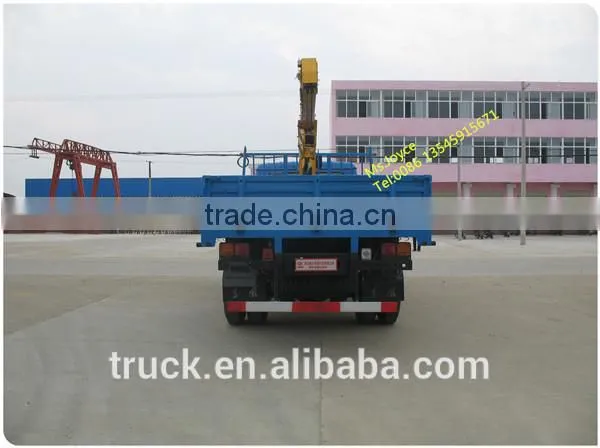

10T 4x2 dongfeng straight arm crane truck,overhead crane

Engine brand:Cummins Power:190hp

Item	unit	parameter
Vehicle		Dongfeng Truck With Crane
Overall dimensions	mm	9000x2470x3600
GVW	kg	Appro×12400
loading capacity		Appro×10000
Mass in working order		Appro×7825
Body internal dimensions	mm	6140x2294x550
Wheel base		4700
F/R track base		1250/2650
Approach/departure angle	°	34/16
Exhaust/hp	ml/hp	5900/190
Max speed	km/h	90
Tire specification	10.00-20	Engine type	B19033
Traction system	4×2	transmission	6-speed with over drive
Number of axles	2	Electric system	24v
Operation control system	Electrically hydraulic control	Allowable passengers in cab	2
Engine	Cummins diesel engine
Production cycle	10-15 days
Warranty	12 month,from the date of supply
Contact : Joyce	Tel:+86 13545915671,Skype:joycefang101

More details of knuckle crane

Vehicle model number:					SQ6.3SA3 (6.3ton four straight arm)
Max. Lifting Load (ton)					6.3 ton
Max. Lifting Moment(t.m)					15.12
Section type		pentagon			Revolving mechanism			rotating speed(r/min)			2
Boom number		4						Rotating range°			360(Random)
Length(m)		4.5-12.5			Leg			type			H
Max working radius(m)		12.03						Span(m)			2.28-5.0
Out of speed(m/s)		0.3			Hydraulic system			System pressure(mpa)			18
Amplitude range		1-70						Fuel tank capacity(L)			80
The speed of The arm angular (°/s)		5.1			Safety device			Switch alarm
Max. Lifting Height(m)		14			Vehicle Wt(kg)			2050
Hook lifting speed(m/min)		12.5			Installation space			900mm
Steel wire rope diameter (mm)		9.3			Match truck			Load above 5 tons truck
Steel wire rope length(m)		80
Lifting capacity comparison table
Working radius(m)	2.5		4.0	6.0		7.0	9.0		10.0	11.0		11.9
Rated load(kg)	6300		3000	1190		930	600		490	410		350
