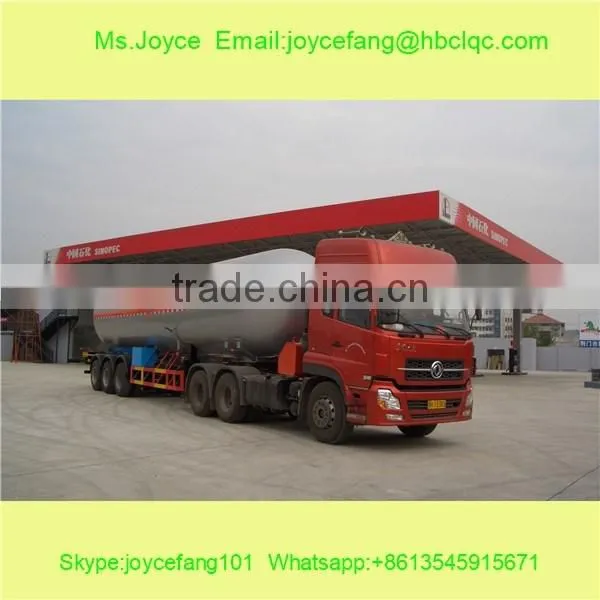

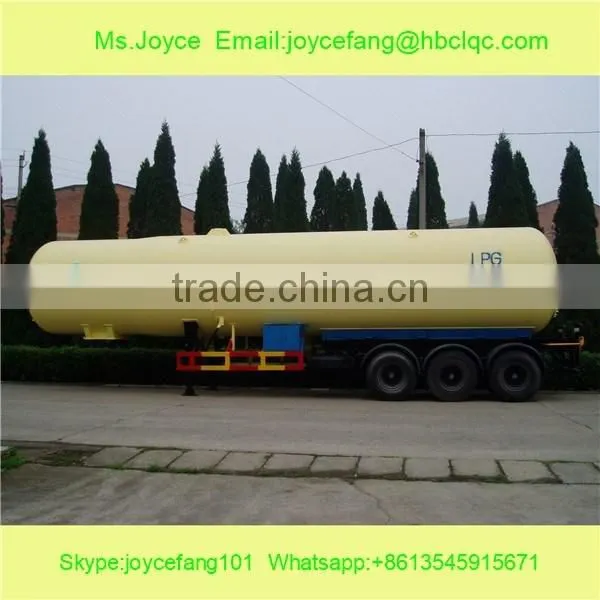

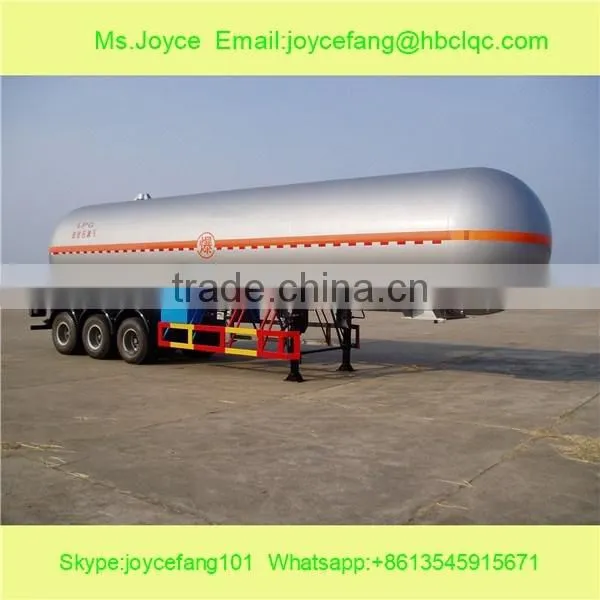

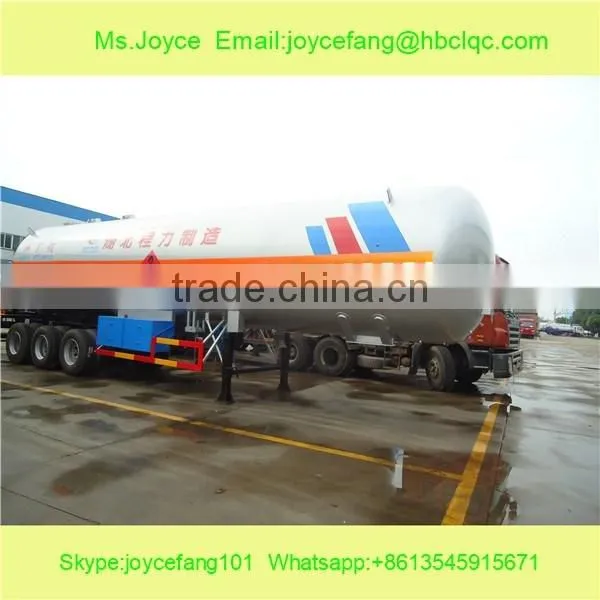

ASME Standard and China Standard LPG Tank Semi Trailer

Product

CLW LPG Tanker tri-axles trailer

Vehicle model

CLW9402GYQ

parameters

Overall dimensions

Length*width*height(mm)

13000*2500*3990

GVW (Total mass)

Kg

40000

Mass in working order

15300

Rated loading capacity

24700

Approach/Departure angle

°

-/25

Suspended F/R hanging

mm

-/1450

Wheel base

7160+1310+1310

F/R track base

-/1840/1840/1840

Body internal dimensions

mm

-

Several tire

12

Number of axles

3 BPW

Axle-load

kg

-/24000

Spring few films

-/7/7/7

Tire specification

12R22.5

Electric system

24v

Production cycle

35 days

Warranty

12 month, from the date of supply

Factory price

$

FOB/DAF/CNF/CIF

$

LPG Tanker Technical Specification

Technical Specification

Parameter

Subject

parameter

Tank

model

CLW9402GYQ

LPG Tank trailer

Liquid indicator

Model

UHZ-518C14

Overall dimensions

(length*diameter)mm

12850*2496

Version

Magnetic

Net weight

16000 Kg

Nominal pressure

2.5 Mpa

Vessel type

Scope of testing

50~2500 mm

Designing pressure

1.77 Mpa

precision

2.5

Working pressure

1.61 Mpa

Safety Valve

Model

A42F-2.5-80

Version

Built-in

Designing temperature

-19~50

Nominal pressure

2.5 Mpa

Loading material

Liquid petroleum/propane gas

Nominal radius

DN80

Corrosion margin

1.00 mm

Opening pressure

1.68-1.76 Mpa

Volume

58.8 m³

Re-seating pressure

≥0.8 Mpa opening pressure

Heat treatment

Bulk

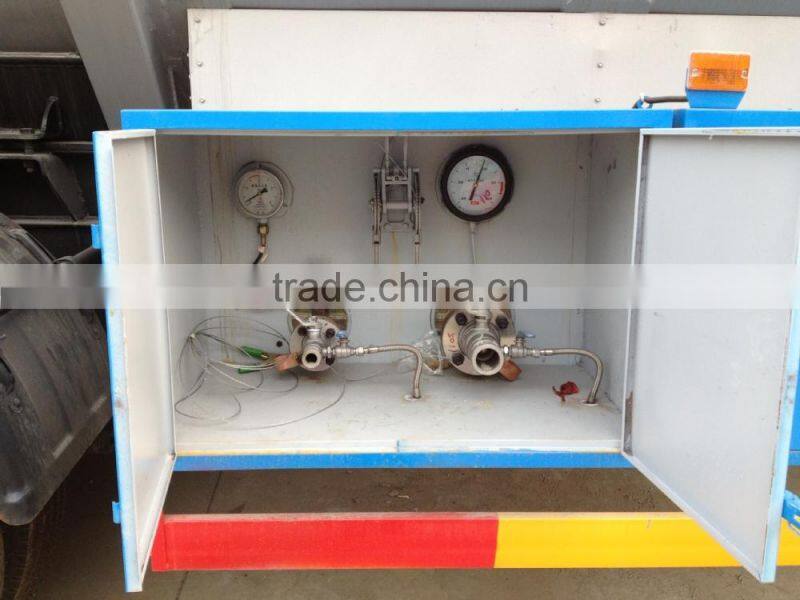

Handling System

Feed pipe

DN80

Filling factor

420 Kg/ m³

Drain pipe

DN80

Tanker & pressure parts

material

16 MnR

Admission port

DN50

Hydraulic test pressure

2.16 Mpa

Sewage outfall port

DN80

Gas tight test pressure

1.77 Mpa

Vent nozzle port

DN80

Cylinder thickness

15.56 mm

Standard

GB 150-1998 Pressure Vessels

Head thickness

15.53 mm

Service life

10 years

Safety regulation of pressure vessel

Closing time

≤10s

Melting close temperature

70±5
