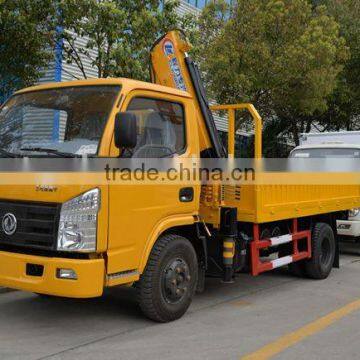

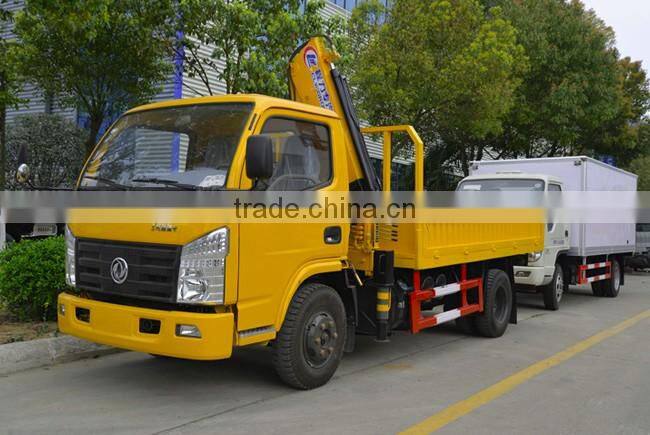

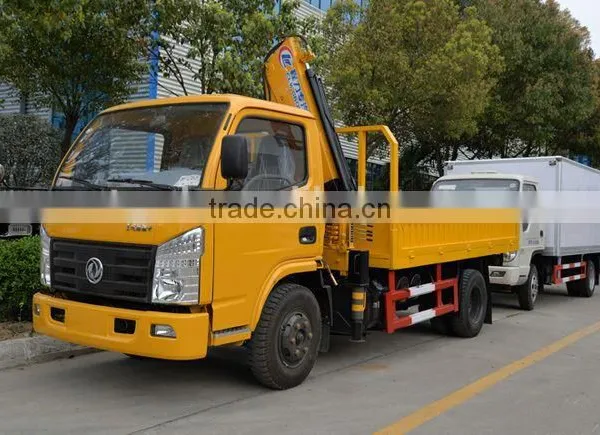

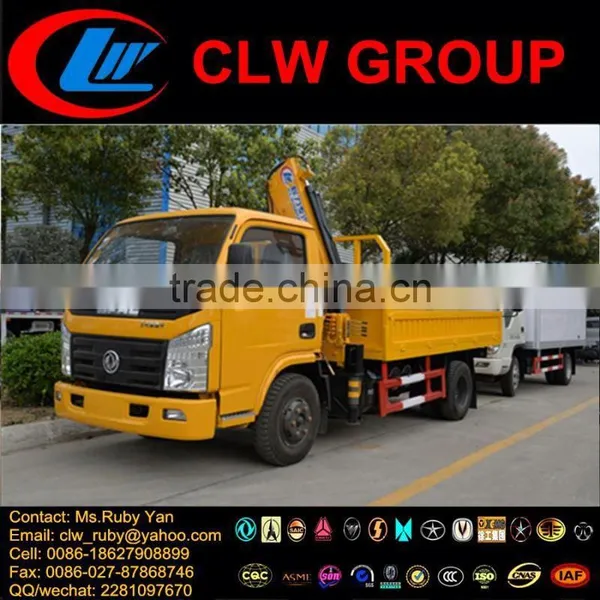

                         8T DongFeng Truck Mounted Crane

Product Description



                           8T DongFeng Truck Mounted Crane

Technical Prarameters
Overall
Vehicle name					8T DongFeng Truck mounted Crane
Vehicle model					CLW5160JSQT4
Overall dimensions					9000×2490×3600mm
GVW					15900kg
Loading capacity					7560kg
Curb weight					8145kg
Cargo body dimension					5800×2294×550mm
Chassis
Chassis model					EQ5160GKJ1
Chassis brand					DongFeng
Allowable passengers in cab					2
Wheel base					5100mm
F/R track base					1920/1860mm
Approach/departure angle					20/12degree
Exhaust/hp					5900/190ml/kw
Tire specification					10.00-20
Traction system					4*2
Number of axles					2pcs
Operation control  system					hydraulic control
Engine
Engine type					B190 33
Engine brand					DongFeng
Emission standard					Euro III
Transmission					8-speed
Crane
Cross section form		pentagon			Slewing mechanism		Rotation speed		2 r/min
No.of arm		4					Rotation angle		360 °
Length		4.2--12.6 m			Outrigger		Legs		Vertical support legs
Max working radius		12.5 m					Cross distance		2.3-5.4 m
Extend speed		0.25 m/s			Hydraulic system		Pressure		21 mpa
Amplitude range		1-70 °					Oil tank volume		120 L
Rise arm speed		5.3 m/s			Safety device				Switch alarm
Max lifting height		14.5 m			Self weight				3000 kg
Hook speed		8.33m/min			Installation space				1200 mm
Steel wire rope diameter		9.3mm			Steel wire rope length				100 m
Lifting Capacity Comparison Table
Max lifting weight		8000kg
Working radius (m)		2.5	4	5		6	7	9	11	12.5
Load capacity (kg)		8000	4500	3500		2550	1910	1260	910	850
Above parameters are only for reference. We can produce 1-200ton load trucks mounted crane, please feel free to contact me if you need. Thanks!

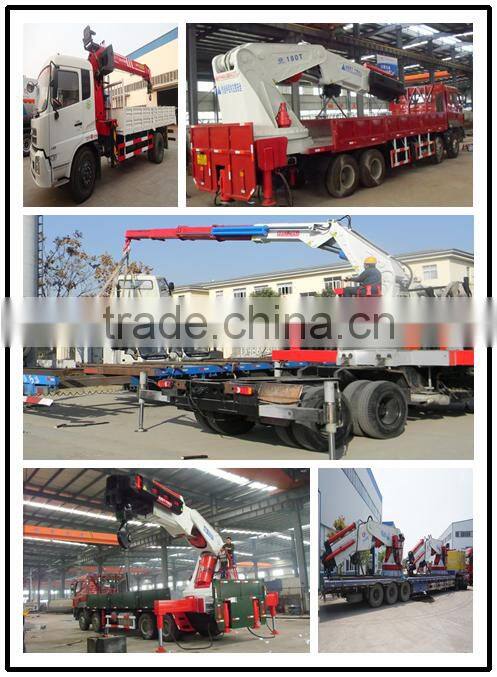

We can produce 1-200ton load trucks mounted crane,

totally fulfill all client' needs.

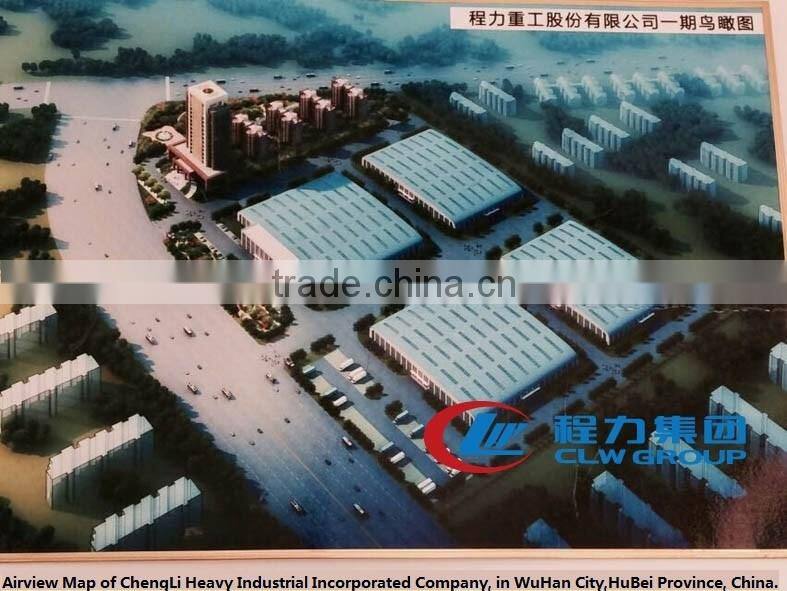

                                    COMPANY VIEW

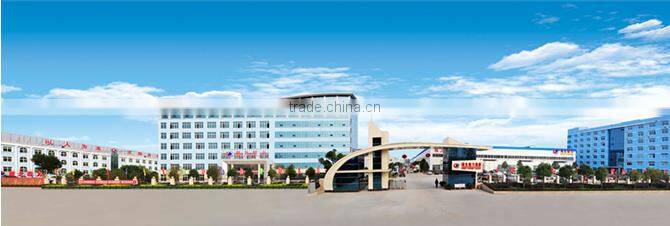

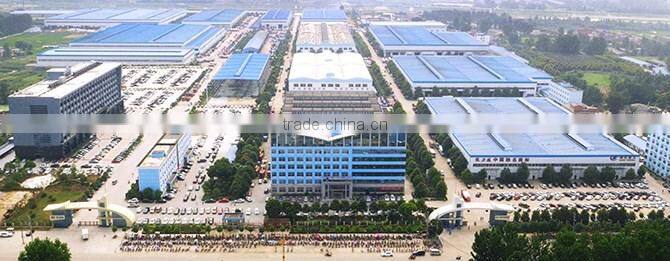

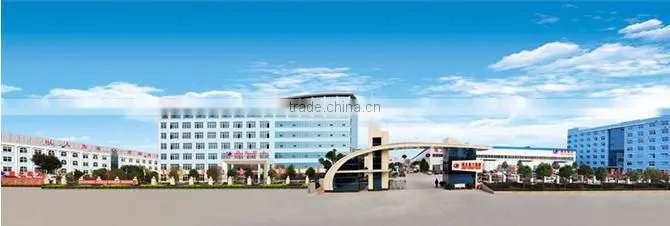

Headquarters of ChengLi Group., in SuiZhou City, the biggest production base of special commecial vehicle of China.
