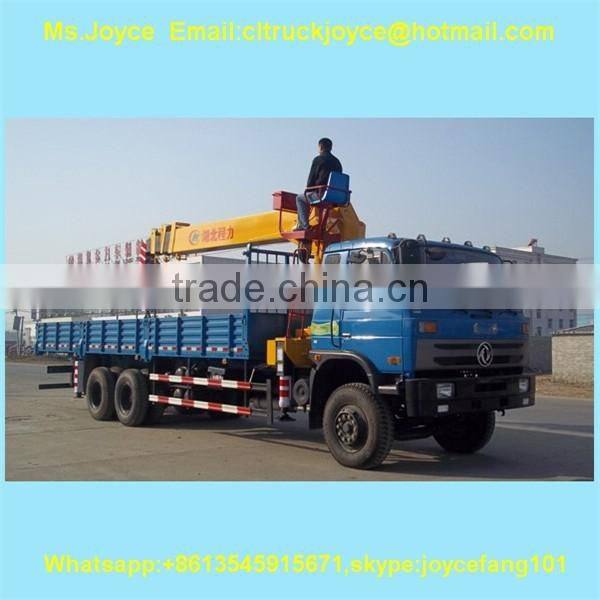

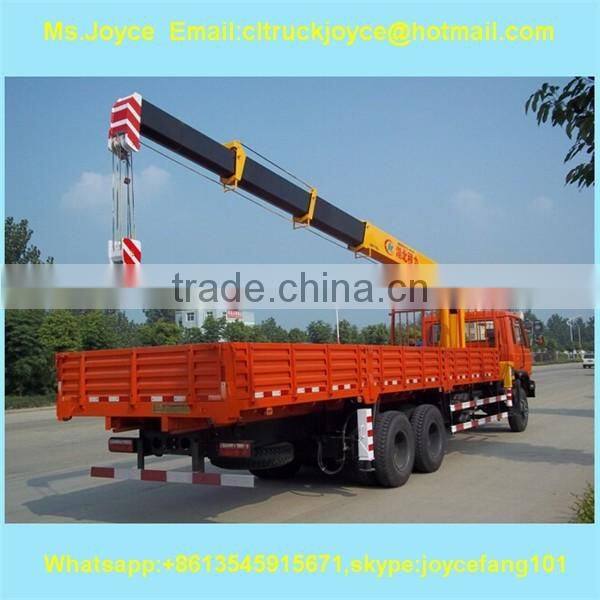

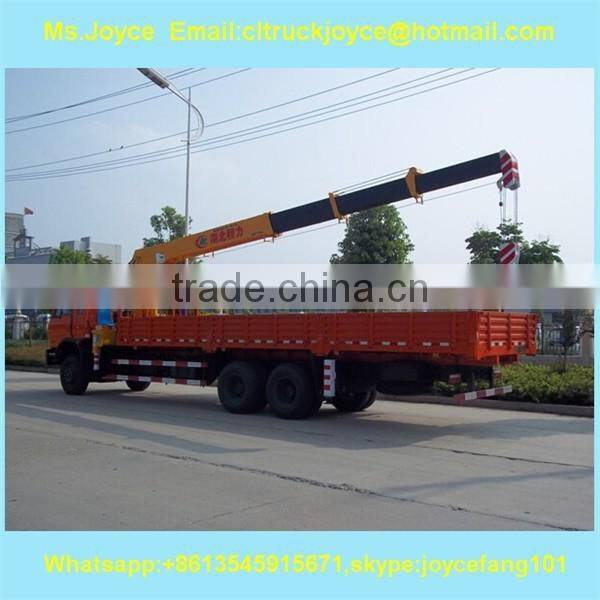

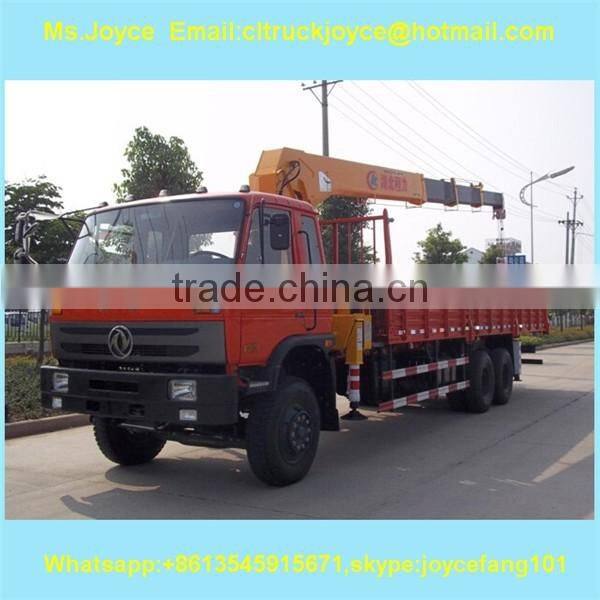

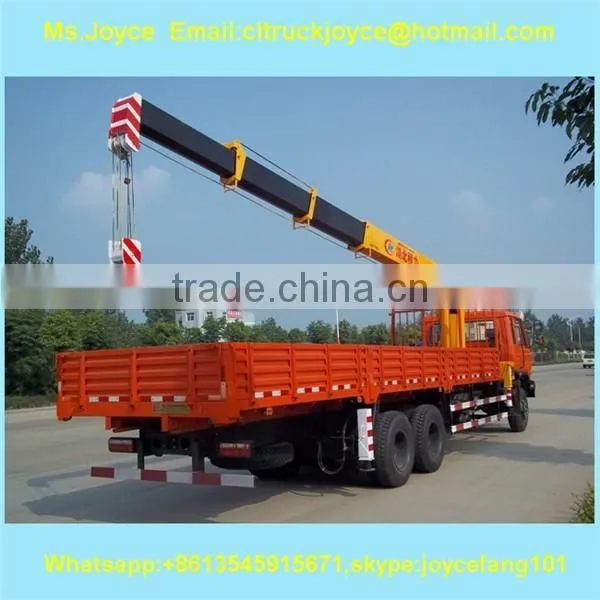

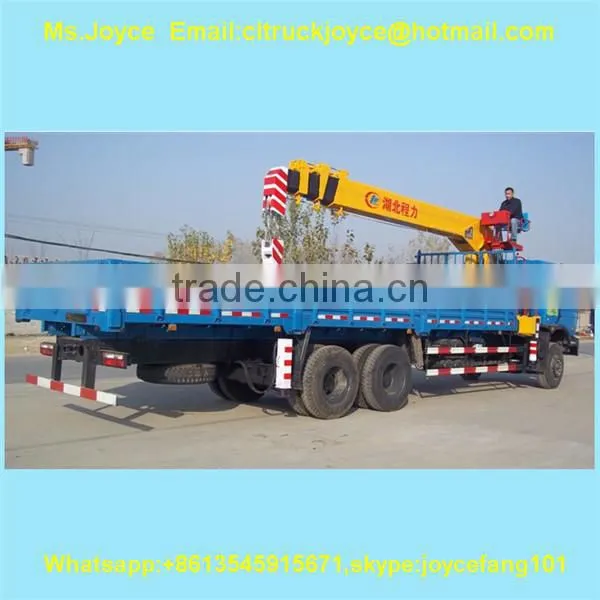

10Ton 12Ton Boom Truck, Straight Folding Boom Truck Manufacture

US$ 17,000 - 37,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Application:

construction,engineering,etc.

Rated Loading Capacity:

12000,12120

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application construction,engineering,etc.

Rated Loading Capacity 12000,12120

Rated Lifting Moment 30t.m

Max. Lifting Load 12 Ton

Max. Lifting Height 14m

Span 2.28-5.9

Place of Origin Hubei, China

Brand Name CLW

Model Number SQ12SA2

Certification ISO,BV

Warranty 12monthes

After-sales Service Provided Overseas third-party support available

10Ton 12Ton Boom Truck, Straight Folding Boom Truck Manufacture

Truck crane Lifting height :14m

Crane lifting capacity :12 ton

Boom truck brand : Dongfeng 6x4

Specification of 12 Ton crane truck :

Technical specification of crane(boom)
Model of crane		SQ12SA2 (12t three straight boom)
Max.loading capacity(t)	12 tons		Max.lifting moment(t.m)	30
Section form	pentagon		Gyration Institution	Gyration speed(r/min)	2
Arm number	3 arms(stretch 2 arms)			Gyration range°	360(any)
Length (m)	5.46-12.17		Leg	Type	H
ing radius(m)	12			Span(m)	2.28-5.9
Extending speed(m/s)	0.19		hydraulic system	System pressure(mpa)	21
Rangeability	1-72			Oil tank volume(L)	150
Arm angular velocity (°/s)	3.2		safety device	Overwind alarm
Max. Lifting height(m)	14		Self weight(kg)	3800
Lifting speed of hook(m/min)	8		installation space	1250mm
Diameter of wirerope(mm)	12		Matching the truck	Load above 20Tons
Length of wirerope(m)	110		Option: the rear legs,seat system,etc.

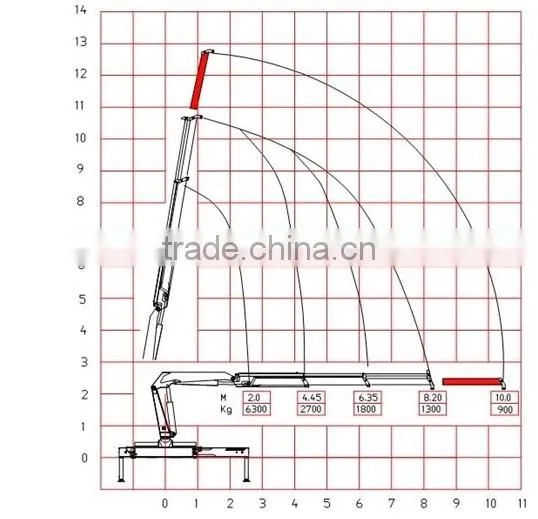

Lifting capacity table of 12ton crane :

Working radius(m)	2.5	3.5	4.5	5.5	6.5	7.5	8.5	9.5	10.5	11.7
Rated loading(kg)	12000	8370	6330	5130	4200	3410	2660	2110	1700	1300

Technical specification of crane truck
	Unit	12 Ton boom truck
Truck brand		Dongfeng
Drive system		Left hand drive
Overall dimension	mm	11945,1110025003850,3750
Cargo body dimension	mm	7700,8200,85002300800
GVW	Kg	25000
Mass in working order		12805,12685
Rated quality		12000,12120
Wheelbase	mm	5370+1300,5900+1300,5370+1350,5900+1350
Front /Rear overhang	mm	1245/3500, 1245/3185
App/departure angle	°	32/12, 32/13
Tire specification		10.00-20, 11.00-20,10.00R20,11.00R20
Number of axles		3
Number of tires		10
Number of Spring plate		8/13 ,8/12
Max Speed	KM/H	85
Engine model	B210 33
Engine manufacture	Dongfeng Cummins Engine Co.,Ltd
Displacement /Horsepower	Cc/HP	5900ml / 210hp
