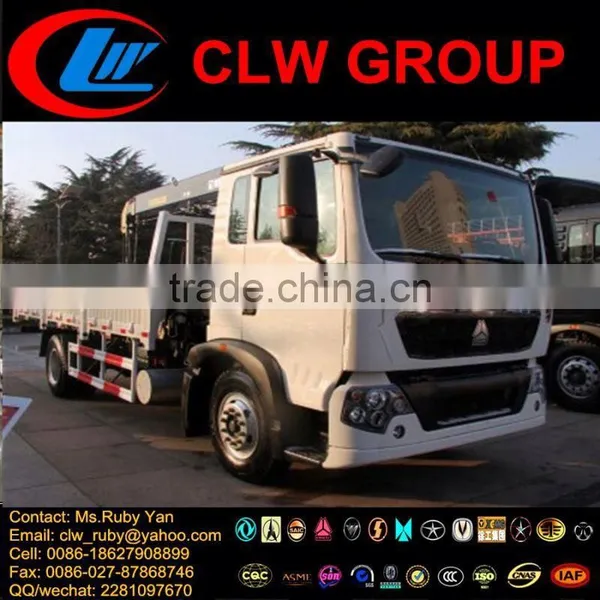

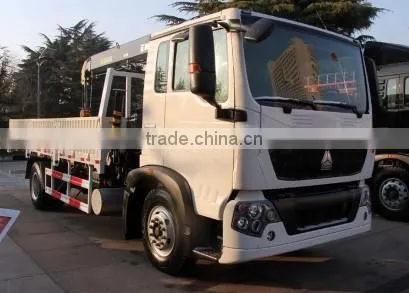

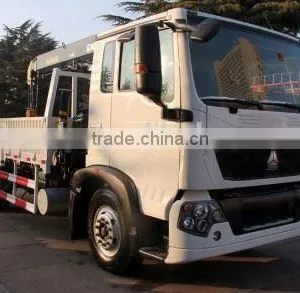

Howo 4*2 8ton Truck Mounted Crane
| Technical Prarameters | ||||||||||
| Overall | ||||||||||
| Vehicle name | CLW HOWO 4*2 8ton Truck Mounted Crane | |||||||||
| Overall dimensions | 8555*2500*3550mm | |||||||||
| GVW | 18750kg | |||||||||
| Loading capacity | 8000kg | |||||||||
| Curb weight | 10300kg | |||||||||
| Highese speed | 90km/h | |||||||||
| Chassis | ||||||||||
| Chassis model | ZZ1167M4617C | |||||||||
| Chassis brand | Sinotruk | |||||||||
| Cab seats | Double row 6 seats | |||||||||
| Wheel base | 4600mm | |||||||||
| F/R track base | 1958/1830mm | |||||||||
| Approach/departure angle | 18/14degree | |||||||||
| Exhaust/hp | 5900/190ml/kw | |||||||||
| Tire specification | 9.00-20 | |||||||||
| Traction system | 4*2 | |||||||||
| Number of axles | 2pcs | |||||||||
| Operation control system | hydraulic control | |||||||||
| Engine | ||||||||||
| Engine model | WD615.62 | |||||||||
| Engine brand | Sinotruk | |||||||||
| Engine type | Inline six cylinder engine; Inter-cooling; Water cooling | |||||||||
| Emission standard | EuroⅡ | |||||||||
| Power | 266HP | |||||||||
| Displacement | 9.726L | |||||||||
| Fuel | Diesel oil | |||||||||
| Transmission | 8-speed | |||||||||
| Crane | ||||||||||
| Cross section form | pentagon | Slewing mechanism | Rotation speed | 2 r/min | ||||||
| No.of arm | 4 | Rotation angle | 360 ° | |||||||
| Length | 4.2--12.6 m | Outrigger | Legs | Vertical support legs | ||||||
| Max working radius | 12.5 m | Cross distance | 2.3-5.4 m | |||||||
| Extend speed | 0.25 m/s | Hydraulic system | Pressure | 21 mpa | ||||||
| Amplitude range | 1-70 ° | Oil tank volume | 120 L | |||||||
| Rise arm speed | 5.3 m/s | Safety device | Switch alarm | |||||||
| Max lifting height | 14.5 m | Self weight | 3000 kg | |||||||
| Hook speed | 8.33m/min | Installation space | 1200 mm | |||||||
| Steel wire rope diameter | 9.3mm | Steel wire rope length | 100 m | |||||||
| Lifting Capacity Comparison Table | ||||||||||
| Max lifting weight | 8000kg | |||||||||
| Working radius (m) | 2.5 | 4 | 5 | 6 | 7 | 9 | 11 | 12.5 | ||
| Load capacity (kg) | 8000 | 4500 | 3500 | 2550 | 1910 | 1260 | 910 | 850 | ||
| Above parameters are only for reference. We can produce 1-200ton load crane trucks, please feel free to contact me if you need. Thanks! | ||||||||||
We can produce 1-200ton load trucks with crane,
totally fulfill all client' needs.
COMPANY VIEW
Headquarters of ChengLi Group., in SuiZhou City, the biggest production base of special commecial vehicle of China.
Work Shop
QUALIFICATION&STRENGTH
1. The total assets of CLW Group is 300,000,000 USD.
2. Our headquarter covers an area of more than 200 acres.
3. We have more than 8000 employees, of which more than 500 technical engineers,
more than 2000 technical workers.
4. Our annual production capacity is 100,000 sets of special vehicles.
5. We have more than 2000 sets of large production equipment, more than 200 sets
of testing equipment, some of which the machining centers and production lines are
in the world leading level.
6. We have more than 100 independent innovation products obtained national patent,
the vehicle type sewage purification device, gas lighting fire trucks and other projects
to get third-prize progress of science and technology.
7. More than 840 CLW brand products are included in the national bulletin directory.
8. Certifications:
---ISO9001-2008 ISO 14001 quality management, environmental management
---OHSAS18001 occupation health and safety management system certification
---3C compulsory certification
---GJB9001B 2009 certification and confidentiality certification (three countries)
---Environmental protection and energy conservation certification
---Car exemption certification
---ASME certification
--The EU ADR certification agreement
---To obtain special vehicle production license: A2, C2, C3 pressure vessel,
truck crane, truck crane, fire trucks
---National weaponry research and production qualification
--- Packing: Nude, Covered with wax.
--- Shipping: small type can be shipped in 20"GP,40"GP,or 40"HQ, big type can be shipped
in bulk ship or RO-ROshipping, or according to your requirement.
--- Port: Shanghai or any port in China
--- Delivery: within 15 days
