8 tons telescopic boom truck mounted crane 7 ton truck with crane for sale
Truck crane is one of our main products,which is also named hydraulic truck crane, crane, mobile crane, truck mounted crane, lorry truck, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane, derrick cargo truck and so on. We have straight arm and floding arm truck crane with different specifications, models and different loading capacity from 2T-25T.
16 ton truck mounted crane is Using well-known hydraulic pump system can achieve rapid take-off and landing, high efficiency, energy saving. It has a flexible, user-friendly, efficient work, safe, reliable and credible, and other advantages. It is widely used in city construction, coal mining engineering, gardens Greening for loading and unloading, installation of lifting operations and transporting the basic construction materials and so on.
1.high quality and factory price 8 tons telescopic boom truck mounted crane 7 ton truck with crane for sale
2.With ISO 3C and BV certification 8 tons telescopic boom truck mounted crane 7 ton truck with crane for sale
8 tons telescopic boom truck mounted crane 7 ton truck with crane
| Chassis Model /Manufacturer | NKR77PLPACJAY | |
| cab | optional one raw or double raw cab | |
| With air-condition | ||
| Overall Dimension | L × W × H | 6730×1910×2750mm |
| Total Mass | 7300Kg | |
| Kerb Weight | 3300Kg | |
| front overhang/rear overhang | 1015/1890 | |
| Engine | Model/Rated Power | 4KH1-TC / 96kw |
| Emission Standard | Euro 3 | |
| driving type | 4*2 | |
| Steering Type | Powering steering | |
| Type & Size of Tyre | 7.00-16 | |
| Tread( front/rear) | 1504/1245 | |
| Wheel Base | 3815mm | |
| Number of leaf spring of suspension | 8/6+5 | |
| Max Speed | 95Km/h | |
| Model of Crane | SQ3.2SK1Q | SQ3.2SK2Q |
| Max. Lifting capacity | 3200 Kg | 3200 Kg |
| Max. Lifting height | 6.8m | 9.5m |
| Max.Lifting Moment | 6.72 T.m | 6.72 T.m |
| working radius | 5.5 m/kg | 7.5 m/kg |
| Recommend Power | 14Kw | 14Kw |
| Max. oil flow of hydraulic system | 25 L/min | 25 L/min |
| ure of hydraulic system | 20Mpa | 20Mpa |
| oil tank capacity | 30 L | 30 L |
| crane weight | 1105 kg | 1229 kg |
| installation space | 850 Mm | 850 Mm |
| rotation angle | All rotation,360° | All rotation,360° |
This parameter is just for your referance, we can produce different specification truck cranes according to your demands;For more information please leave a message, Hubei Chengli Special Automobile Co.,Ltd truck crane have a wide range of models optional to meet customer demand.welcome to visit our company.
1. We can offer 2T- 30T crane, brand: CLW
2. The chassis is optional: 4x2, 6x4, 8x4, 6x2 DONGFENG,SINOTRUK, UD, FOTON,CAMC,FAW.....

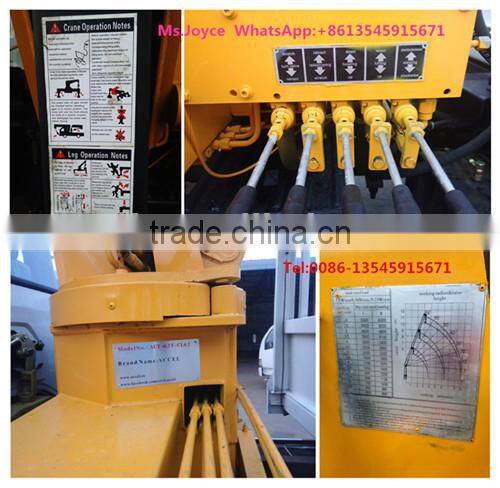

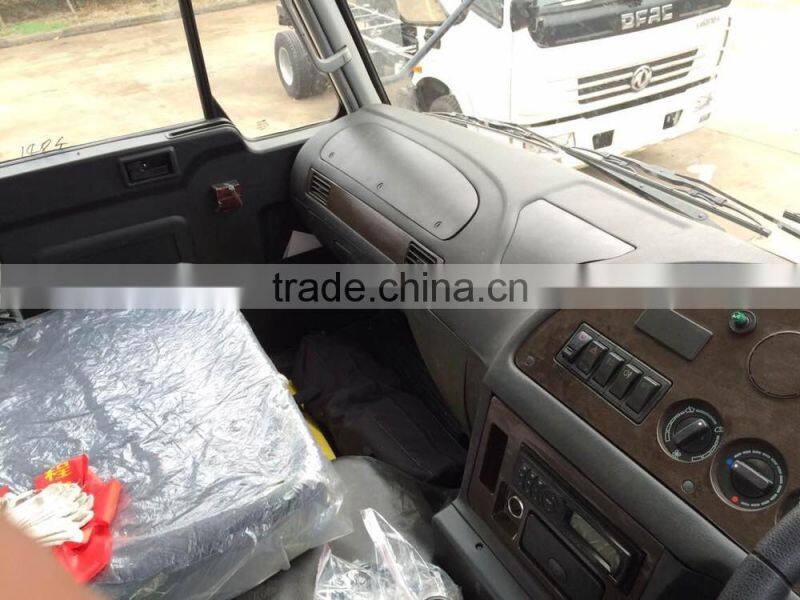

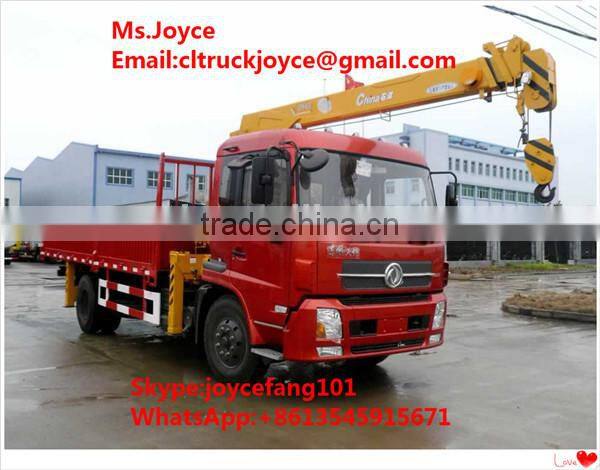

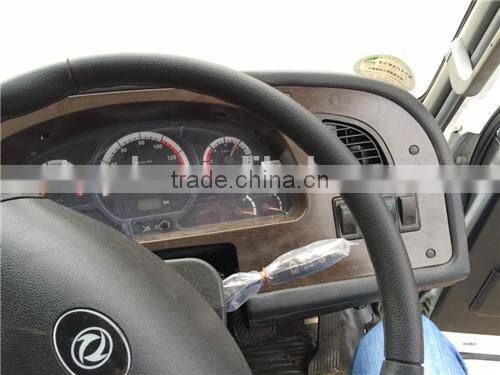

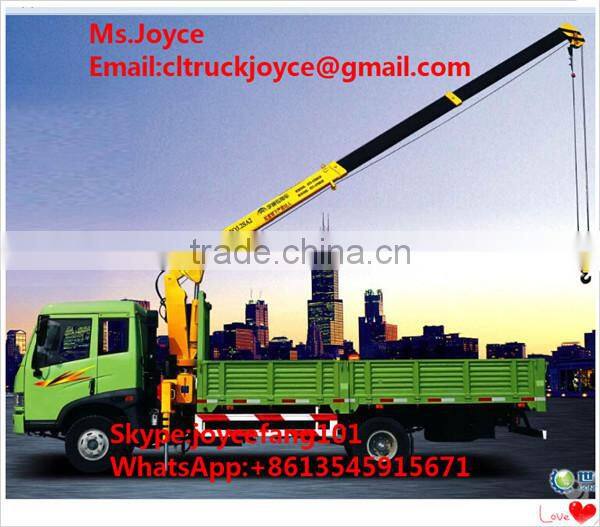

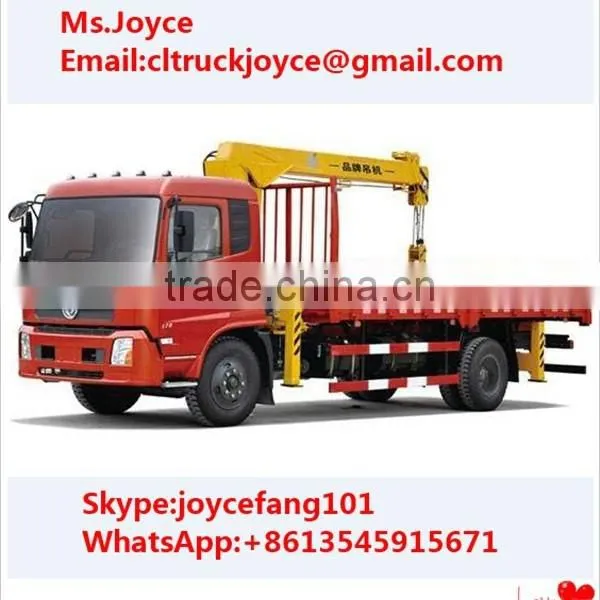

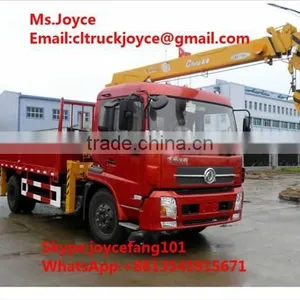

Truck Mounted Crane photo :
