Home > Transportation > Trailer > Truck Trailer > 38m3 Edible Oil Semi Trailer Truck 3 Axles

38m3 Edible Oil Semi Trailer Truck 3 Axles

Chengli Special Automobile Co., Ltd.

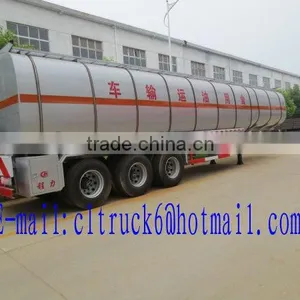

38m3 Edible Oil Semi Trailer Truck 3 Axles photo-1

US$ 10,000 - 48,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, 3C

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Semi-Trailer

Material Steel

Certification Other, 3C

Size 12990*2500*3850

OEM No. CLW9400

Max Payload 29000

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW9400GSY

38m3 Edible Oil Semi Trailer Truck 3 Axles

Edible Oil Semi Trailer Truck is also called semitrailer transport truck,is widely used in transporting kinds of van or tank container or tanker. It has large loading quality , solid ,etc features.

Main Technical Parameterof 38m3 Edible Oil Semi Trailer Truck 3 Axles

Product Model	CLW Edible Oil Semi Trailer Truck	*Overall Dimension(LWH)(mm)*	12990×2500×3850
Tank Volume(m³)	38	Tank Dimension(mm)	Front-end(3700×2480×1800) rear-end(8900×2480×2100)
Gross weight (kg)	40000	Approach/ departure angle (° )	-/20
Payload(kg)	29000	Front/ rear suspension(mm)	-/1440
Curb weight(kg)	11000	Leaf Spring number:	-/8/8/8,-/4/4/4
Axle number	3	Front/Rear axle load(Kg)	-/24000 (three axles combined)
Wheelbase(mm)	7200+1350+1350	Rear tread(mm)	1840/1840/1840
Tire size	11.00-20 12PR,11.00R20 12PR,12R22.5 12PR	Tire No:	12 with a spare tire
Warranty	12 months, from the date of supply
Remarks	1. 100mm thickness Insulation layer , optional material: stainless steel
	2. The distance from the floor to rear protective is 520mm, protect material: Q235 carbon steel. With ABS
	3. This semi trailer truck mainly used in transport edible oil or cooking oil.

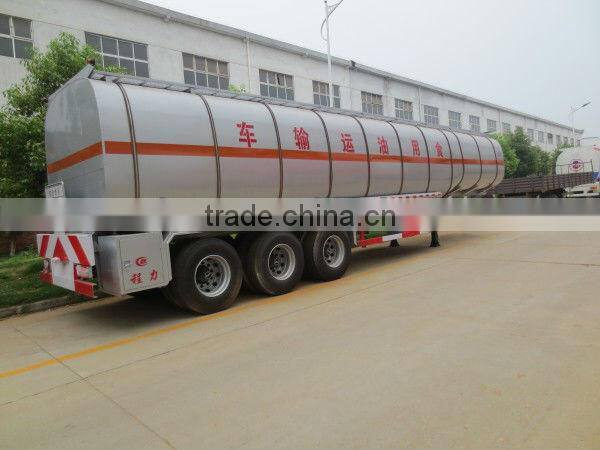

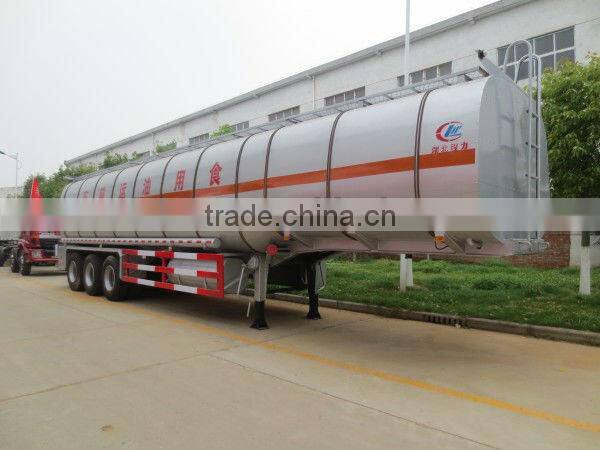

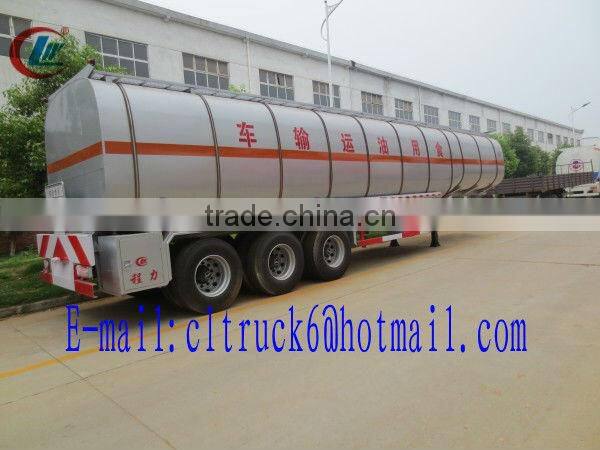

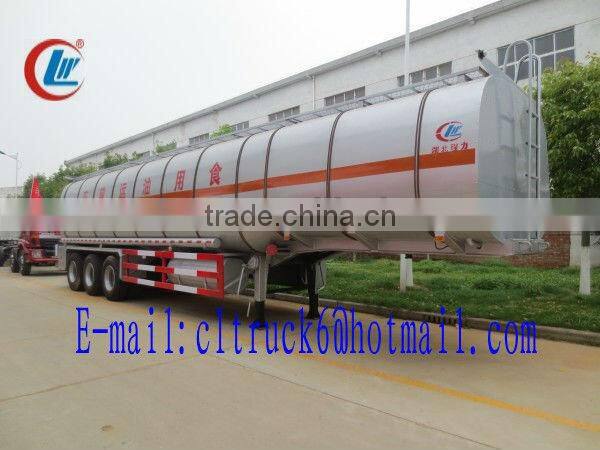

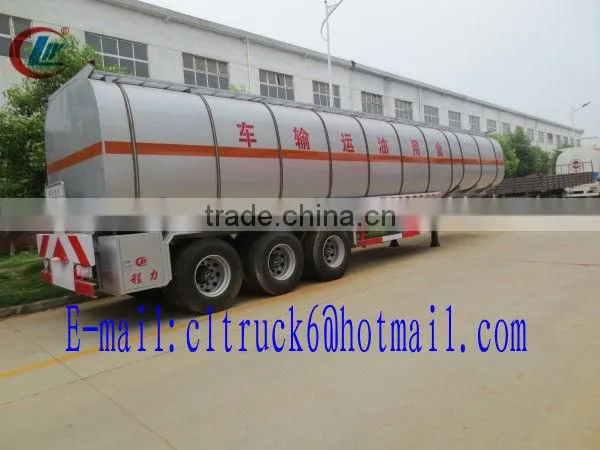

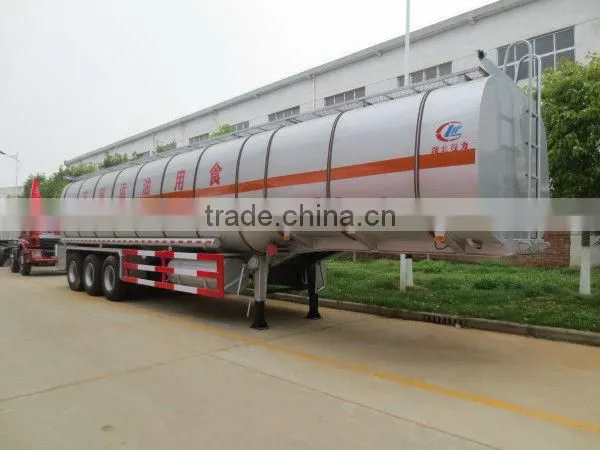

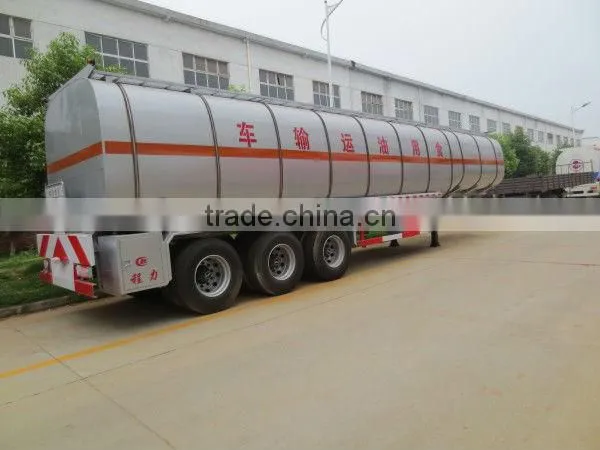

This Edible Oil Semi Trailer Truck show as following:

Breif Introduction of Company:

ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.

Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.

We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.

ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.

Our certificates;

Production Equipments:

If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
