CLW 3 axle Aluminum Alloy Oil Trailer 50000 liter with Shacman Tractor
Aluminum Alloy Oil Trailer is also called cargo semitrailer ,mobile transport truck,tanker truck semitrailer,etc, widely used in transporting and discharging gasline, diesel and other fuel product. We can supply tanker ranged from 4000L to 45000L,Tanker Semitrailer ranged from 30000L to 6000L. Experience of ten years of manufacturing pressure vessel ensure reliable quality. Use this type of semitrailer can improve transport efficiency 30-50%, reduce cost 30% -40%, reduce fuel consumption 20%- 30%.
Main Parameter of CLW 3 axle Aluminum Alloy Oil Trailer 50000 liter with Shacman Tractor
Whole truck main technical parameter | |||
Product Model | CLW Aluminum Alloy Oil Trailer | Overall Dimension(L*W*H)(mm) | 12980×2500×3820 |
Tank Volume(L) | 50000 | Tank Dimension(mm) | Front-end( 4200×2480×1800 ) rear-end( 8300×2480×2000 ) |
Payload(kg) | Approx 42500 | Front/ rear suspension(mm) | -/1870 |
Curb weight(kg) | 8500 | Leaf Spring number: | -/8/8/8, -/10/10/10 |
Axle number | 3 | Front/Rear axle load(Kg) | -/39000 (three-axis combined) |
Wheelbase(mm) | 7200+1310+1310 | Rear tread(mm) | 1840/1840/1840 |
Tire size | 11.00R20 12PR or 12R22.5 | Number of Tire: | 12 |
Warranty | 12 months, from the date of supply | ||
Remarks | 1. Protective material: carbon steel, storage medium: gasoline or diesel | ||
2. Use the tractor equipped with speed limit device better | |||
3. Tank material: 6mm aluminum alloy, | |||
4. Equipped with Fuwa or BPW spring suspension or air suspension, 13 ton axles, 28 ton manual outrigger, 90mm king pin | |||
Main Parameter of 430hp 6*4 Shacman Tractor
Main Technical Parameter | |||
Product Name | SHACMAN Tractor | Curb Weight (kg) | 9400 |
Overall Dimension(mm) | 6825*2490*3204 | Total Mass of Quasi-trailer(Kg) | 40000-55000 |
Wheelbase (mm) | 3175+1400 | Number of Axles | 3 |
F/R Suspension(mm) | 1525/725 | Max Speed(km/h) | 99 |
Cab Allowed Persons | 2 or 3 | Cab type | F3000 Long High proof, single sleeper with air conditioning |
Chassis Technical Parameter | |||
Chassis Model | SX4257 | Chassis Manufacturer | SHANXi Group |
Gear Box | FAST 12 speed forward and 1 reverse | Transmission type | Manual |
Steering Type | LHD(ZF Power steering) | Brake System | Air brake |
Front/rear axle | STR7.5ton/ Man 13ton | Number of Tire | 10 with a spare |
Drive Type | 6*4 | Tire Spec. | 12.00-20(vacuum tire) |
Engine Technical Parameter | |||
Engine Model | WP12.430N | Engine Brand | Waichai Power Co.,Ltd |
Fuel Type | Diesel | Emission Standard | Euro 3 |
Displacement ( ml ) | 11596 | Power (KW) | 316(430hp) |
Remark | Equipped with 50# or 90# saddle, 400Liter Aluminum Alloyfuel tank,ABS | ||

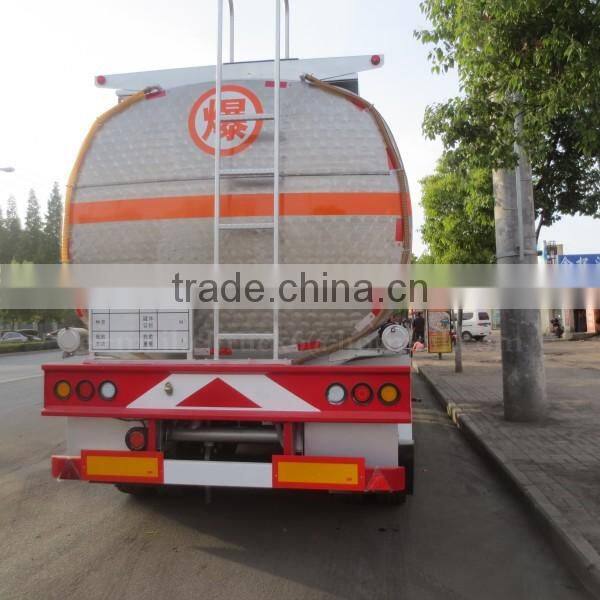

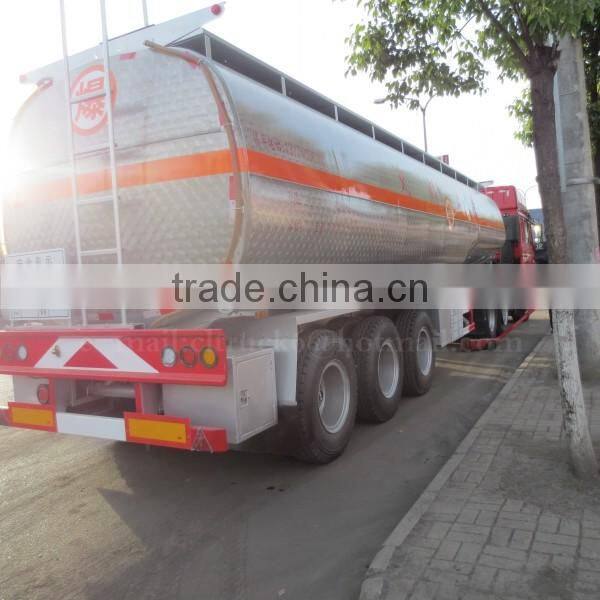

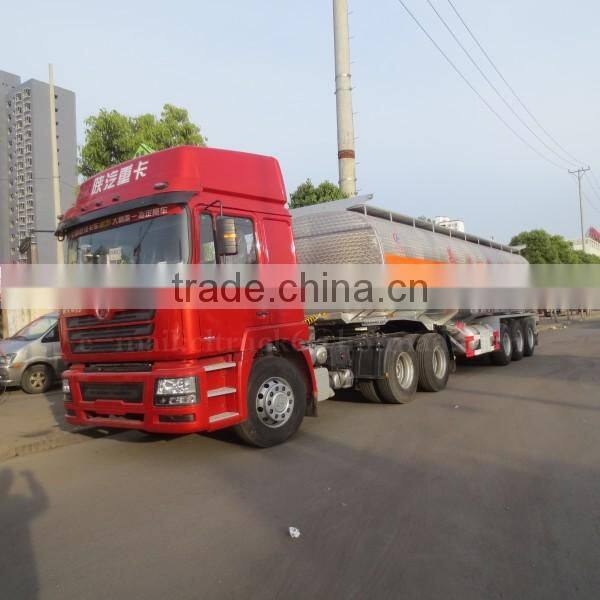

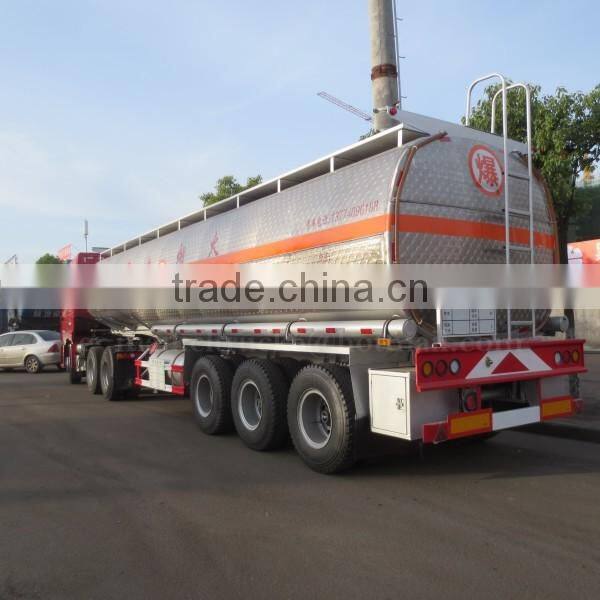

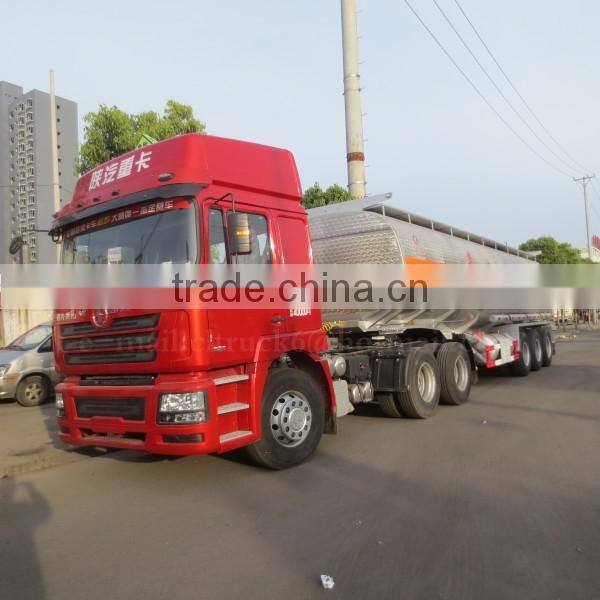

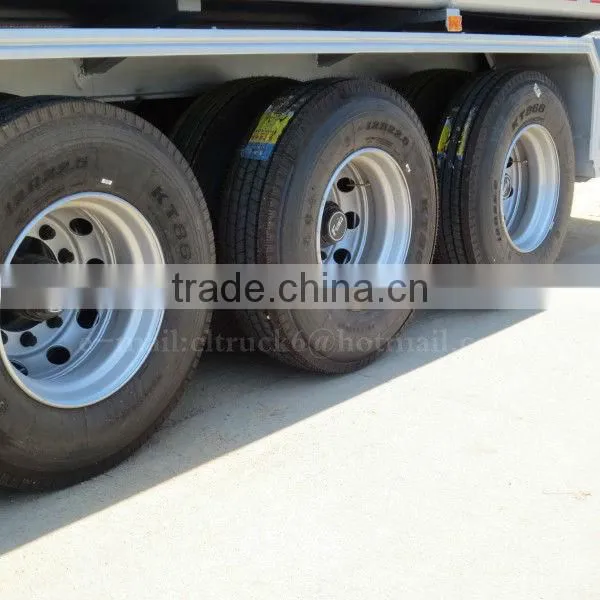

Multi-faceted Show of CLW 3 axle Aluminum Alloy Oil Trailer 50000 liter with Shacman Tractor :
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our certificates;
Production Equipments:
Oil tank trailer truck series:
Contact Information:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
