CLW 3 axles 40 Foot Container skeleton trailer
Container skeleton trailer is widely used in transporting kinds of tank container or container . It have high effienciency, low cost, loading capacity large, etc features.
Main Technical parameter of CLW 3 axles 40 Foot Container skeleton trailer
Main Technical Parameter | |||
Product Name | CLW Container skeleton trailer
| Overall Dimension(L*W*H)(mm) | 12400×2480×1510 |
Curb weight(kg) | 6500 | Axle number | 3 |
Approach/ departure angle (° ) | -/13.5 | Front/ rear suspension(mm) | -/1560 |
Leaf Spring number: | -/8/8/8 | Front/Rear axle load(Kg) | -/39000(three axles combined) |
Wheelbase(mm) | 7470+1360+1360 | Rear tread(mm) | 1840/1840/1840 |
Tire size | 11.00R20 12PR | Tire No: | 12 |
Warranty | 12 months, from the date of supply | ||
Remarks | 1. Material: Q235 carbon steel, can optional other type | ||
2.Equipped with 13ton axle, two spare tire carrier, one tool box, 90# king kin, with container locks, optional ABS, water tank, etc | |||
3. Protect material: Q235 carbon steel. | |||
2. This semi-trailer is mainly used in transport 40 foot tank container or containers | |||

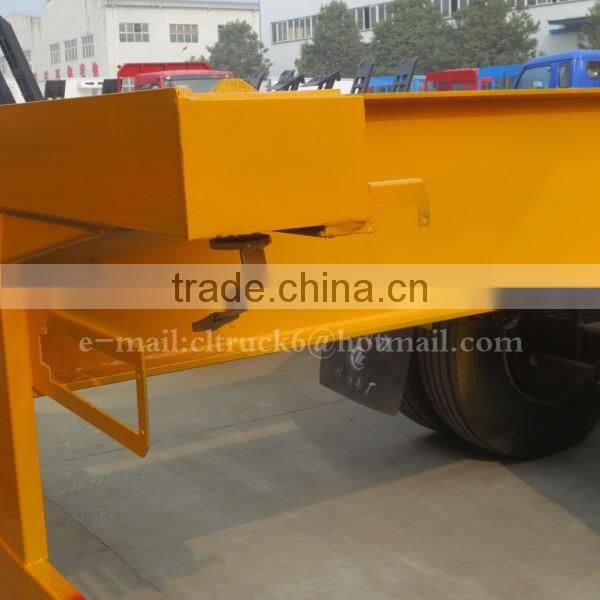

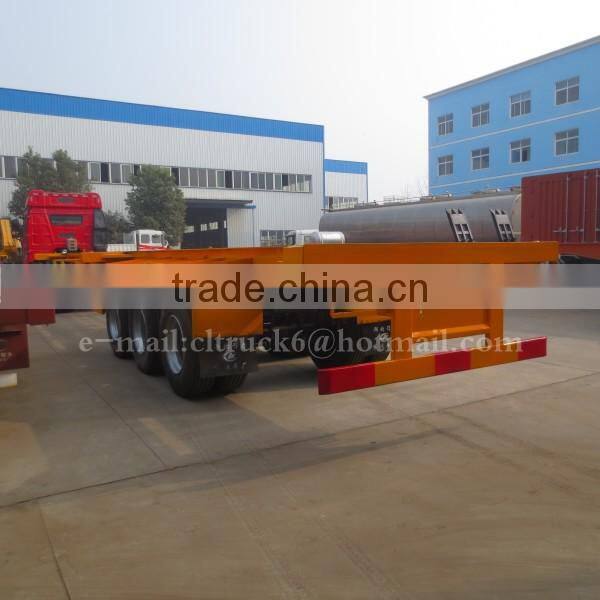

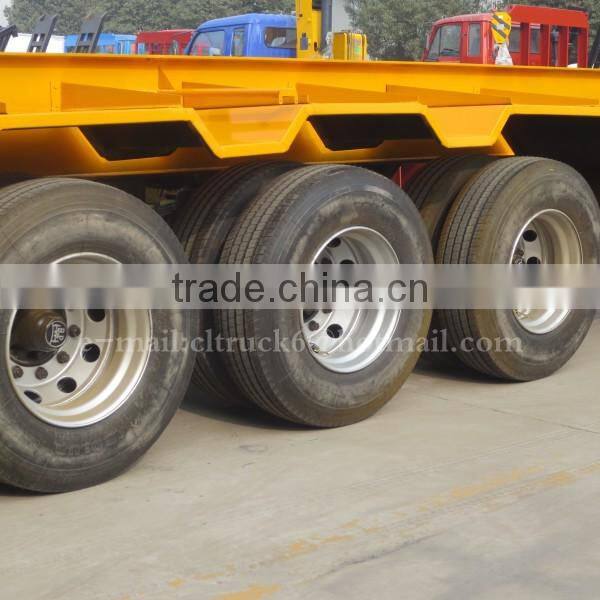

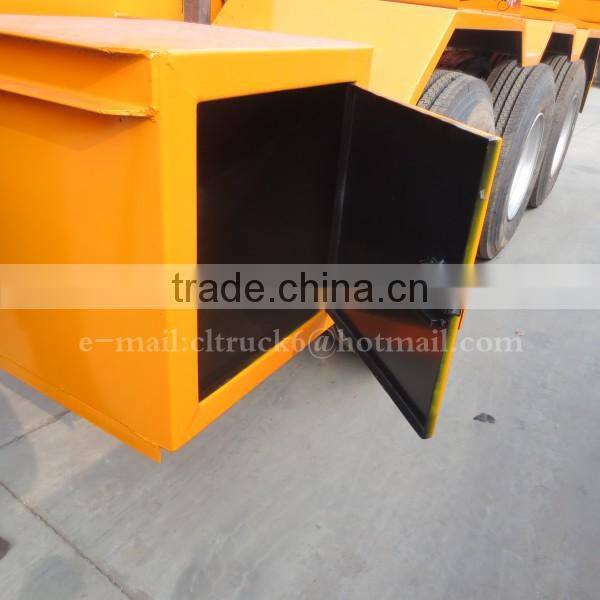

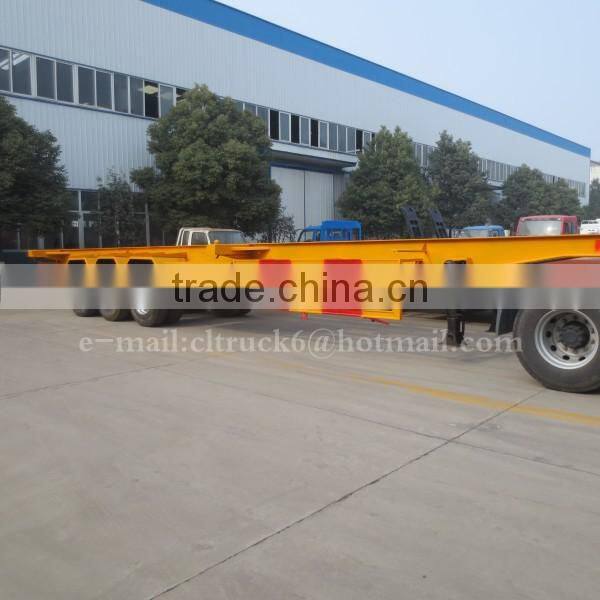

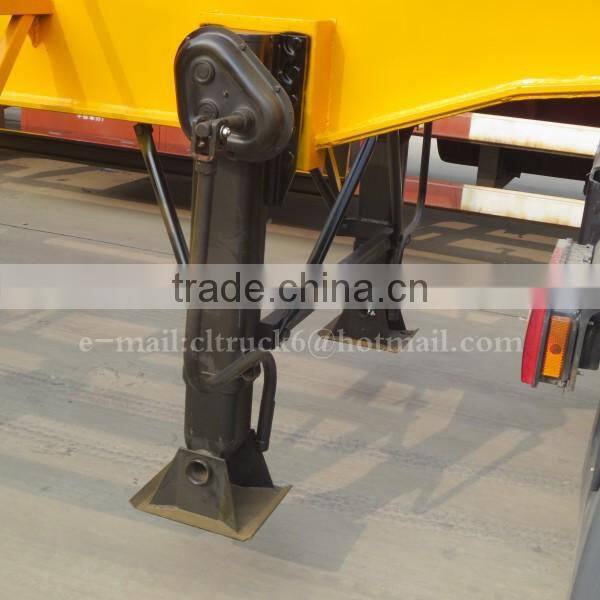

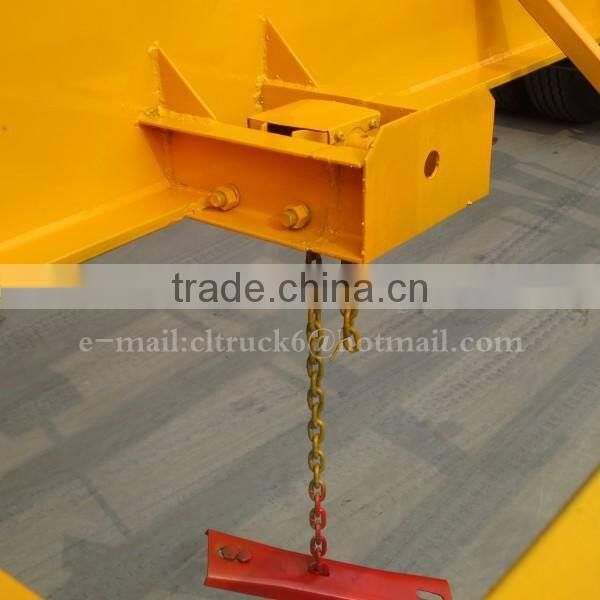

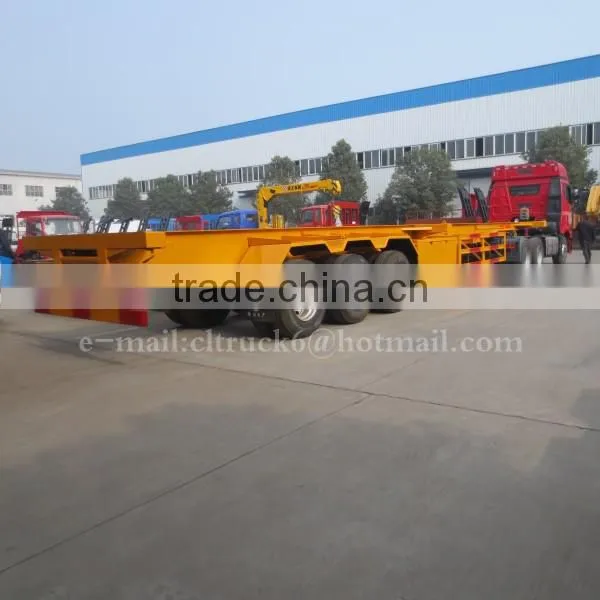

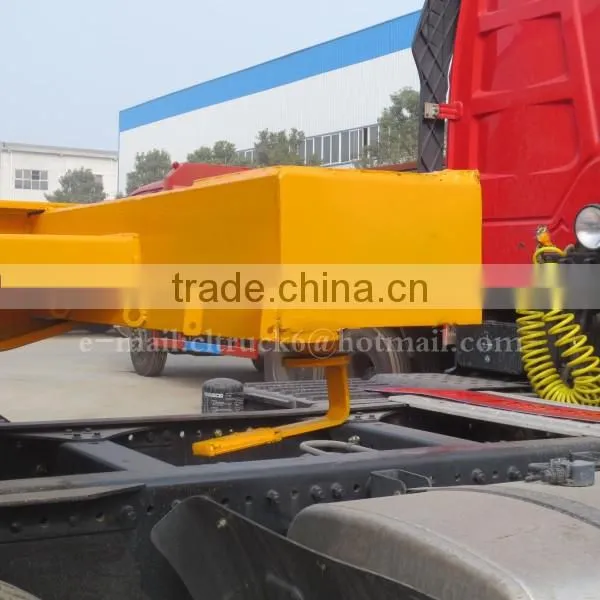

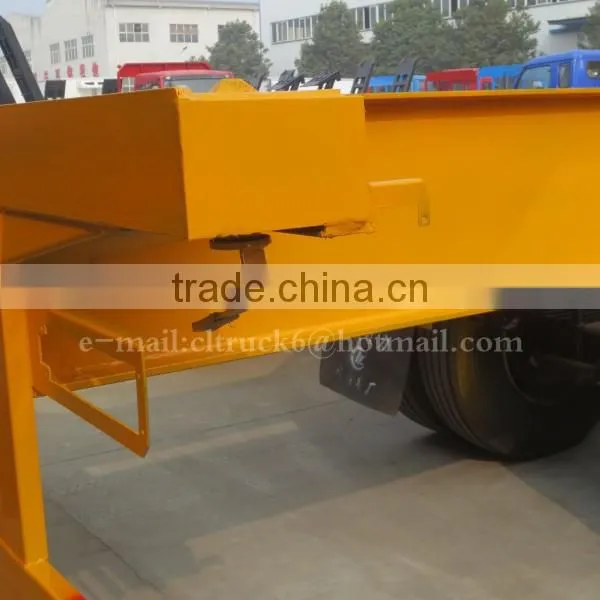

Multi-faceted picture show of CLW 3 axles 40 Foot Container skeleton trailer
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our certificates;
Production Equipments:
Contact Information:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
