sewer suction with cleaning truck
- 500 Set / Sets per Month
- any port in China
- T/T L/C D/P D/A Credit Card PayPal
- Multi-function dust suppression car spray car site dust cleaning road
- Environmental spray dust removal vehicle multi-functional road cleaning greening water spreader
- Kellywind small Dorica -5 square sprinkler Four Wheel Sprinkler
- Municipal sanitation cleaning car dust fog car sprinkler spray car
- Multi-functional sprinkler Sprinkler Bowser Spray Cleaning Transport and Delivery Truck
- The car mounted hedge trimmer adopts a Jiangling chassis
Product Details
Transmission Type: | Manual | Condition: | New | Emission Standard: | Euro 3 |
Fuel Type: | Diesel | Tank Volume: | 13000 | Place of Origin: | Hubei, China |
Brand Name: | CLW | Model Number: | EQ5253GFJ2 | Horsepower: | 240 |
Gross Vehicle Weight: | 24700 |
Product Description

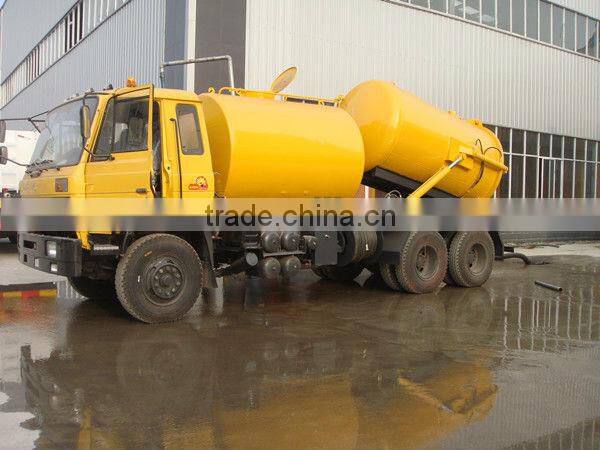

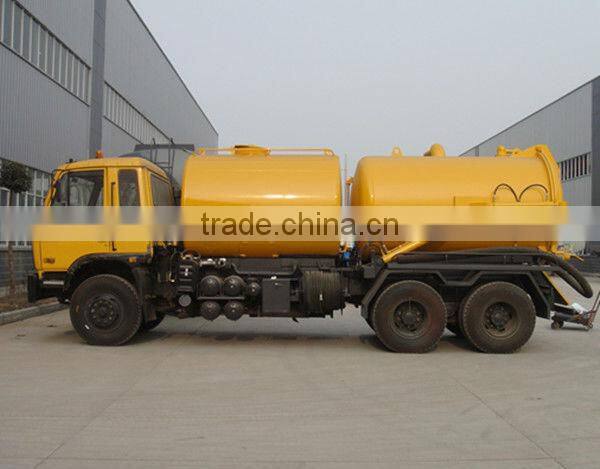

Sewer Vacuum Suction with Jet Cleaning Truck
Sewer vacuum with jet cleaning truck is a dual-function truck of sewer vacuum suction and high pressure cleaning. It mainly used for suction, septic tank and sludge from drains,
transportation and discharge of sewage from septic tank and sludge from drains.And also used for clean the drainage on the city underground sewers,the industrial pipes, walls and furthermore acts as a sprinkling.Moreover, it can be used to transport water, flush the equipment.
Basic Equipment:
PTO, Vacuum Pump, High Pressure Pump, Hydraulic Slave, Gear Pump,Hydraulic Cylinders,Multi-way valve, Pressure Gauge,Water-gas Seperator , Oil-gas Seperator, Level Inspection Window, Suction Hose, Hose Real,etc.
[Main Technical Parameters] | |||
Product Name | Sewer Suction with Jet Cleaning Truck | Tank Capacity(m3) | 13.0 |
Gross Vehicle Weight(Kg) | 24700 | Curb Weight(Kg) | 8040 |
Cab Allowed Persons | 3 | Steering Wheel | LHD |
Appr/Dep Angle(°) | 28/15 | F/R Suspension(mm) | 1245/2705 |
Axle No. | 3 | Wheelbase(mm) | 4350+1300,4750+1300 |
Axle Load(Kg) | 6700/18000(Parallel Installed) | Max Speed(Km/h) | 85 |
Others | 1. There are one sewage tank and one clean water tank. 2. Equipped with Italy high pressure pump and Spain Vacuum Pump. 3. Tank material is high quality carbon steel and the thickness is 6mm | ||
[Chassis Technical Parameters] | |||
Chassis Model | EQ5253GFJ2 | Chassis Brand | Dongfeng |
Appr/Dep Angle(°) | 28/15 | Tyre No. | 10 |
Spring Leaf No. | 9/10 | Tyre Specification | 10.00-20 |
Front Track(mm) | 1940 | Rear Track(mm) | 1860/1860 |
Fuel Type | Diesel | Emission Standard | EuroⅢ |
Engine Model | YC6A240-33 | Engine Brand | YUCHAI |
Power(kw) | 177 | Displacement(ml) | 7255 |
Multi-view Pictures:
Cab Control Valve
Multi-way Control Valve
Pressure Gauge
Power-Take-Off
We, Hubei Chengli Special Automobile Co.,Ltd, as a leading truck manufacturer in China, can customize any special vehicle you are interested in. If you want to know more information, please feel free to contact me by call +86-13872889770 or write to exportingamie at hotmail dot com
Also, welcome to visit our factory, we will provide you with the best products.
