DONGFENG 4*2 6ton Cleaning Suction Sewage Truck
6ton Cleaning Suction Sewage Truck is mainly used in sucking sewage, watering,removing snow, etc, is one kind of multi-fuction truck. It have many good features:self-priming, self-discharging, dump, sprinkling, removing snow, etc function.
Product Description;
1. Adopt DONGFENG 4*2 chassis, water tank:3m3, sewage suction tank:3m3;
2. Cleaning, suction sewage , with gasoline moter, sprinkling
3. Basic equipment: inspect fecal window, gravity mouth, cleaning apparatus, fecal suction pipe, oil-water separators, overflow valve Fecal suction gun, special vacuum pump(rating rotate speed=1400r/m, min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, steering:clockwise)
4. Main Features: self-priming, self-discharging, high efficiency,Time for full suction<5min
5. Tank material optional:carbon steel, stainless steel, epoxy resin anticorrosive processing(in order to contain partial chemical sewage or industrial wastewater).
Technical Parameter of DONGFENG 4*2 6ton Cleaning Suction Sewage Truck:
Vehicle Main Dimensions |
Cab type |
DONGFENG flat proof, single row, air conditioning |
Overall dimension(L×W×H)(mm) |
7210X2240X2600 |
|
Wheelbase (mm) |
3800 |
|
Axle number |
2 |
|
Drive type |
4*2 |
|
Steering type |
Left Hand Drive or RHD with power steering |
|
Max. Drive Speed (km/h) |
90 |
|
Curb weight (kg) |
Approx 5200 |
|
Chassis parameter |
Chassis Model |
DFA1080 |
Chassis manufacturer: |
DONGFENG Motor Co.,Ltd |
|
Transmission |
Manual , 5 shift (5 forward and 1 reverse) |
|
Brakes |
breathe brake |
|
Tire |
7.50R16 ,8.25-16 with 1 Spare tire |
|
Engine parameter |
Engine Brand |
DONGFENG Chaoyang |
Model |
CY4102-CE4C |
|
Fuel type |
Diesel |
|
Horse Power(kw)/(hp) |
91(124HP) |
|
Displacement(ml) |
3856 |
|
Emission Standard |
Euro 3 |
|
Superstructure Parameter and main performance |
Tank volume(m3) |
6 (Sewage tank:3m3), water tank:3m3) |
Tank material |
5 mm good quality carbon steel ,round tank |
|
Vacuum pump |
high quality special vacuum pump, vertical suction lift is about 7-10m. |
|
Standard configuration |
inspect window, one gravity mouth, cleaning apparatus,5 meter long suction pipe, oil-water separators, overflow valve, etc, |
|
Main function |
With self-priming, self-discharging function, with dump function, rear door is controlled by hydraulic, sewage outfall is opened by the cylinder |
|
Other configuratioin |
with gasoline moter, sprinkling |

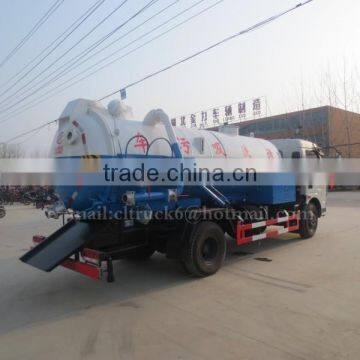

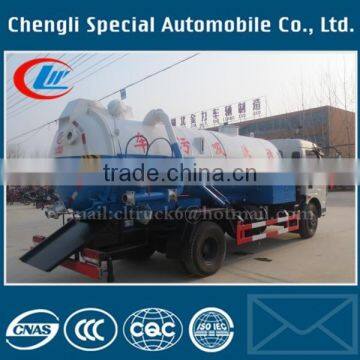

Multi-faceted Picture of DONGFENG 4*2 6ton Cleaning Suction Sewage Truck:
1, Packaging: nude or waxing;
2. Shipping: in the container or Ro-Ro ship or bulk ship according to the customer’ order or requirement;
1. Factory direct supply: reliable quality and fast delivery;
2. Warranty; from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service: lifelong
4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely;
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd , which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. Our leading productions include more than 300 types of trucks such as Water truck, Fecal suction truck, sewage suction truck, Garbage truck, Road sweeper, Fuel tank truck, Van truck, Chemical liquid truck, Concrete mixer truck, Pressure vessel, etc.We have registered trademark "CHENLIWEI" and the products code is “CLW”. We have solid technology, flawless inspection, advanced equipments, reliant quality and flexible modes of operation. What's more, we have roundly passed the certificaton of ISO 9001-2008, the 3C Certification
Since our company was established in Sep.2004, we always strives for the survival by the quality, pursue of development by efficiency. In the past about ten years, we had 30% market share of the sanitation trucks in China market. From 2004 year, we have entered the international market. And we have established long-term cooperative relationship with many countries. In Kyrgyzstan, Papua New Guinea, Libya and Niger, you can find out many fuel trucks, LPG tankers and dump trucks made by our company. In Sudan, Nigeria, Congo and West Africa, you can find out many water trucks, garbage trucks and crane trucks made by our company. In North America, Ghanaian, Kazakhstan and Mongolia, you can find out many dump trucks, crane trucks and freezer trucks made by our company. Tomorrow, we hope we can find out our trucks in your country.
Our certificates:
Production Equipments:
1. Are you manufacturer or trading company?
We are direct manufacturer;
2. Min Order Quantity:
One unit or one sets;
3. Handling Time:
Within one day;
4. Payment Terms:
30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
5. Specified delivery date from the Date of Order:
Depend on the detailed request and purchase order quantity.
6. Contact Information:
For any question or request, please contact with me freely according to the following information:
