DONGFENG 4*2 Flushing with Sewage Suction Truck 8m3
Flushing with Sewage Suction Truck is a dual-function truck of cleaning and sewage suction. It is mainly used for sewage suction, cleaning road or sewer, transportation and discharge of sewage from septic tand and sludge from drains. and also used for cleaning the drainage on the city underground sewers, the industrial pipes, walls and furthermore acts as a sprinkling. It can be used to transport water, flush the equipment.
Truck description:
1. Basic equipment: PTO, Vacuum Pump, High Pressure Pump,hydraulic sprayer, Hydraulic Cylinders,Multi-way valve, Pressure Gauge,Water-gas Seperator , Oil-gas Seperator, Level Inspection Window, Suction Hose, Hose Real,inspect fecal window, gravity mouth, cleaning apparatus, fecal suction pipe, oil-water separators, overflow valve Fecal suction gun, etc
2. Main Features: self-priming, self-discharging, high pressure flushing, high efficiency,Time for full suction<5min
3. Tanks material optional:carbon steel, stainless steel, epoxy resin anticorrosive processing(in order to contain partial chemical sewage or industrial wastewater).
Main Parameter of DONGFENG 4*2 Flushing with Sewage Suction Truck 8m3
Main Technical Parameter | |||
Product Model |
DONGFENG Flushing with Sewage Suction Truck |
Overall Dimension(L*W*H)(mm) |
7980×2470×3380 |
Wheelbase(mm) |
4700 |
Fact volume(m3) |
Water tank 4.2m3,sewage Suction tnak:4.6m3 |
Curb weight(kg) |
7300 |
Number of Axles |
2 |
Actual Payload(kg) |
8500 |
Approach/ departure angle (° ) |
33/13 |
Steering Type |
LHD or RHD with Power steering |
Max Speed (km/h) |
90 |
Cab capacity |
3 |
Cab Type |
Flat proof, air conditioning |
Chassis Parameter | |||
Chassis Model |
EQ1110 |
Chassis manufacturer |
DONGFENG Automobile Co., Ltd |
Gear Box |
6 shift |
Transmission type |
Manual |
Truck axle |
DONGFENG DENA |
Traction Type |
4*2 |
Brake System |
Air brake |
Leaf Spring number |
8/11+8 |
Number of Tire |
6 with a spare |
Tire size/type |
9.00-20 14PR or 9.00R20 |
Engine Parameter | |||
Engine Model |
B170-33 |
Engine manufacturer |
DONGFENG |
Fuel type |
diesel |
Displacement(ml) |
5900 |
Emission stand |
Euro 3 |
Power(kw) |
125(170hp) |
Operation System |
Electrically Hydraulic Control |
Electric system |
24V |
Equipment & Performance & Features |
1. Flushing tank adopt Italy imported High pressure Pump, 4mm good quality carbon steel, 16Mpa, 125L/Min, 60 meter Ø 19mm pipe, 10 high pressure sprayers; |
||
2. Sewage tank is equipped with 8T vacuum pump ,rear gravity mouth , inspect fecal window, Pressure gauge, hand-washing device | |||
3. Sewage Tank material: 5mm carbon steel | |||
Warranty |
12 months, from the date of supply |
||

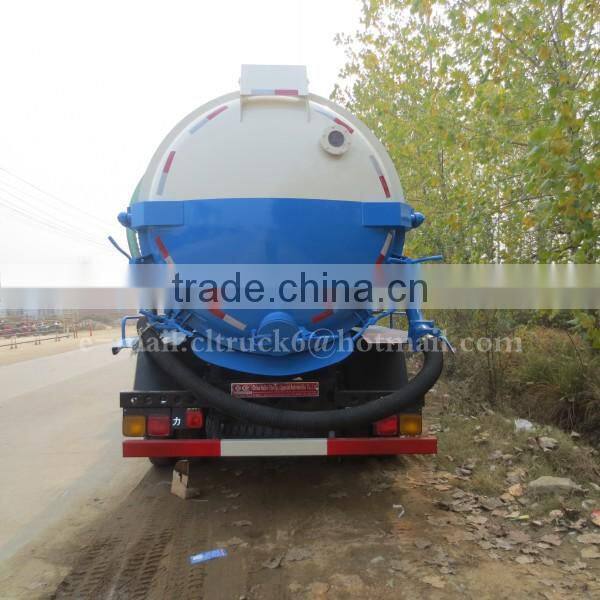

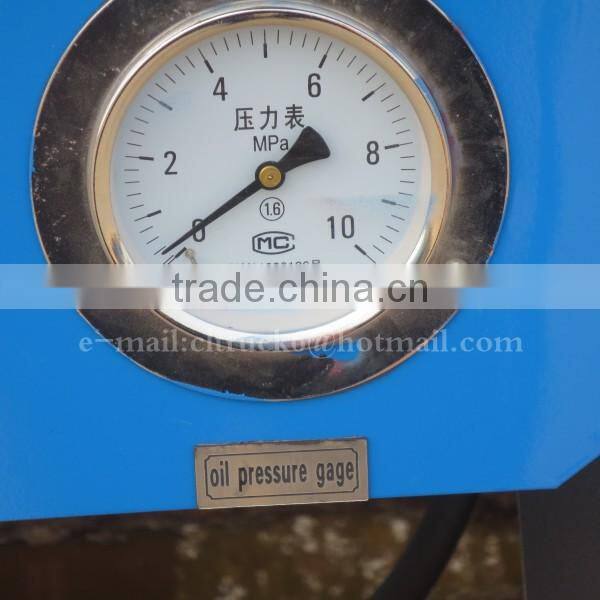

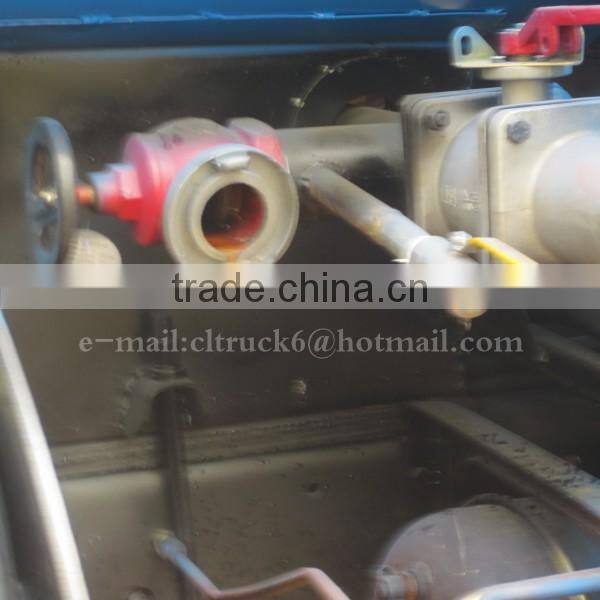

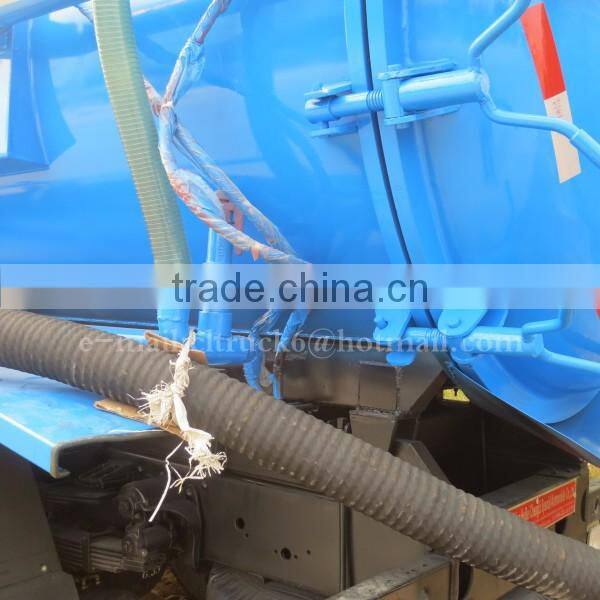

Multi-faceted Picture of DONGFENG 4*2 Flushing with Sewage Suction Truck 8m3:
1, Packaging: nude or waxing;
2. Shipping: in the container or Ro-Ro ship or bulk ship according to the customer’ order or requirement ;
1. Factory direct supply: reliable quality and fast delivery;
2. Warranty; from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service: lifelong
4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.
Brief Introdution of Company:
ChengLi Special Automobile Co., Ltd , which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. Our leading productions include more than 300 types of trucks such as Water truck, Fecal suction truck, sewage suction truck, Garbage truck, Road sweeper, Fuel tank truck, Van truck, Chemical liquid truck, Concrete mixer truck, Pressure vessel, etc.We have registered trademark "CHENLIWEI" and the products code is “CLW”. We have solid technology, flawless inspection, advanced equipments, reliant quality and flexible modes of operation. What's more, we have roundly passed the certificaton of ISO 9001-2008, the 3C Certification
Since our company was established in Sep.2004, we always strives for the survival by the quality, pursue of development by efficiency. In the past about ten years, we had 30% market share of the sanitation trucks in China market. From 2004 year, we have entered the international market. And we have established long-term cooperative relationship with many countries. In Kyrgyzstan, Papua New Guinea, Libya and Niger, you can find out many fuel trucks, LPG tankers and dump trucks made by our company. In Sudan, Nigeria, Congo and West Africa, you can find out many water trucks, garbage trucks and crane trucks made by our company. In North America, Ghanaian, Kazakhstan and Mongolia, you can find out many dump trucks, crane trucks and freezer trucks made by our company. Tomorrow, we hope we can find out our trucks in your country.
Our certificates:
Production Equipments:
1. Are you manufacturer or trading company?
We are direct manufacturer;
2. Min Order Quantity:
One unit or one sets;
3. Handling Time:
Within one day;
4. Payment Terms:
30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
5. Specified delivery date from the Date of Order:
Depend on the detailed request and purchase order quantity.
6. Contact Information:
For any question or request, please contact with me freely according to the following information:
