300hp 6*4 DONGFENG Compartment Removable Refuse Truck 16 m3
Compartment Removable Refuse Truck ,is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area. this truck can be equipped with many buckets , high effiency, economical
Production notes:
1 ISO9001,3C
2 High quality, low price
3 Factory direct sale
4 Easy to use,operate conveniently, one truck can be equipped with many buckets
5 DONGFENG 6*4 chassis,300hp, with 16 m3 opening top type garbage bucket
6.Can customize the garbage bucket according to the customer' request
,
Technical Parameter of 300hp 6*4 DONGFENG Compartment Removable Refuse Truck 16 m3
Main Technical Parameter | |||
Product Name | DONGFENG Compartment Removable Refuse Truck | Overall Dimension(L*W*H)(mm) |
8350,8150×2500×3050 |
Wheelbase(mm) | 4350+1300, | Curb weight(kg) | 14115 |
Axle number | 3 | Steering type | LHD/RHD with power steering |
Approach/ departure angle (° ) | 25/22 | Max Speed (km/h) | 90 |
Cab capacity | 3 | Cab type | Single sleeper, flat proof |
Chassis Technical Parameter | |||
Chassis Model: | EQ1258 | Chassis Manufacturer: | DONGFENG motor Co., Ltd |
Brake System | Air brake | Transmission type: | Manual with FAST 9 shift |
Traction Type: | 6*4 | Leaf Spring number: | 9/10 |
Tire size | 10.00-20,10.00R20 | Number of Tire | 10 with a spare |
Engine specification | |||
Engine Model: | C300 33 | Engine Brand | DONGFENG |
Emission stand | Euro 3 | Displacement(ml) | 5900 |
Fuel type: | Diesel | Power(kw) | 221(300hp) |
Warranty | 12 months, from the date of supply | ||

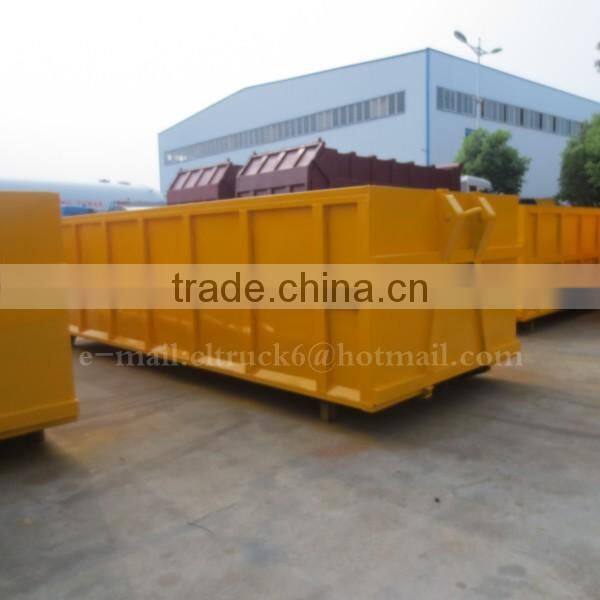

other Equipment or performances | 1. 24V Electric system, electrically hydraulic operation control , Equipped with side 3mm, floor 4mm carbon steel garbage bucket with opening top | ||

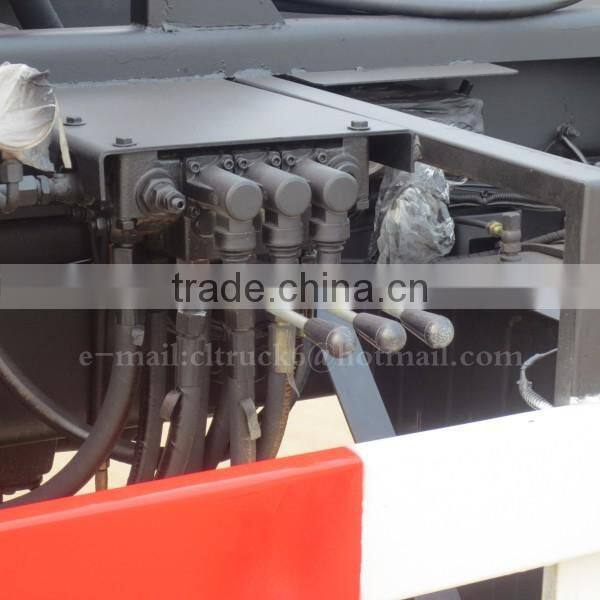

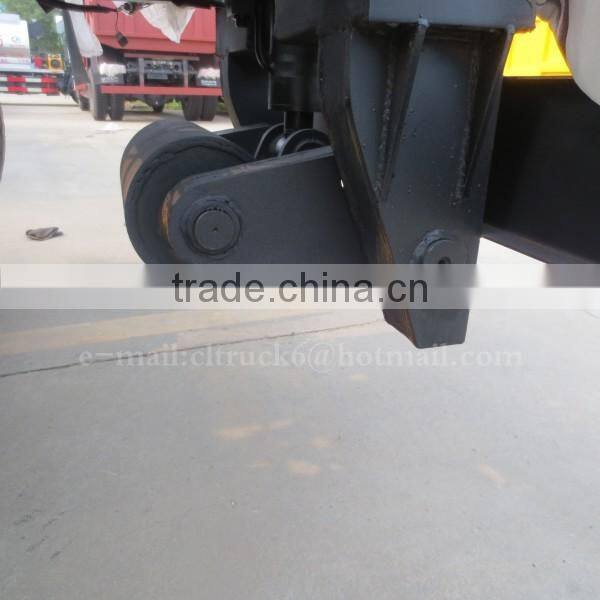

2. Equipped with piston pump, imported hydraulic valve, movable cover main arm, rear outrigger, can operate in the cab or body side | |||

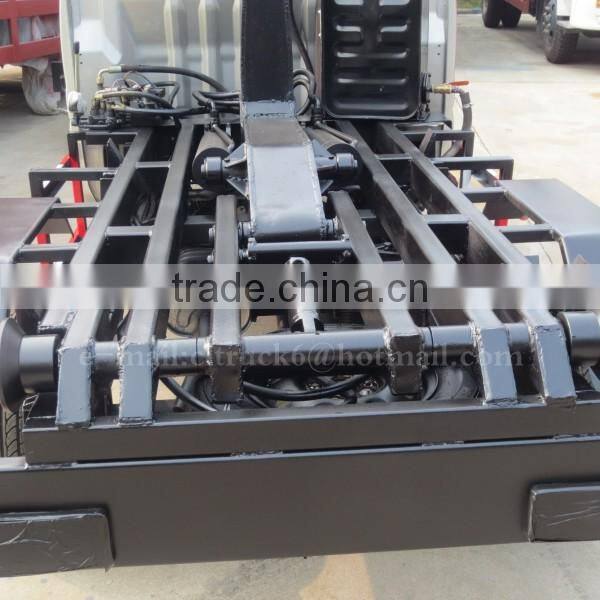

3 Detachable Compartment ,Simple operation, self-loading, self-unloading | |||

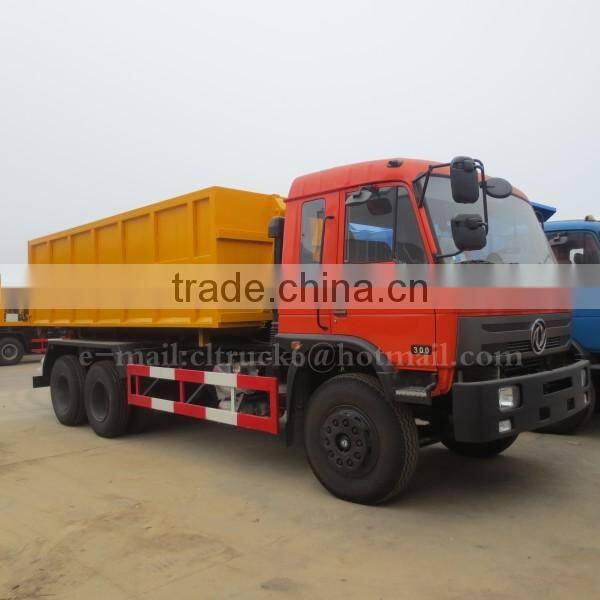

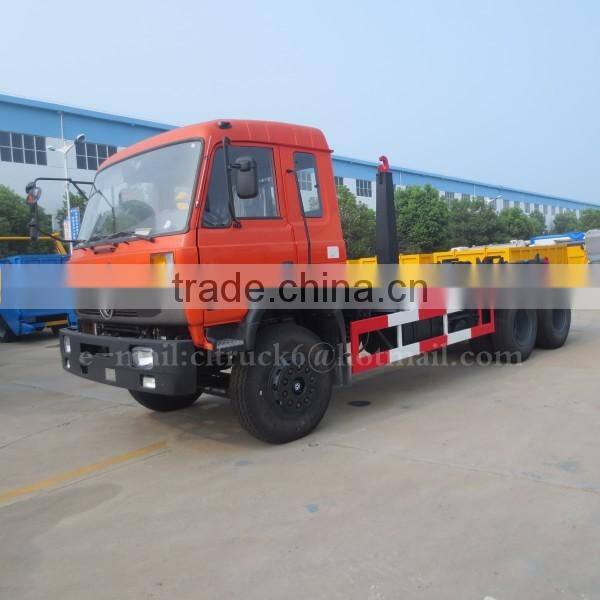

Multi-faceted Show of 300hp 6*4 DONGFENG Compartment Removable Refuse Truck 16 m3 :
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
Production Equipments:
Trucks Exported:
