DONGFENG 4*2 New Design Garbage compactor truck 12m3 with swing arm
New Design Garbage compactor truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
Product features :
1.DONGFENG 4*2 chassis, with 190hp, volume:12m3
2. Automatic hydraulic operation;
3. Rear body can be equipped with swing arm and swing bucket
4. High quality and low price
Main parameter of DONGFENG 4*2 New Design Garbage compactor truck 12m3 with swing arm
Main Technical Parameter | |||
Product Model | DONGFENG New Design Garbage compactor truck | Overall Dimension(L*W*H)(mm) | 8800×2480×3150,3250 |
Wheelbase(mm) | 4500 | Tank volume(m3) | 12 |
Curb weight(kg) | Approx 9805 | F/ R suspension(mm) | 1430/2540 |
Steering Type | LHD, power steering | Number of Axles | 2 |
Approach/ departure angle (° ) | 20/11 | Max Speed (km/h) | 95 |
Cab capacity | 3 | Cab Type | single sleeper, air conditioning |
Chassis Technical Parameter | |||
Chassis Model | DFL1160 | Chassis manufacturer | DONGFENG Automobile Co.,Ltd |
Gear Box | 6 shift | Transmission type | Manual |
Brake System | air brake | Traction Type | 4*2 |
Leaf Spring number | 8/10+8,7/9+6 | Tire size/type | 10.00-20,10.00R20 |
Engine Technical Parameter | |||
Engine Model | B190 33 | Engine manufacturer | DONGFENG |
Fuel type | diesel | Displacement(ml) | 5900 |
Emission stand | Euro 3 | Power(kw) | 140(190hp) |
Equipment & Performance | 1.Equipped with loading hopper, front push , rear compressed , sewage tank, optional equipped with rear swing arm and swing bucket, etc | ||
2.Compartment material: side and back 3mm ,floor 4mm thickness carbon steel | |||
3.Equipped with 24V Electrically Hydraulic Control system | |||
Warranty | 12 months, from the date of supply | ||

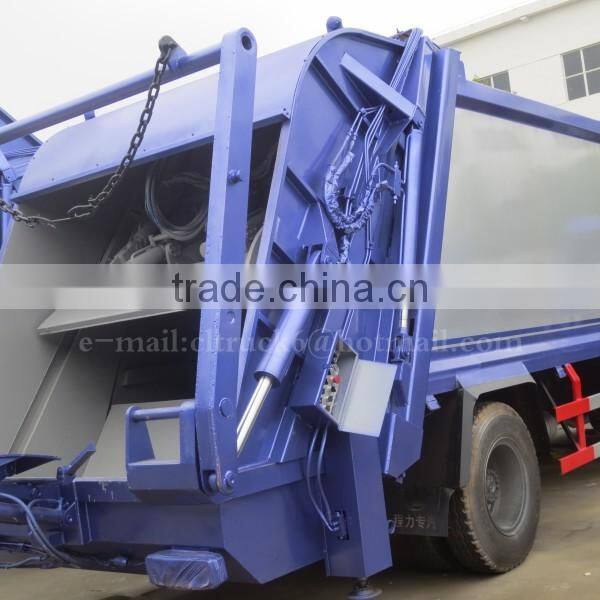

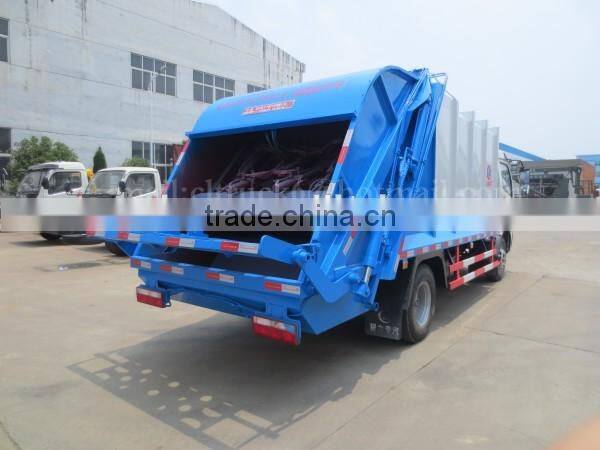

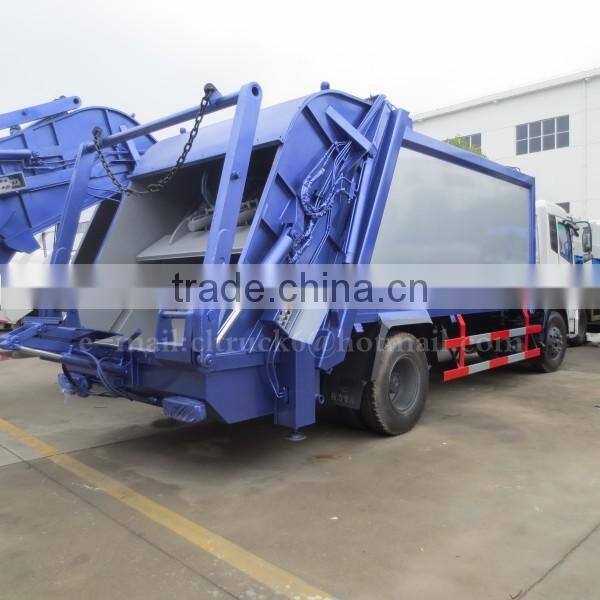

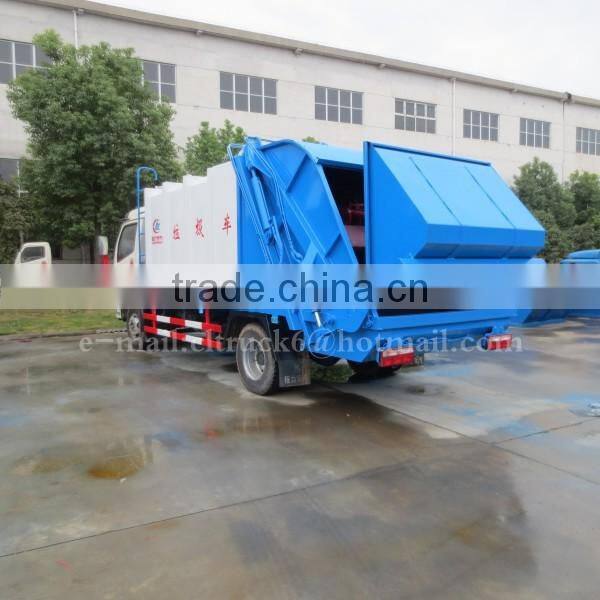

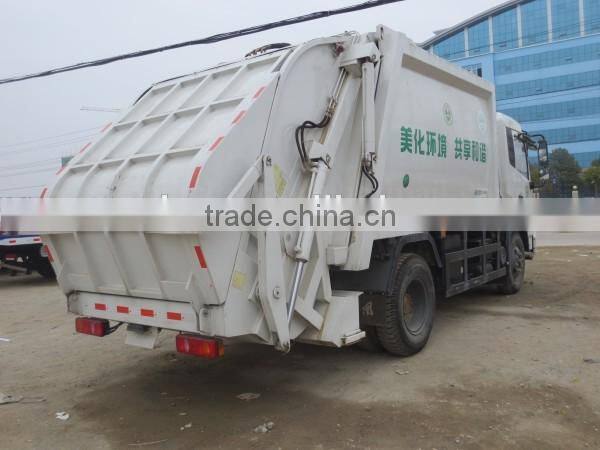

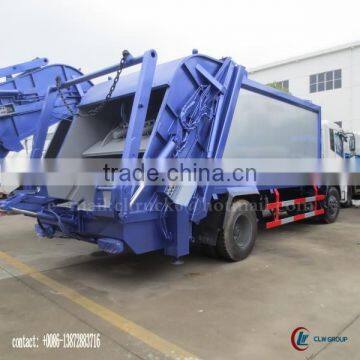

Multi-faceted Show of DONGFENG 4*2 New Design Garbage compactor truck 12m3 with swing arm :

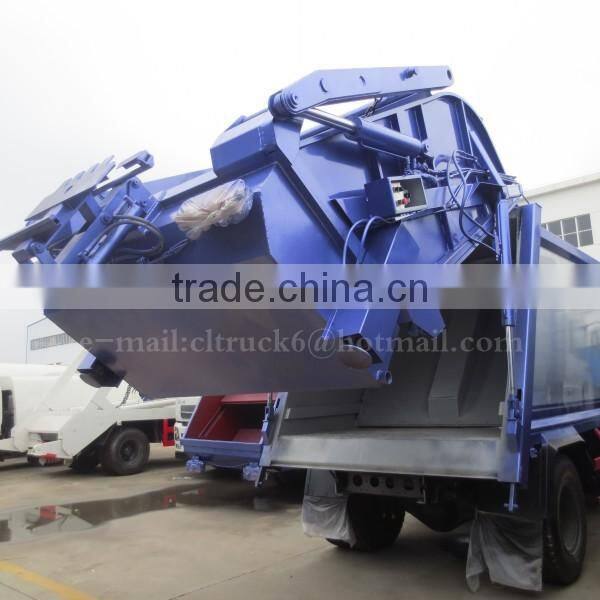

Optional Equipped with Hanging barrel rear overturned mechanism or large bucket

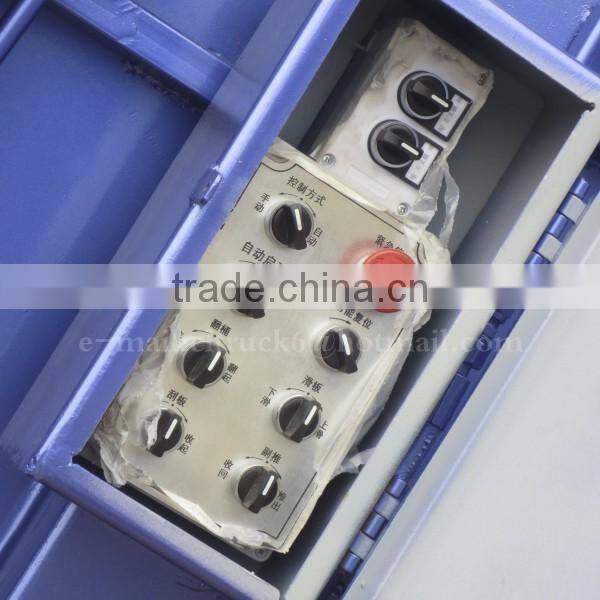

Push-button operation Sign Stand in Chinese and English
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
Production Equipments:
Trucks Exported:
Contact Information:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
