Home > Transportation > Specialized Vehicle > Garbage Truck > DONGFENG 140 4*2 Garbage Compactor Truck 10CBM

DONGFENG 140 4*2 Garbage Compactor Truck 10CBM

DONGFENG 140 4*2 Garbage Compactor Truck 10CBM photo-1
US$ 26,900 - 28,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Drive Wheel:
4x2
Type:
Compactor
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Drive Wheel 4x2
Type Compactor
Transmission Type Manual
Emission Standard Euro 3
Volume 6001 - 10000L
Fuel Type Diesel
Engine Capacity 4257
Size 7580*2470*2950
Gross Vehicle Weight 10490
Place of Origin Hubei, China
Brand Name DONGFENG
Model Number EQ1102FLJ5
Certification 3c
After-sales Service Provided Overseas third-party support available

   DONGFENG 140 4*2 Garbage Compactor Truck 10CBM



DONGFENG 140 4*2 Garbage Compactor Truck 10CBM



     Garbage Compactor Truck is also called  compactor garbage truck ,garbage collecting truck, garbage transport truck, mainly used in transporting kinds of  garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport  household waste in residential area. According to loading and unloading type, it is divided into  the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck



Product Features:



Adopt Dongfeng 140 4*2 chassis, with Yuchai 140hp, load 10m3 compressiong garbage;

2  High  efficiency , stable performance

3  Affordable price

4  Safe, comfortable driving and operating



Techmical Parameterof  DONGFENG 140 4*2 Garbage Compactor Truck 10CBM



Main parameter of the whole truck

Product Model

DONGFENG Garbage Compactor Truck

Overall Dimension(L*W*H)(mm)

7580×2470×2950

Curb weight(kg)

7255

F/ R suspension(mm)

1065/2565

Loading capacity(m3)

10

Wheelbase(mm)

3950

Axle number

2

Approach/ departure angle (° )

34/12

Cab type

Single row,tip head

Cab capacity

3

Steering type

LHD

Max Speed (km/h)

85

Chassis Technical Parameter

Chassis Model:

EQ1102FLJ5

Chassis Manufacturer:

DONGFENG Automobile Co., Ltd

Brake System

Air brake

Transmission type:

Manual

Gear box

 6 shift

Number of tire

6 with a spare

Tire size

9.00-20

Traction Type:

4*2

Engine specification

Engine Model:

YC4E140-33

Engine Brand

GUANGXI YuChai

Emission stand

Euro 2

Displacement(ml)

4257

Fuel type:

Diesel

Power(kw)

105(140hp)

Superstructure parameter

  1. Equipped with 24V Electrically Hydraulic Control system
  2. Compartment material: side and back 3mm ,floor 4mm thickness carbon steel
  3. Equipped with loading hopper, front push , rear compressed , sewage tank, optional rear overturned mechanism, garbage bucket ,etc

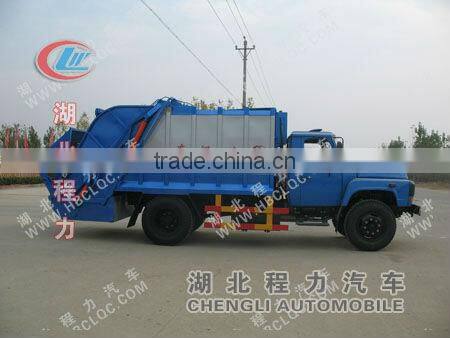

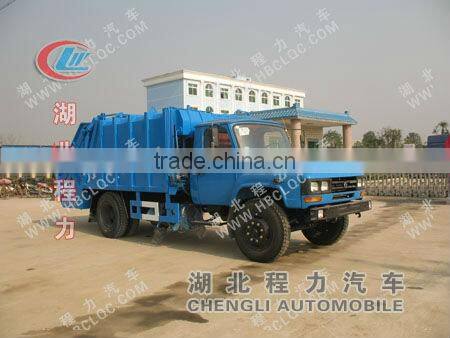

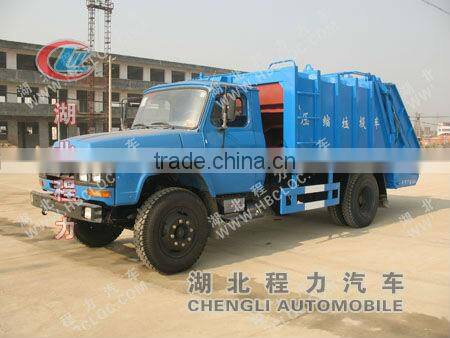

This   Garbage Compactor Truck show as following:



  DONGFENG 140 4*2 Garbage Compactor Truck 10CBM



DONGFENG 140 4*2 Garbage Compactor Truck 10CBM



DONGFENG 140 4*2 Garbage Compactor Truck 10CBM

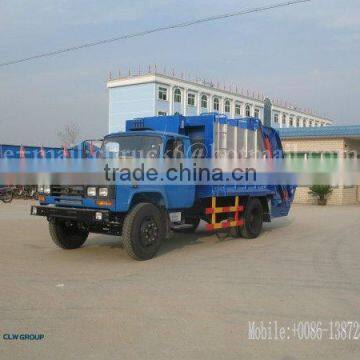

more Garbage Compactor Truck shown as the following:



DONGFENG 140 4*2 Garbage Compactor Truck 10CBM





DONGFENG 140 4*2 Garbage Compactor Truck 10CBM











  DONGFENG 140 4*2 Garbage Compactor Truck 10CBM DONGFENG 140 4*2 Garbage Compactor Truck 10CBM





         ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.

          Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.

         We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.

            ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.



Our Certificates:

DONGFENG 140 4*2 Garbage Compactor Truck 10CBMDONGFENG 140 4*2 Garbage Compactor Truck 10CBMDONGFENG 140 4*2 Garbage Compactor Truck 10CBMDONGFENG 140 4*2 Garbage Compactor Truck 10CBM









         If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:

DONGFENG 140 4*2 Garbage Compactor Truck 10CBM
