121hp DONGFENG 4*2 Fire Truck 4ton
4*2 Fire Truck , also known as a firetruck, is used exclusively as extinguishing or other emergency rescue vehicle . 4*2 Fire Truck is currently most main tool for fire deprtments to fight fire , and is the most basic mobile firefighting equipment. According to the different types of extinguishing media, fire truck can be divided into water tank fighting truck, foam fighting truck, dry powder fighting truck, etc. We can manufacture kinds of fighting truck from 0.5ton to 22ton, and we also can manufacturer rescue Fire truck, communication command truck, inflatable Fire truck. etc.
Product Notes:
1 DONGFENG 4*2 chassis, Yunnei 121hp, Euro 2 emission Standard
2 Extinguishing Media:water or foam,volume:4000L or 880 Gal
3 Factory Direct sale, delivery fastly
4 High quality, with China 3C certificate
Main parameter of 121hp DONGFENG 4*2 Fire Truck 4ton
Main Technical Parameter | |||
Product Model |
DONGFENG 4*2 Fire Truck |
Overall Dimension(L*W*H)(mm) |
6950×2285×2930 |
Wheelbase(mm) |
3800 |
Water tanker volume(m3) |
4 |
Curb weight(kg) |
5050 |
Number of Axles |
2 |
Steering Type |
LHD with power steering |
Max Speed (km/h) |
90 |
Cab capacity |
2+3 |
Cab Type |
DONGFENG two row cab |
Chassis Parameter | |||
Chassis Model |
EQ1150G |
Chassis manufacturer |
Dongfeng Automobile Co., Ltd |
Gear Box |
DONGFENG 5 shift,with subtransmission |
Transmission type |
Manual |
Brake System |
Air brake |
Traction Type |
4*2 |
Number of tire |
6 with a spare |
Tire size/type |
7.50R16,8.25-16 |
Engine parameter | |||
Engine Model |
YN33PE-1
|
Engine manufacturer |
Kunming Yunnei Power Co., Ltd |
Fuel type |
diesel |
Displacement(ml) |
3298 |
Emission stand |
Euro 2 |
Power(kw) |
76(121hp) |
Operation System |
Electrically Hydraulic Control |
Electric system |
24V |
Superstructure Equipment & Performance |
1.equipped CB10/30 fire pump(middle-loading)(diversion time≤35s) |
||
2.Water tanker volume: 4ton, tanker material: 4mm high quality carbon steel | |||
3.equipped with PS30 type fire monitor,(pressure:1.0MPa,flow:30L/s,shot range≥40m,rotation angle: left or right 360°,up or down-30°~80°) | |||
4.cab type: two-row, steel structure | |||
5 steel pump room/equipments box , four Aluminum curtain doors | |||
6 Equipped with 1100mm long rows of lights in the top of cab | |||
Warranty |
12 months, from the date of supply |
||

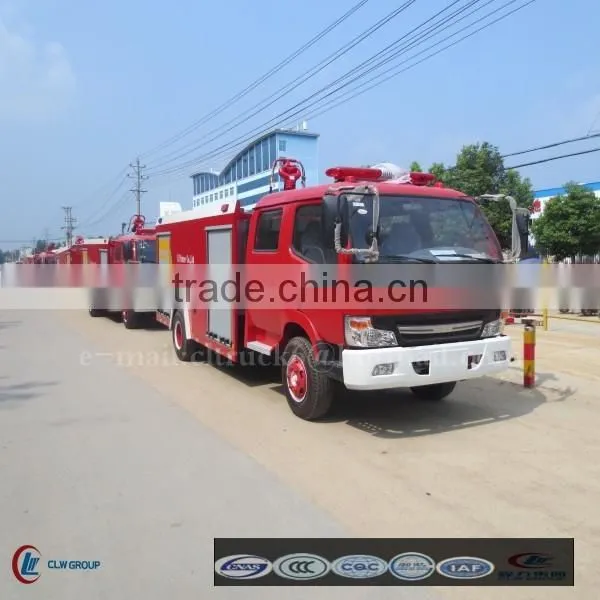

Product picture of 121hp DONGFENG 4*2 Fire Truck 4ton:

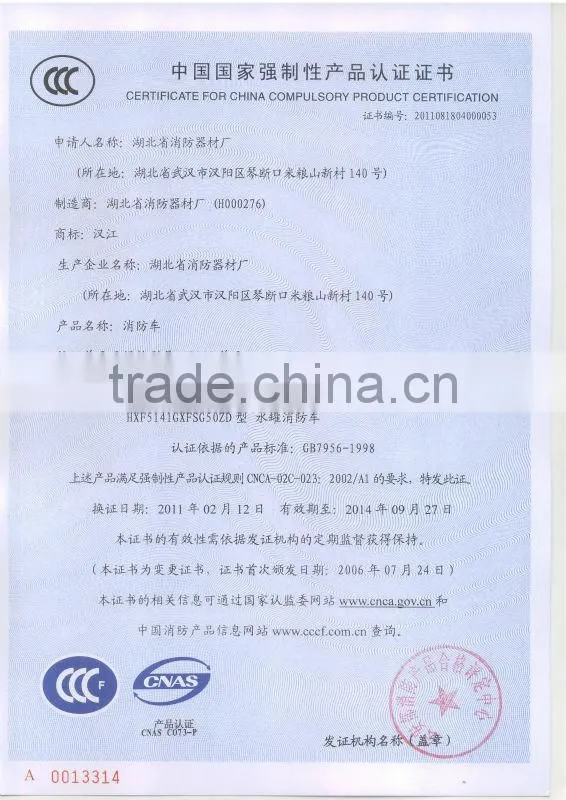

Our Certificates:

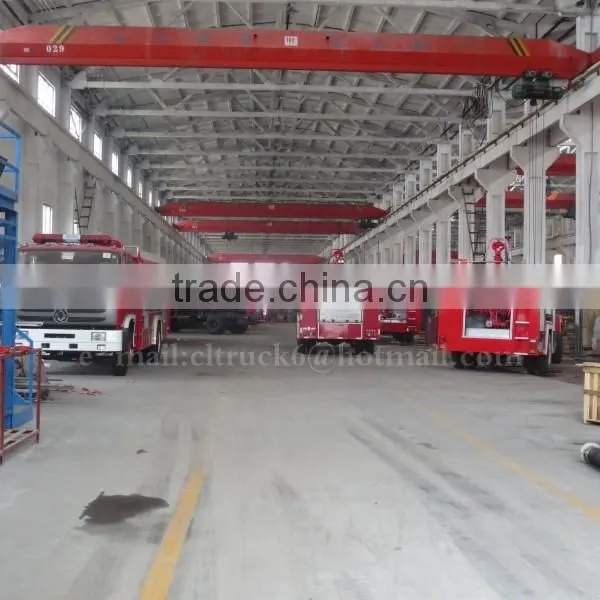

Our production equipments:
Contact Information:
The above information is just for your reference, if you have any other questions or need more truck picture or detailed information, please feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please check my contact information as below
