DONGFENG 4x2 Small Fire Truck 4ton
Product Notes:
1 DONGFENG 4*2 two-row chassis
2 Extinguishing Media:water or foam,volume:4ton
3 Engine 135hp
4 low price
Main parameter of DONGFENG 4x2 Small Fire Truck 4ton
Main Technical Parameter | |||
Product Model |
DONGFENG Small Fire Truck |
Overall Dimension(L*W*H)(mm) |
7020×2400×3080 |
Wheelbase(mm) |
3950 |
Water tanker volume(m3) |
3-4 |
Curb weight(kg) |
5600 |
Number of Axles |
2 |
Approach/ departure angle (° ) |
34/17 |
Max Speed (km/h) |
90 |
Cab capacity |
3+3 |
Cab Type |
two row ,tip head |
Chassis parameter | |||
Chassis Model |
EQ1092F3GJ2 |
Chassis manufacturer |
DONGFENG Automobile Co., Ltd |
Gear Box |
DONGFENG 5 shift |
Transmission type |
Manual |
Steering Type |
Steering wheel(LHD) |
Traction Type |
4*2 |
Brake System |
Air brake |
Number of Tire |
6 with a spare |
Leaf Spring number |
8/11+8 |
Tire size/type |
9.00-20,9.00R20 |
Engine parameter | |||
Engine Model |
EQ6100-30 |
Engine manufacturer |
DONGFENG Automobile |
Fuel type |
diesel |
Displacement(ml) |
5420 |
Emission stand |
Euro 3 |
Power(kw) |
99(135hp) |
Operation System |
Electrically Hydraulic Control |
Electric system |
24V |
Superstructure Equipment & Performance |
1.equipped CB10/30 fire pump(rear-loading)(diversion time≤35s) |
||
2.Water tanker volume: 3-4m3, tanker material: 4mm high quality carbon steel | |||
3.equipped with PS30 type fire monitor,(pressure:1.0MPa,flow:30L/s,shot range≥50m,rotation angle: left or right 360°,up or down-30°~80°) | |||
4.cab type: two-row, steel structure | |||
5 steel pump room/equipments box ,5-7Aluminum curtain door | |||
6 other equipment: 1100mm long rows of lights in the top of cab | |||
Warranty |
12 months, from the date of supply |
||

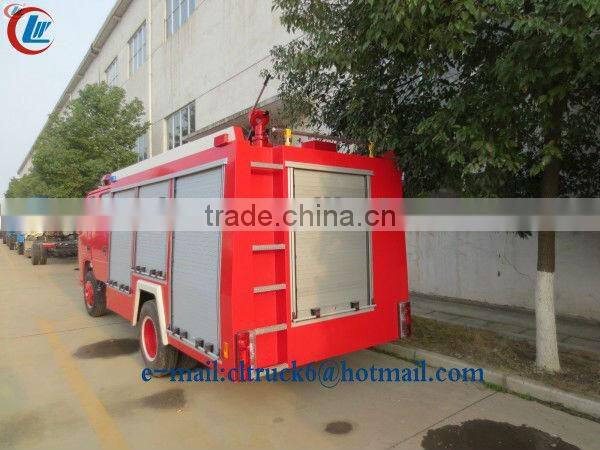

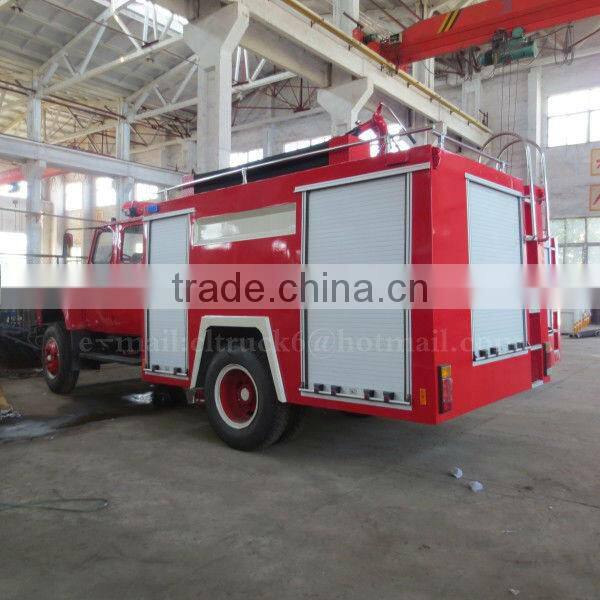

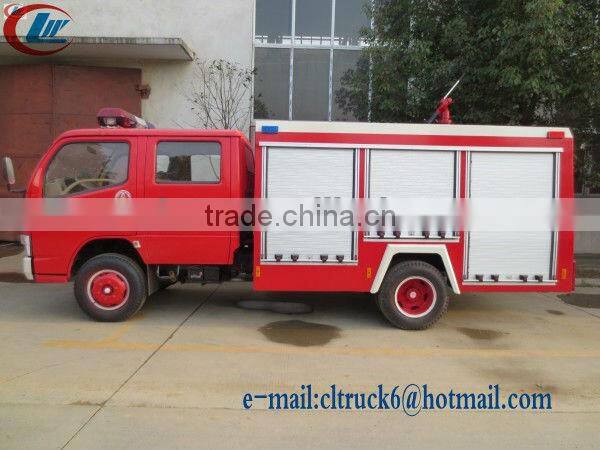

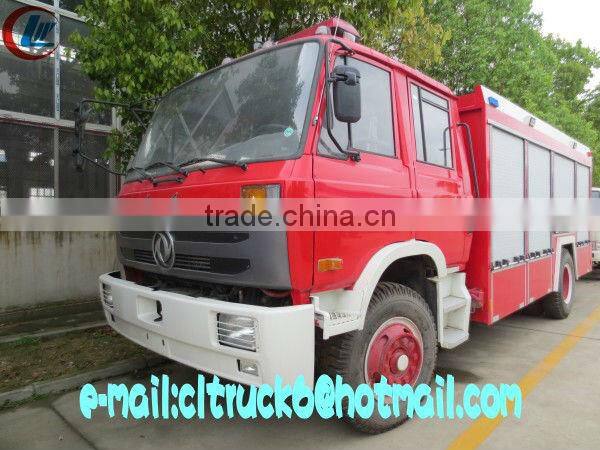

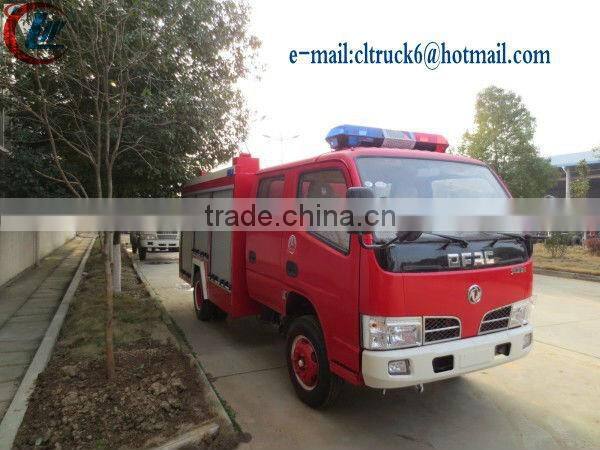

More picture of Small Fire Truck show as following:
Our Certificates:
Our production equipments:
The above information is just for your reference, if you have any other questions or need more truck picture or detailed information, please feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please check my contact information as below
