Dongfeng 4x2 2ton-3ton Water Tanker Fire Fighting Truck
Main Technical Parameter of Dongfeng 4x2 2ton-3ton Water Tanker Fire Fighting Truck | |||
Product Model |
JDF5050GXFSG10/X fire fighting truck |
Overall Dimension(L*W*H)(mm) |
6260×1900×2750 |
Wheelbase(mm) |
3300 |
Tanker Dimension(L*W*H)(mm) |
910×1170×1230 |
F/ R suspension(mm) |
1032/1928 |
Front/Rear tread(mm) |
1404/1458 |
Gross weight (kg) |
5495 |
Number of Axles |
2 |
Payload(kg) |
1250 |
Water tanker volume(m3) |
2-3 |
Curb weight(kg) |
3870 |
F/R axle load(Kg) |
2470/3025 |
Approach/ departure angle (° ) |
19/12 |
Max Speed (km/h) |
90 |
Cab capacity |
2+3 |
Cab Type |
FRK cab with two row |
Chassis Model |
EQ1050NJ20D3 |
Chassis manufacturer |
Dongfeng Automobile Co., Ltd |
Gear Box |
Dongfeng 5 shift |
Transmission type |
Manual |
Steering Type |
Steering wheel(LHD) |
Traction Type |
4*2 |
Frame type |
Side rails |
Rear axle |
Dongfeng Dena |
Brake System |
Air brake |
||
Leaf Spring number |
8/9+5,6/8+4 |
Tire size/type |
7.00-16,6.50R16 |
Engine Model |
CY4102-C3F
|
Engine manufacturer |
Dongfeng Chaoyang |
Fuel type |
diesel |
Displacement(ml) |
3856 |
Emission stand |
Euro 3 |
Power(kw) |
70(95hp) |
Operation System |
Electrically Hydraulic Control |
Electric system |
24V |
Superstructure Equipment & Performance |
1.equipped CB10/30 fire pump(middle-loading)(diversion time≤35s) |
||
2.Water tanker volume: 2-3m3, tanker material: 4mm high quality carbon steel | |||
3.equipped with PS20 type fire monitor,(pressure:1.0MPa,flow:20L/s,shot range≥40m,rotation angle: left or right 360°,up or down-30°~80°) | |||
4.cab type: two-row, steel structure | |||
5 steel pump room/equipments box ,5-7Aluminum curtain door | |||
6 other equipment: 1100mm long rows of lights in the top of cab | |||
Warranty |
12 months, from the date of supply |
||

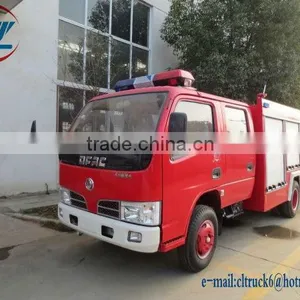

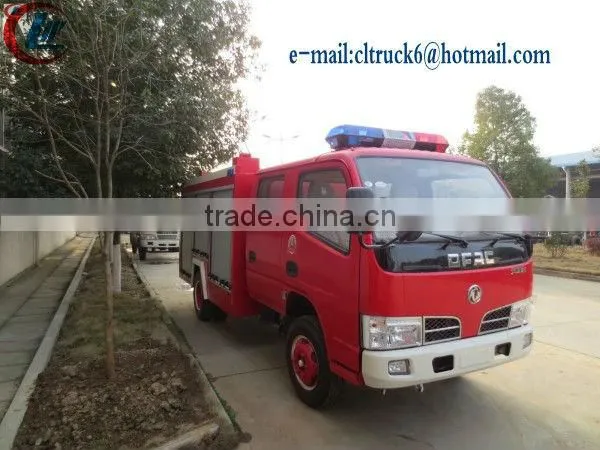

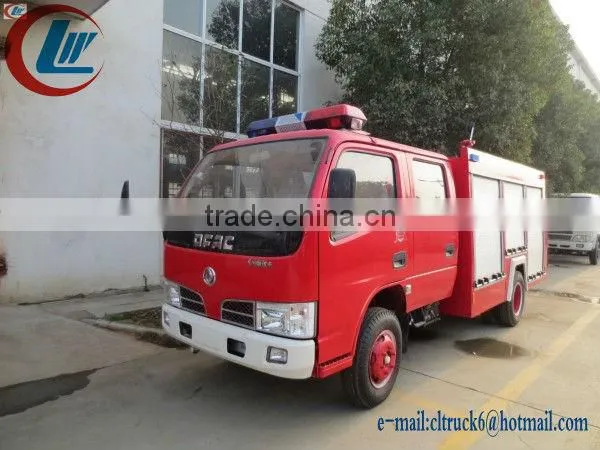

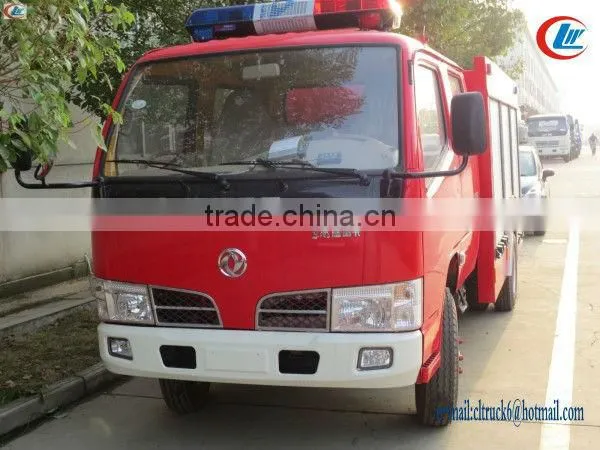

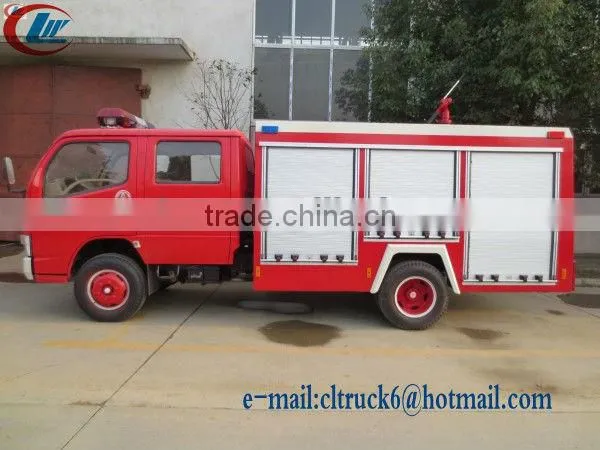

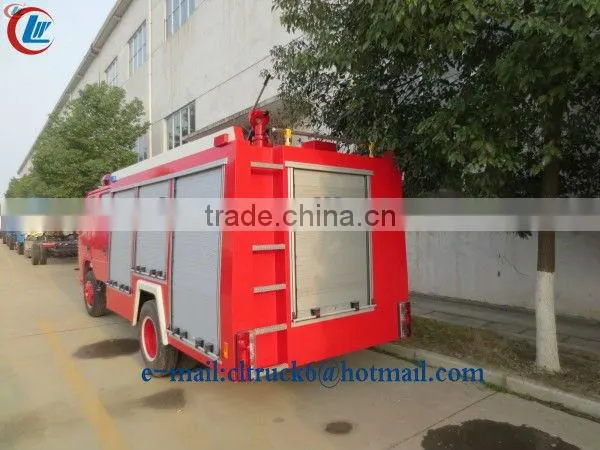

More picture of this fire fighting truck show as following:
Our Certificates:

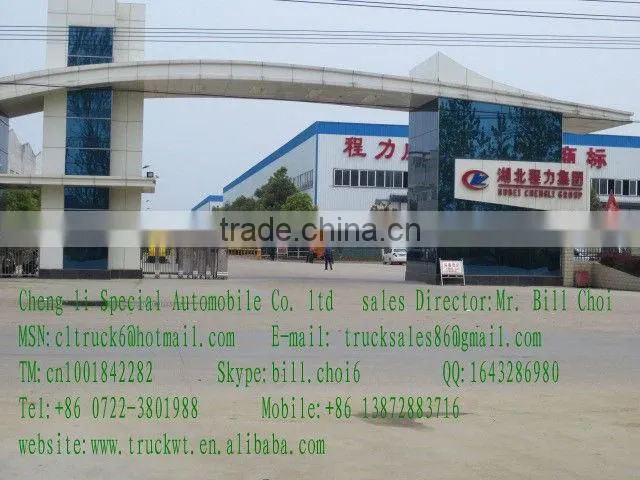

Our production equipments:
The above information is just for your reference, if you have any other questions or need more truck picture or detailed information, please feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please check my contact information as below
