Dongfeng 4Tons 4x2 Fire Fighting Truck

Dongfeng 4Tons 4x2 Fire Fighting Truck thumbnail-1

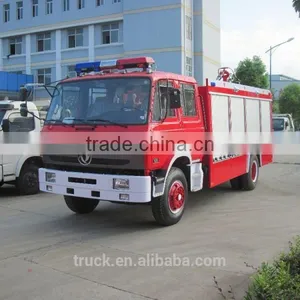

Dongfeng 4Tons 4x2 Fire Fighting Truck thumbnail-2

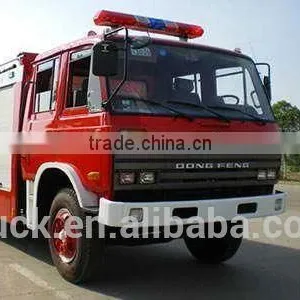

Dongfeng 4Tons 4x2 Fire Fighting Truck thumbnail-3
Dongfeng 4Tons 4x2 Fire Fighting Truck photo-1

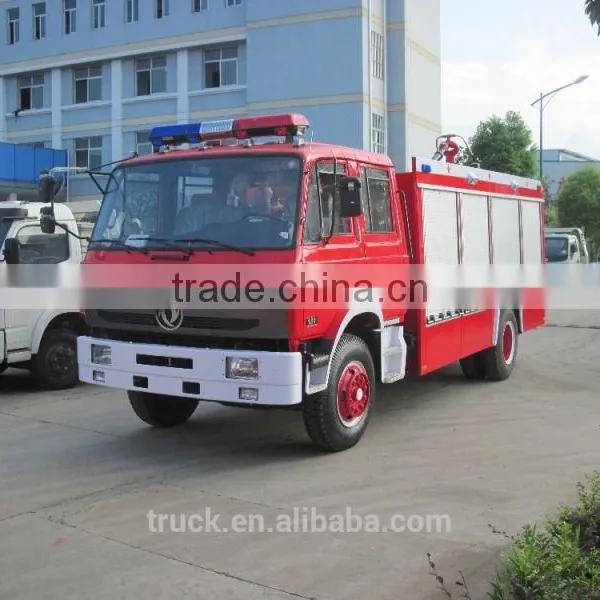

Dongfeng 4Tons 4x2 Fire Fighting Truck photo-2

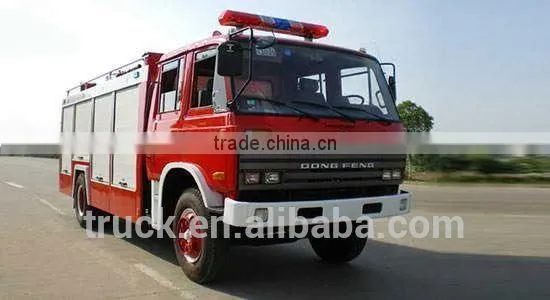

Dongfeng 4Tons 4x2 Fire Fighting Truck photo-3
US$ 25,000 - 39,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Drive Wheel:
4x2
Type:
Pumper
Transmission Type:
Manual
Contact Supplier Request Quote Chat Now
Chengli Special Automobile Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai gangzhou tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Drive Wheel 4x2
Type Pumper
Transmission Type Manual
Condition New
Tank Capacity 3001 - 5000L
Emission Standard Euro 3
Fuel Type Diesel
Max. Work Height 18m
Size 6850*2285*2930
Place of Origin Hebei, China
Brand Name Dongfeng
Model Number DFA1080SJ12D3
Product Description

Dongfeng 4x2 water foam tank fire fighting truck
dongfeng 4 tons fire fighting truck




Overall parameters
Type of Vehicle
Dry chemical foam fire truck
Dimension(L*W*H)
6850×2285×2930(mm)
GVW
9000KG
Curb Weight
5000KG
Rated Loading Weight
4000KG












Chassis parameters
Chassis Model
DFA1080SJ12D3
Manufacture
Dongfeng
Cab
single or double
front/rear suspension
1210/1805,1100/1915





Engine
Engine Model
CY4102-E3C
Fuel
diesel-oil
Quantity of cylinder
4
Horse Power
120HP
Rated Power
88KW
Air Displacement
3856ML
Emission
EURO 3
Driving Type
4x2
Steering Wheel
left/right hand driving
Gear-box
6
Brake Type
air
Quantity of Axle
2
Wheel Base
3800mm
Axle load
3310/4965
Quantity of Tire
6+1(spare)
Tire Type
8.25-16,7.50-16,8.25R16













Parameters of fire fighting part

Liquid tanker
Volume
Water 2T
Material
Corrosion resistant plate
Structure
Welding, baffle palte inside, including also :2 manholes

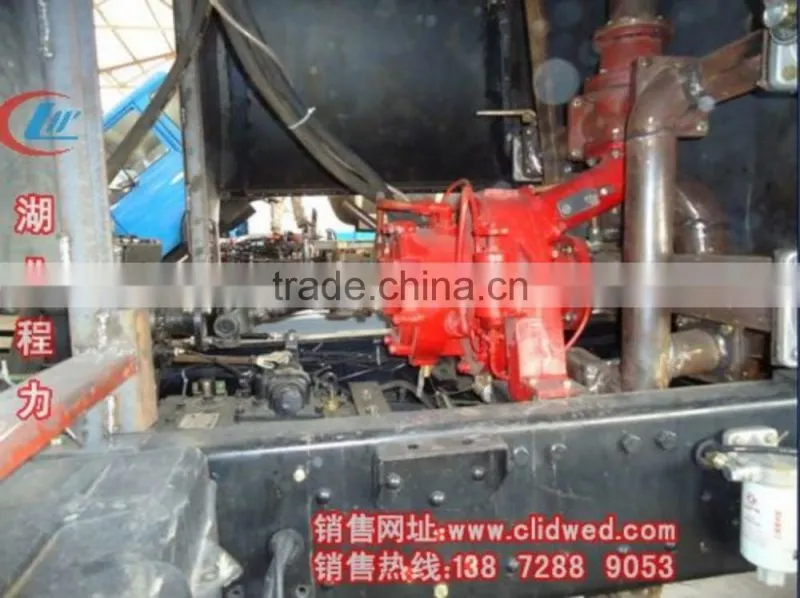

Pump
Model
CB10/40
Pression
1.0 MPa
Flow
40L/s
Suction depth
≥7m
Suction time
≤50s
Installation
Rear
Pipeline system


Powder system
Volume
2T
Material
16MnR
Pressure designed
1.7MPa
Working pressure
1.4MPa

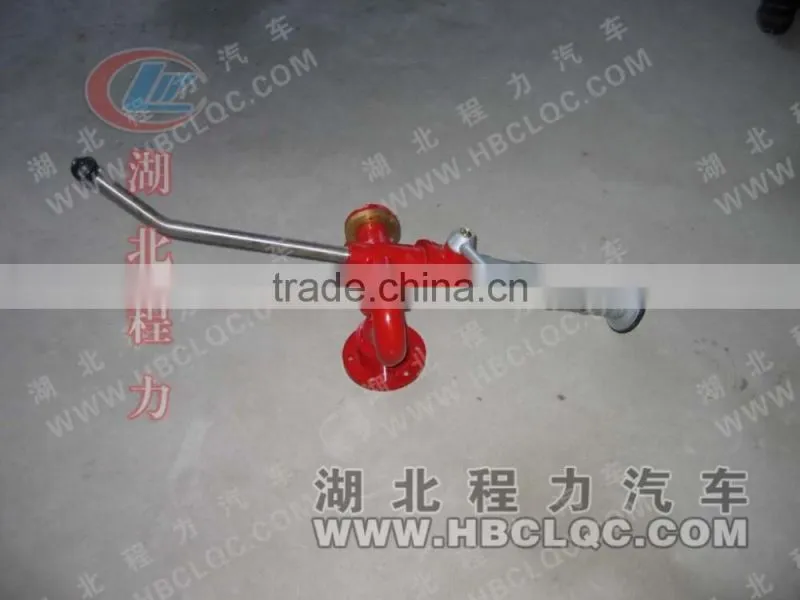

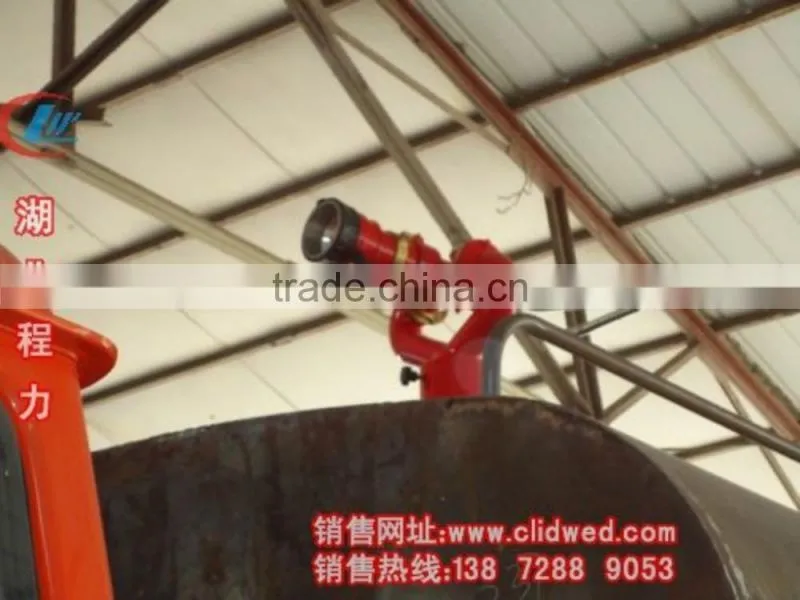

Fire fighting nozzle
Model
PL32
Pression
1.0MPa
FLow
32L/s
Range
Water≥60m；Foma≥55m
Horizontal rotation angle
360°；angle of elevation－30°～80°；
Detailed Images

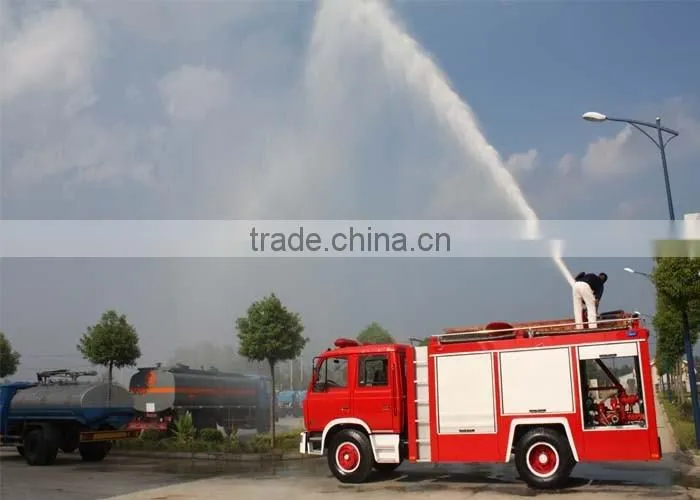

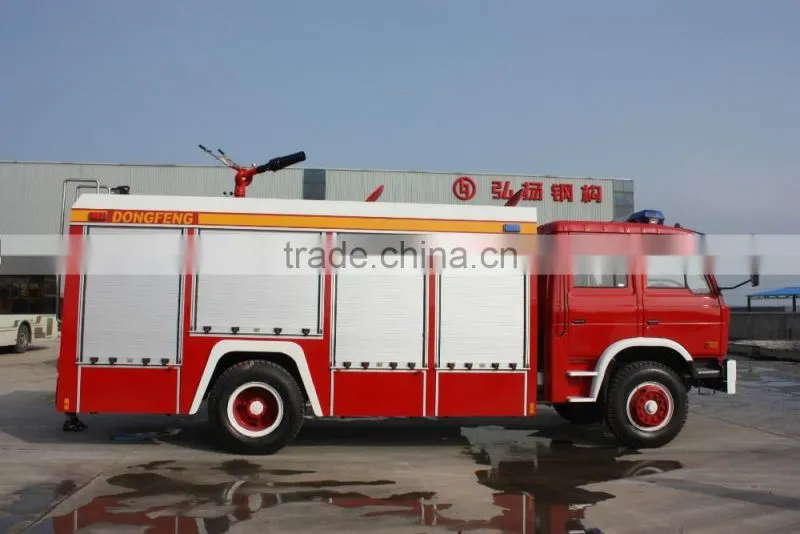

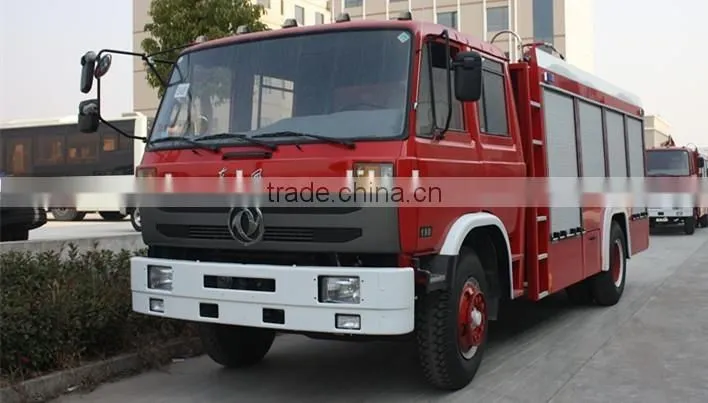

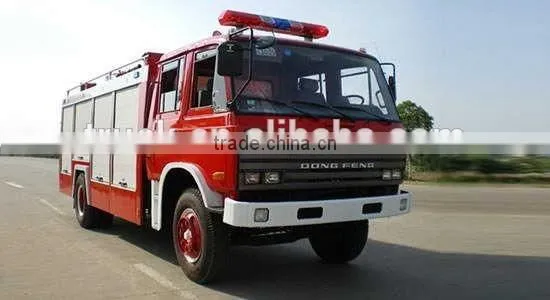

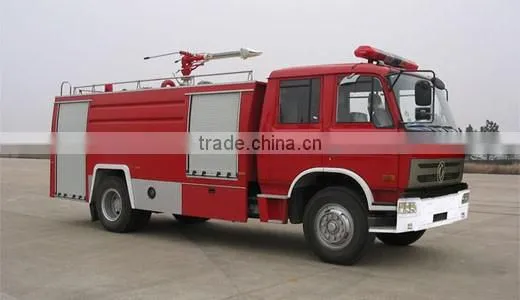

The dongfeng chassis fire fighting truck

The truck from the crew compartment, the water tank (body), pump house, equipment boxes, out of the water pump and foam system, fire cannons, electronic sirens, lights ,Equipment compartment door curtain made of aluminum alloy doors , roller, chute -oriented, open and close the lightweight, low noise ; equipment on both sides of the rear of the car and turn the pedal plate , using gas springs, door stopper double ended fixed , safe and reliable performance ;and other major components




Our Company

Our company

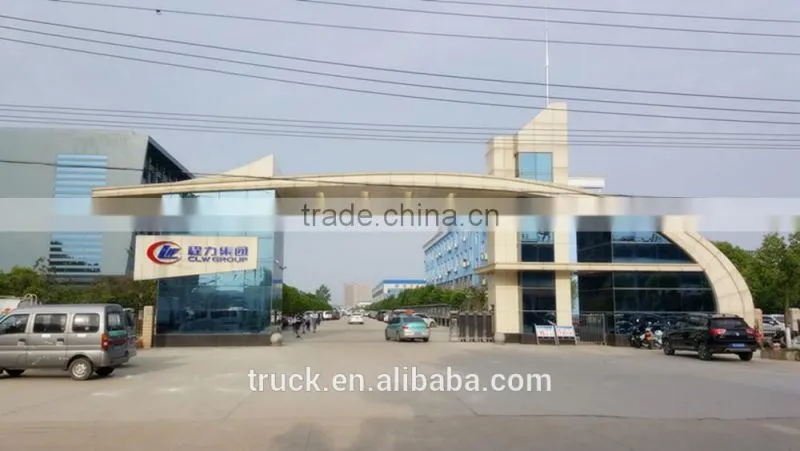

Hubei Chengli Group is located in Chengli auto industry park, Pingyuan town, southern suburb of Suizhou, Hubei. Suizhou is known as Shennong's native land, chime's hometown and "China's Special Vehicle Capital".
It is also the manufacturer of domestic well-known special vehicles used in landscape, petrochemical industry, the municipal environmental sanitation, and pressure vessel.
The registered trademark of which is "Chengliwei", and the product code is "CLW". It's the important partner of Dongfeng and Jiefang. And mainly engaged in manufacturing all kinds of special vehicles and selling full vehicle and fittings to large-scale manufacturers.
 The company is a high-tech enterprise in hubei province and has passed the certification of ISO9001, ISO16949, GJB9001 and CCC authentication of automobile products.

Advantages of our products

1.Our company ChengLi Special Automobile Co.,LTD has manufactured special truck for decades.
2.Our company possesses some advanced technologies and mature craftworks.
3.The truck produced  by us has high quality and low price.

4.Our  trucks are equiped with high quality and efficient equipments.
5.Our trucks are completely produced according to your demands and needs, they are special, professionnel and unique  for you.

Certifications
Packing & Delivery


Packaging Details: nude,waxed packing,roro ship and so on,depending on your requests.

Delivery Detail: 30 workdays
Our customers

Africa and Asia are the two major exporting regions of our's. We mostly export our product to the following countries:

Tajikistan, Nigeria, Angola, Mongolia, Garner, Philippines, Kenya, Papua, New Guinea, Zimbabwe, Saudi Arabia, Congo, Laos, Kyrgyzstan, Owe Ning, Burma, Sultan, Indonesia, Zambia, Vietnam, Kazakhstan, Kampuchea, North Korea, Liberia, Algeria, Azerbaijan, Mexico, Uzbekistan, Maldives, Fiji, Namibia, The Democratic Republic of the Congo, Afghanistan, Chile, Equatorial Guinea, Mozambique, Djibouti, Peru Bolivia, Mauritanian, The Ivory Coast, Eritrea, Russia, Benin, Iraq, Brazil, Libya, Qatar, Vanuatu, Australia, Suriname, Iran, Cuba, Cameroon, New Zealand, The Marshall Islands, South Africa, Ethiopia, St. Kitts and Nevis, Sri Lanka, Niger, Malaysia, Trinidad and Tobago, Botswana.

FAQ

1.You are factory or trading Company?
Yes, we are oversea sales department of Chengli automobile. And you are always welcomed to visit our factory.

2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.

3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.

4. Could you provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.


5. How long could we receive our goods?

 It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.

6. How about the after-sale service?
We can provide you the technical support to guide you repaire your product. And we will also send original spare parts free of charge by air. If you have special need, we can let our engineer to help you in person.
