Dongfeng 4x2 Water Tanker Fire Truck 6000L
Main Parameter show as the following:
Main Technical Parameter | |||
Product Name |
DONGFENG Fire Truck |
Overall Dimension(L*W*H)(mm) |
7900×2470×3390 |
Wheelbase(mm) |
4500 |
Tanker volume(L) |
6000 |
F/ R suspension(mm) |
1205/2135 |
Front/Rear tread(mm) |
1940/1860 |
Curb weight(kg) |
8380 |
Number of Axles |
2 |
Approach/ departure angle (° ) |
25/15 |
Max Speed (km/h) |
85 |
Cab capacity |
2+4 |
Cab Type |
Flat proof, two row |
Chassis parameter | |||
Chassis Model |
EQ1141KJ |
Chassis manufacturer |
DONGFENG Automobile Co., Ltd |
Gear Box |
DONGFENG 6 shift |
Transmission type |
Manual |
Steering Type |
Steering wheel(LHD) |
Traction Type |
4*2 |
Brake System |
Air brake |
Number of Tire |
6 with a spare |
Leaf Spring number |
8/10+8 |
Tire size/type |
10.00-20,10.00R20 |
Engine parameter | |||
Engine Model |
B190 33 |
Engine manufacturer |
DONGFENG |
Fuel type |
diesel |
Displacement(ml) |
5900 |
Emission stand |
Euro 3 |
Power(kw) |
140(190hp) |
Operation System |
Electrically Hydraulic Control |
Electric system |
24V |
Superstructure Equipment & Performance |
1.equipped CB10/40 fire pump(rear)(diversion time≤35s) |
||
2.Water tanker volume: 6m3, tanker material: high quality carbon steel | |||
3.equipped with PS40 type fire monitor,(pressure:1.0MPa,flow:40L/s,shot range≥60m,rotation angle: left or right 360°,up or down-30°~80°) | |||
4.cab type: two-row, steel structure | |||
5 steel pump room/equipments box ,5-9 Aluminum curtain door | |||
6 other equipment: 1600mm long rows of lights in the top of cab | |||
Warranty |
12 months, from the date of supply |
||
More picture of DONGFENG water tanker fire truck show as following:
Our Certificates:
Production equipments:

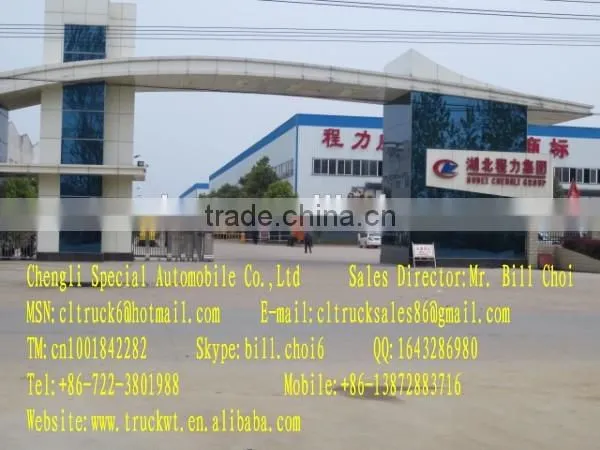

Contact Information:
The above information is just for your reference, if you have any other questions or need
more truck picture or detailed information, please feel free to contact with me via e-mail or phone, I
will try my best to help you. You can count on me. Please check my contact information as below:
