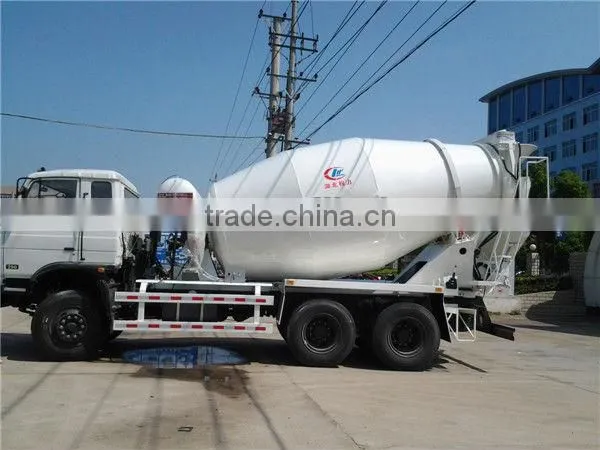

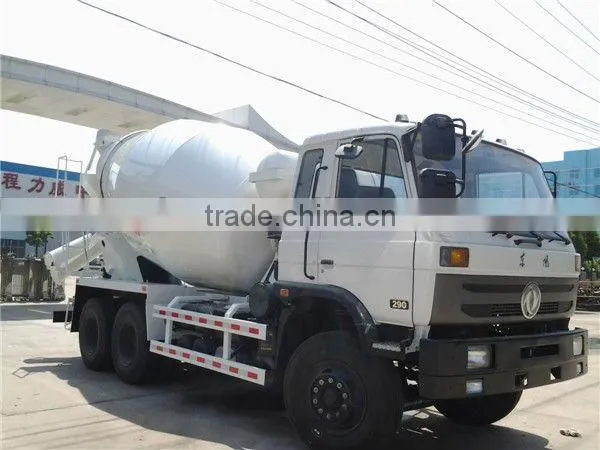

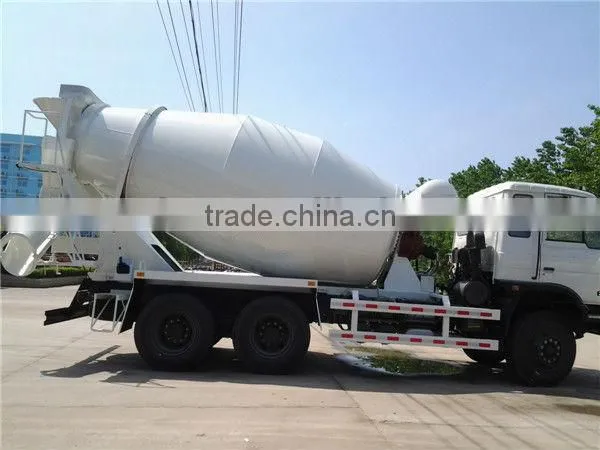

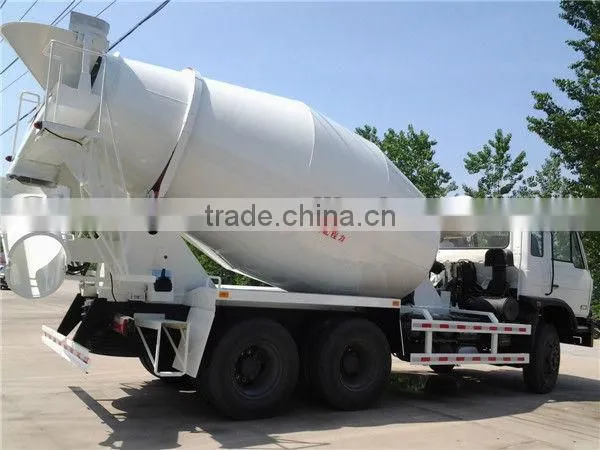

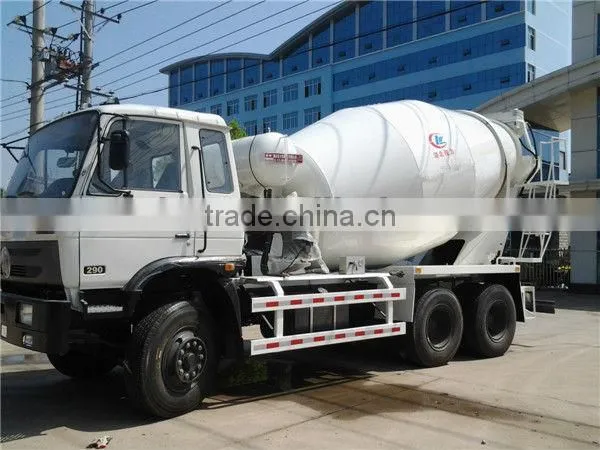

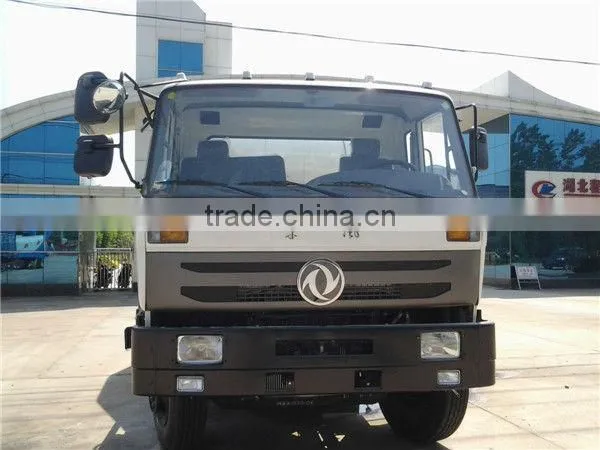

Dongfeng 6X4 truck mixer 5-8cbm
Particular advantages of our cement mixer:
1. Italy imported key parts, PMP decelerator and hydraulic slave , Chinese famous radiator, best quality.
2. Reasonable designe, pyriform-sutructure of mixing drum
3. Mixer drum turn smoothly, no segregation.
4.High quality mixer drum, no leakage.
5.Reinforced truck frame, no vibration during transportation.
6.Large slumps, good flowability, easy to discharge.
7.Automatic cleaning device, no remain.
8. Real professional factory, best price and service
5cbm dongfeng 6x4 truck mixer technical paramenters for your reference
Main Technical Parameter | ||||
Product Name |
Cement Mixer |
Gross Vehicle Weight (kg) |
24900 |
|
Rated Payload (kg) |
11805 |
Curb Weight (kg) |
12900 |
|
Tank Capacity(m³) |
5.52 |
Cab Allowed Persons |
3 |
|
Axle No. |
3 |
Wheelbase (mm) |
3850+1300 |
|
Chassis Technical Parameter | ||||
Chassis Model |
EQ1250GFJ3 |
Chassis Name |
Truck Chassis |
|
Chassis Brand |
DONGFENG |
Manufacturer |
Dongfeng Automobile Co.,LTD |
|
Overall Dimension (mm) |
8460×2470×2850 |
Tyre No. |
10 with 1 spare tyre |
|
App./ Dep. Angle(º) |
34/23 |
Tyre Spec. |
10.00-20 |
|
Leaf Spring No. |
9/10 |
Front Track (mm) |
1980 |
|
Fuel Type |
Diesel |
Rear Track (mm) |
1860/1860 |
|
Drive Type |
6x 4 |
Brake System |
Air brake |
|
Steering Wheel |
LHD |
Gear Box |
FAST 6 speed forward and 1 reverse |
|
|
Remarks: 1.Equipped with Italy PMP reducer,hydraulic motor & pump. 2. Tank material is Q345. | ||||
Engine Technical Parameter | ||||
Engine Model |
YC6M290-33 |
Emission Standard |
Euro III |
|
Displacement ( mL ) |
9839 |
Power |
215KW/290HP |
|
Cylinder No. |
6 in line |
Engine Type |
inter-cooling charged, built-in EGR |
|
Product Photoes Show

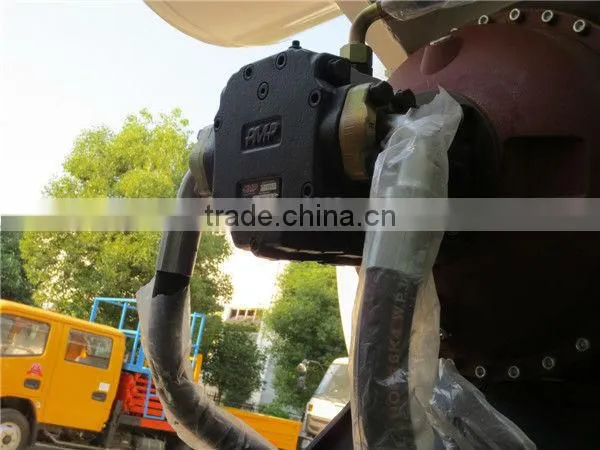

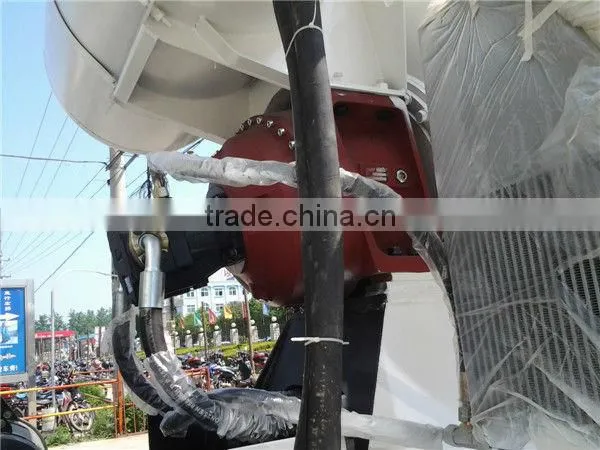

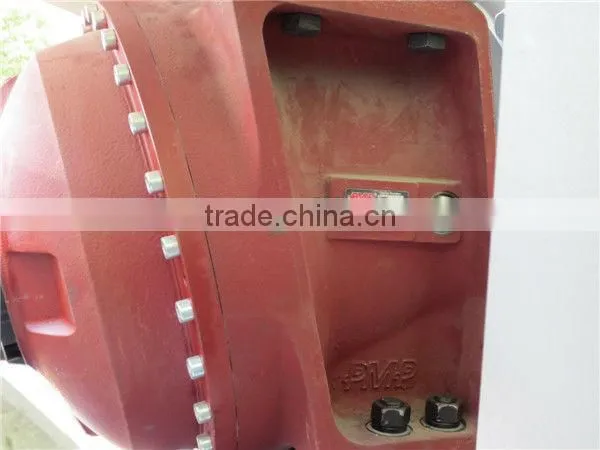

Italy PMP recelerator, hydraulic slave

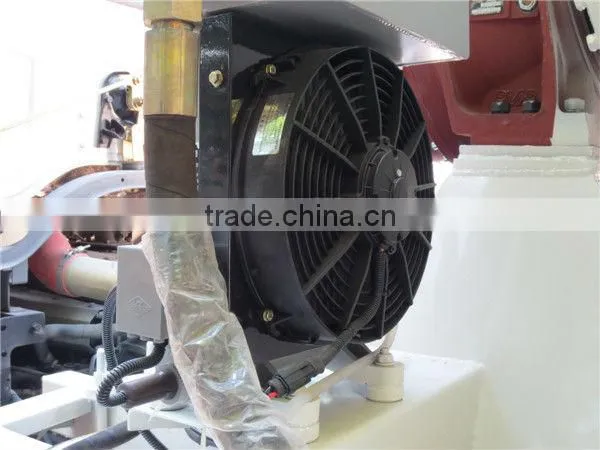

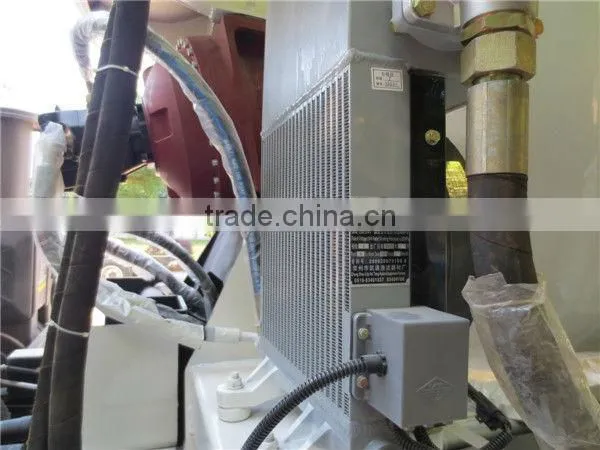

Radiator

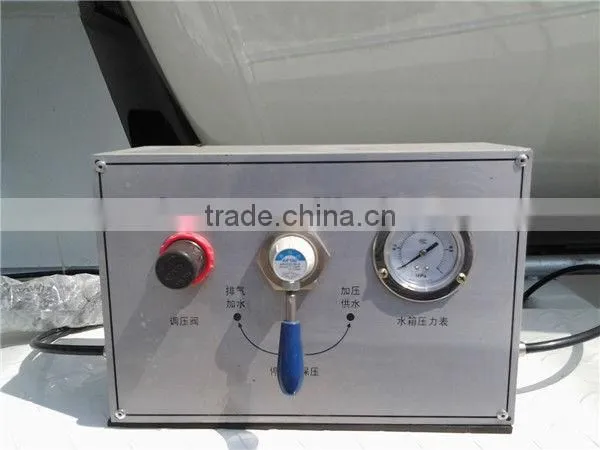

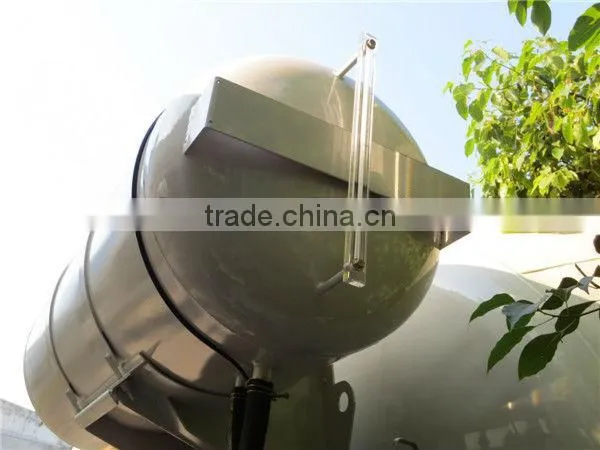

Cleaning device with content gauge

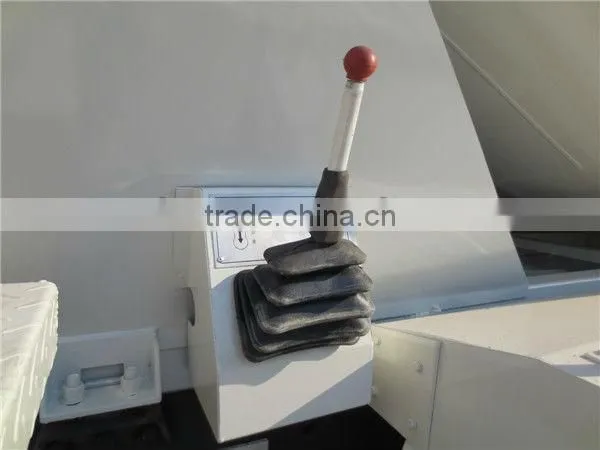

Operation handle and indicator
As a professional maufacturer of special vehicles, we can customize more than 300 kinds of special automobile for you with high quality and best price.They are
1.Chemical liquid truck
2.Water truck/Sprinkler Truck
3.Fire engine truck
4.Truck mounted with crane
5.Dump truck,tipper,heavy duty truck
6.Fuel tanker truck/ Refueling Truck
7.Van truck,insulated truck,refrigeration truck
8.Aerial Working truck
9.Fecal suction truck,sewage suction truck/high pressure cleaing truck
10.Concrete mixer/ Concrete Pump Truck
11.Self-loading garbage truck,garbage compactor truck,sealed garbage truck
12.Bulk cement truck
13.Low flatform semi-trailer,oil semi-trailer,van semi-trailer,bulk cement transportation semi-trailer,container semi-trailer,chemical liquid semitrailer,Mobile stage semi-trailer
14. Mobile stage truck, LED advertising truck ,etc more than 300 types in total.
Further information or latest price needed, please feel free to contact me by following information.
