4*2 FONTON FORLAND 6m3 Cement Mixer Truck
6m3 Cement Mixer Truck , is also called cement truck, concrete mixing truck, cement mix truck, concrete mixing transport truck, mainly used in transporting mixed concrete used in construction with mixing drum.
Product Notes:
1. This truck adopt plow shape mixing angle, perfect carbon steel, rugged wear;
2. Feed,discharge fast speed, stir well;
3. Main component adopt imported Italy equipment or Chinese brand, high quality
4.FORLAND 4*2 Chassis withYuChai 180hp, mixing volume: 6m3
5.Competitive price
Main Parameter of 4*2 FONTON FORLAND 6m3 Cement Mixer Truck
Main technical parameter | |||
Product Model |
FORLAND 6m3 Cement Mixer Truck |
Overall Dimension(L*W*H)(mm) |
7385×2490×3650 |
Mixing Volume(m3) |
6 |
Wheelbase(mm) |
3900 |
Curb weight(kg) |
7870 |
Approach/ departure angle (° ) |
24/31 |
Cab type |
One and half row |
Cab capacity |
3 |
Steering type |
LHD |
Max Speed (km/h) |
80 |
Chassis Technical Parameter | |||
Chassis Model: |
BJ1162V5PDB-D5 |
Chassis Manufacturer: |
BEIQI FONTON Motor Co., Ltd |
Brake System |
Air brake |
Transmission type: |
Manual |
Gear box |
FAST 8 shift |
Number of tire |
6 with a spare |
Axle number |
2 |
Front/rear Axle load(Kg) |
3600/10000 |
Tire size |
10.00R20(steel tire) |
Traction Type: |
4*2 |
Engine specification | |||
Engine Model: |
YC6J180-33 |
Engine Brand |
GUANGXI YUCHAI |
Engine type |
6 cylinder in line |
Engine feature |
Turbocharged and intercooled, four stroke, direct injection |
Emission stand |
Euro 3 |
Displacement(ml) |
6494 |
Fuel type: |
Diesel |
Power(kw) |
132(180hp)@2500RPM |
Superstructure parameter |
|
||
Warranty |
12 months, from the date of supply |
||

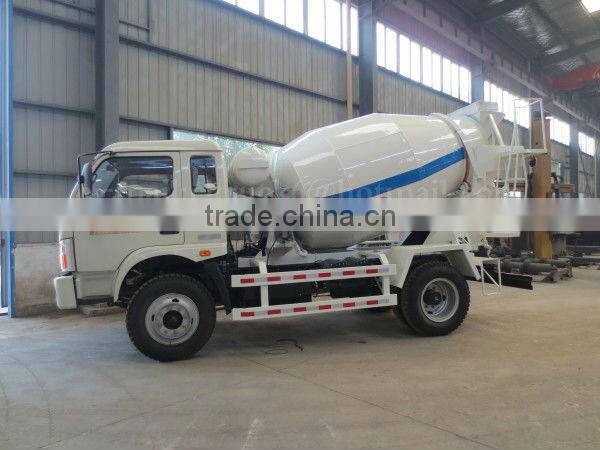

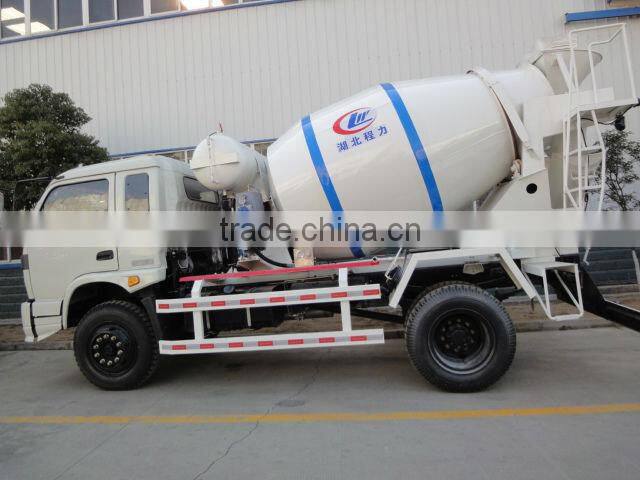

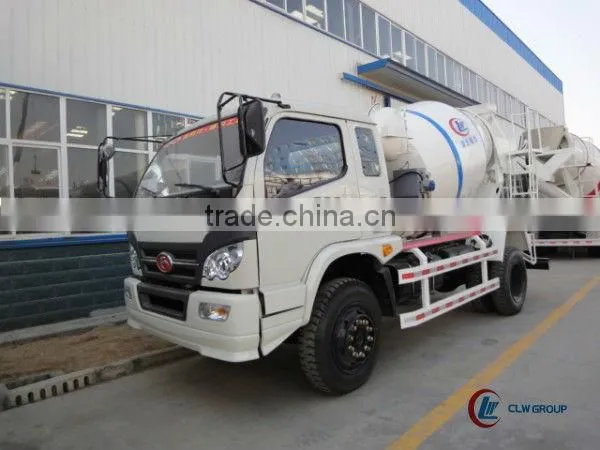

This 6m3 Cement Mixer Truck show as following:
Equipped with Italy PMP hydraulic pump, hydraulic motor, speed reducer for 6m3 Cement Mixer Truck :

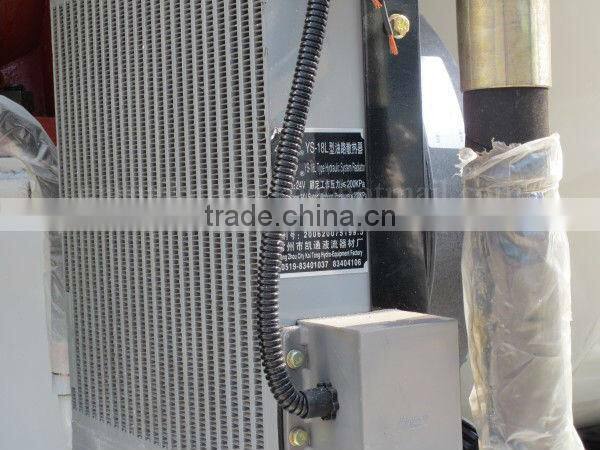

Radiator of 6m3 Cement Mixer Truck :
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
Production Equipments:
Engineering series:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
