Euro3 12m3 foton 6x4 mixing concrete drum transport truck
Brief introduction of mixing concrete transport truck
The mixing concrete transport truck is also called concrete truck mixer, truck mounted concrete mixer, ready mix concrete trucks, cement mixer truck,concrete agitator,mobile concrete truck mixer, concrete mixer drum truck, etc.
The concrete mixer truck is mainly used in concretemixing station, construction field and other place.
It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system. Our concrete mixer truck consists of seven main parts. They are hydraulic pump, reducer, mixing drum, operation system, water supply system, feed hopper, outlet hopper.
CLW brand concrete mixer drum truck are designed and developed by Chengli Special Automobile Co.,Ltd on the basis of absorbing domestic and worldwide advanced technologies. The truck is of attractive appearance, reliable and easy operation, quick discharging rate, low leftover and long service life. The capacity ranges of the concrete mixer drum truck we produce is from 3m³ to 16m³, meeting customers various needs.
diagram of mixing concrete drum transport truck
Main Features of Concrete Mixer Drum Truck
• Italy imported pump,motor and decelerator, long service life
• High quality Q345 mixing drum, reliable
• Superior cleaning system, large water tank
• Low oil consumption and maintenance
• 15 years experience with ISO9001 and CCC Certification
• Factory direct sales, competitive price
Technical parameters of 12m3 FOTON ROWOR 6x4 concrete mixer truck
Items |
Descriptions |
Specifications and Types |
General |
Truck Name |
Concrete mixer truck |
Drive Type |
6*4, left hand drive |
|
Gross Vehicle Weight(kg) |
25000 |
|
Curb Weight (kg) |
15810 |
|
Overall Dimensions L*W*H(mm) |
10350×2495×3998 |
|
Engine |
Engine Model |
WP10.340E32 |
Engine Brand |
Weichai |
|
Fuel Type |
Diesel |
|
Power |
250kw/340HP |
|
Emission Standard |
Euro III |
|
Displacement(ml) |
9726 |
|
Engine Type |
6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling |
|
Chassis |
Chassis Brand |
FOTON |
Chassis Type |
Concrete mixer truck chassis |
|
Tire No. |
10 |
|
Tire Specification |
12.00-20 Steel tire |
|
Wheelbase (mm) |
4100+1350 |
|
Axle No. |
3 |
|
Gear Box |
HOWO 9 speed forward with 2 reverse, manual |
|
Brake |
Air brake |
|
Clutch |
430 single dry clutch |
|
Air conditional |
Suitable for tropical climate |
|
Superstructure |
Valid mixing volume |
12m³ |
Mixing drum |
Pyriform Structure,Q345 |
|
Reducer |
Italy PMP |
|
Hydraulic motor |
Italy TOP |
|
Hydraulic pump |
Italy TOP |
|
Water tank volume |
400 liter |
|
Price |
Shanghai Price |
RMB374,000.00 |
SAY TOTAL THREE HUNDRED AND SEVENTY FOUR THOUSAND RMB. | ||

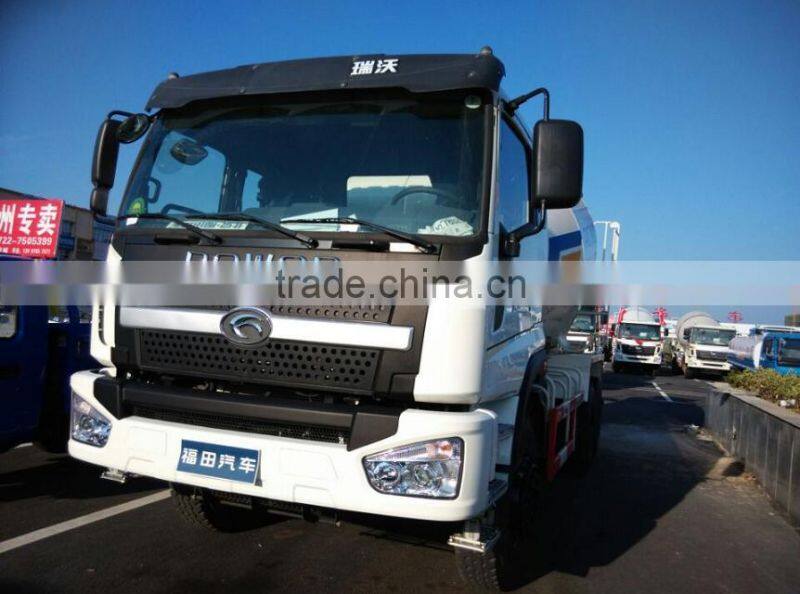

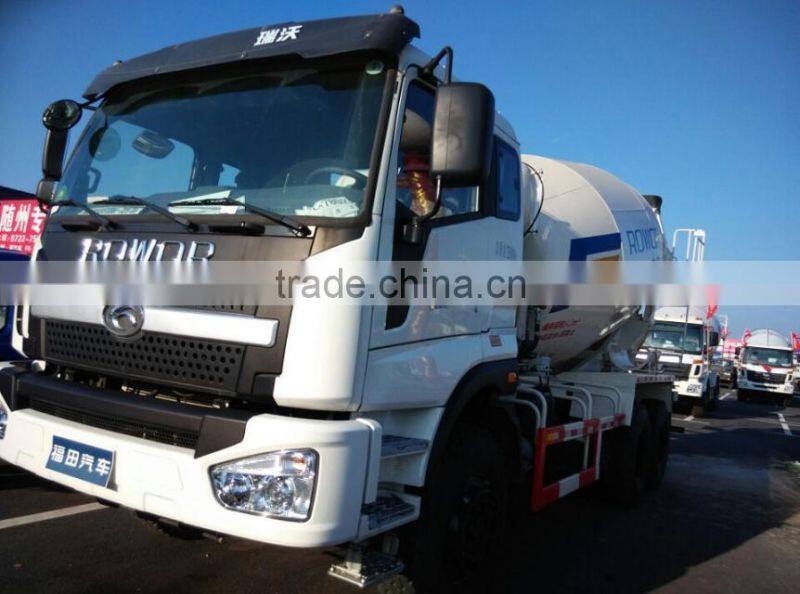

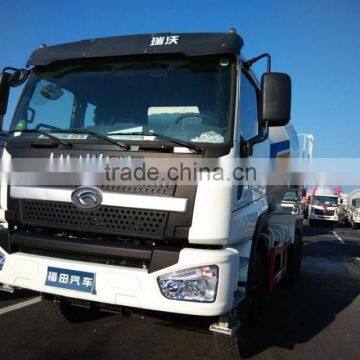

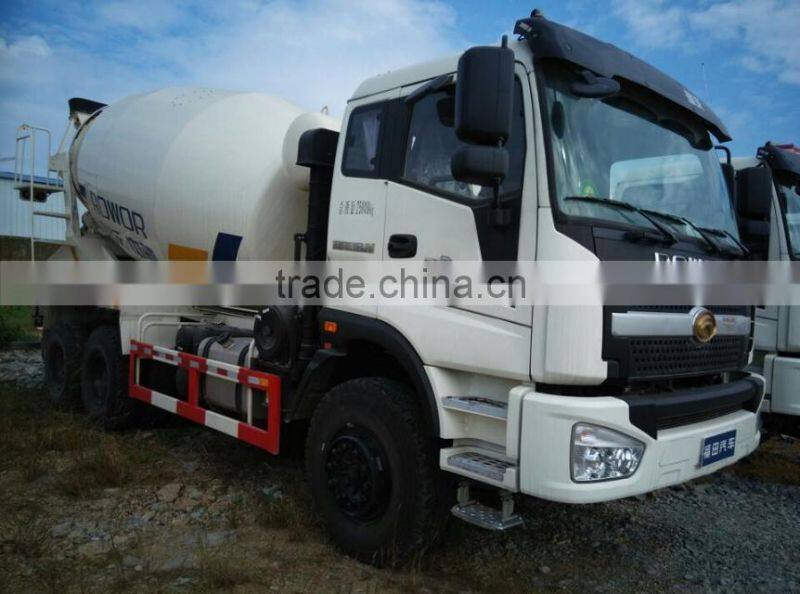

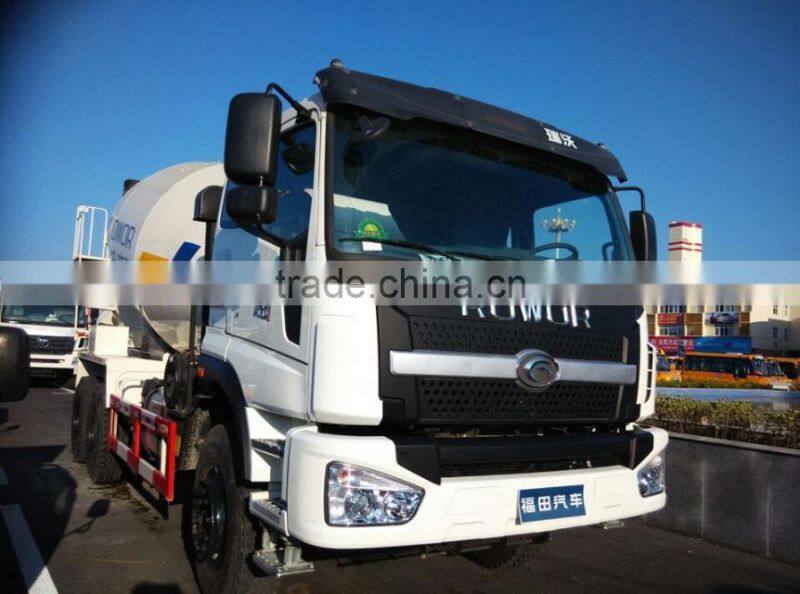

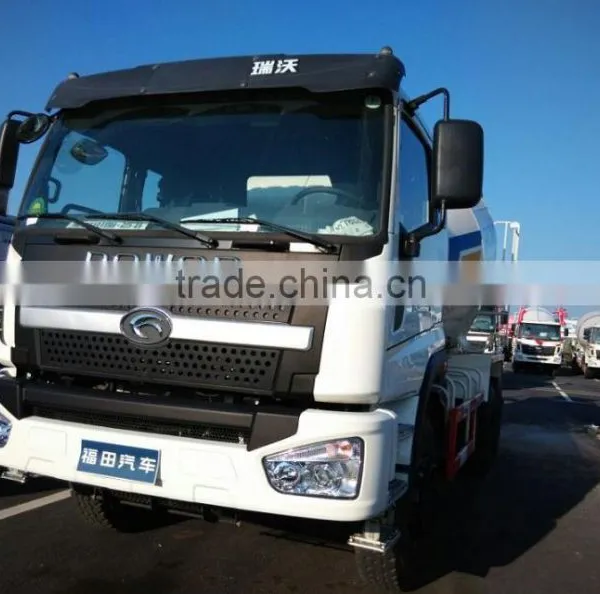

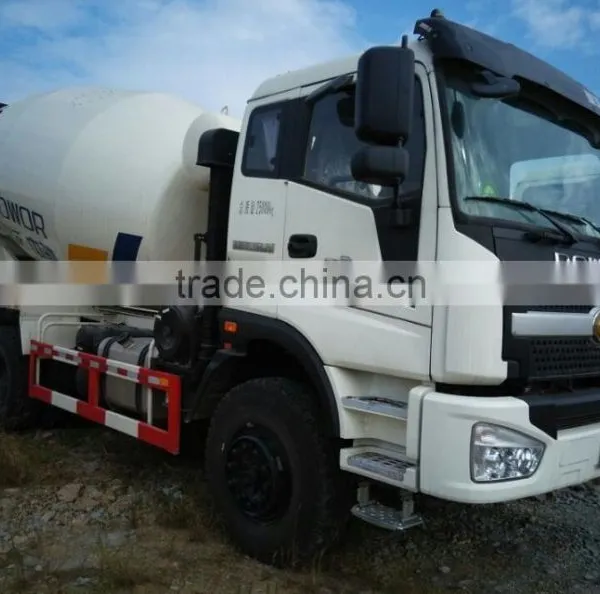

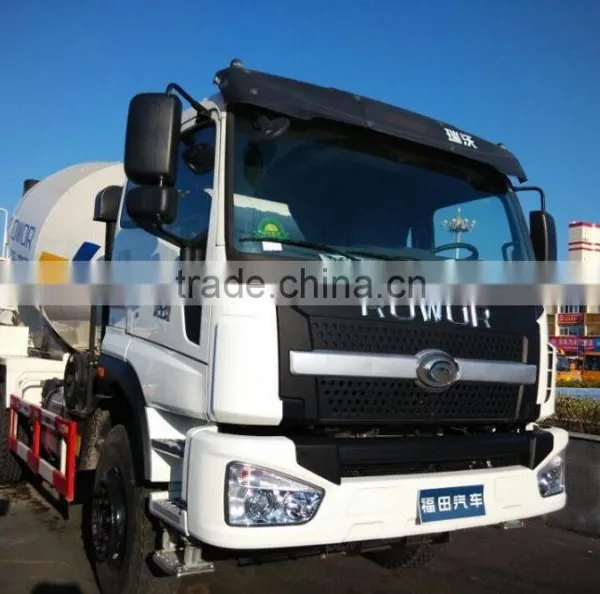

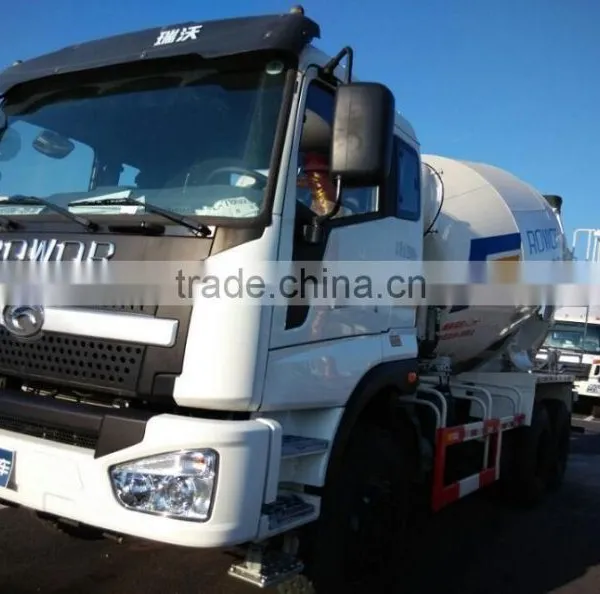

Pictures of hot sale 12 cubic meters FOTON concrete mixer truck with best price

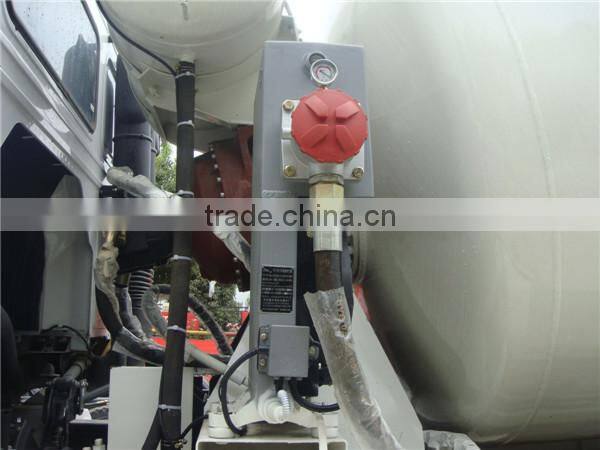

hydraulic system of concrete mixer truck

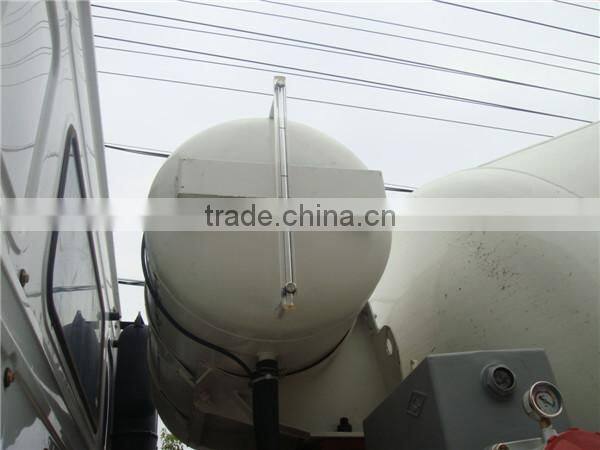

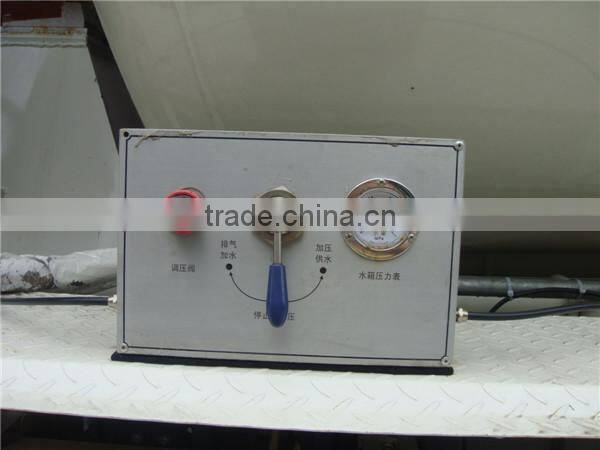

Cleaning system of concrete mixer truck

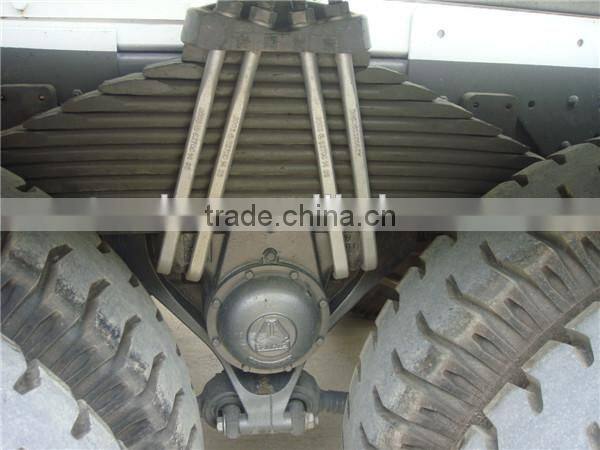

Steel spring and tires
We, Chengli Special Automobile Co., Ltd., were established in 2004. We are a professional manufacturer and exporter that is concerned with the design, development and production of special trucks, including LPG trucks, cement mixer trucks, water trucks, refrigerator trucks, cargo trucks,garbage truck, oil tanker truck,wrecker towing truck, truck mounted crane and others. We are located in Suizhou City, Hubei Province, in the middle of China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
Covering a large area, we now have over 1000 employees and an annual sales figure that exceeds USD 5 Million. We are currently exporting 30%-40% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001:2008 certification and Chinese TOP 500 Certificate. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Africa, Southeast Asia, Middle and South America, the Middle East and other regions.
More trucks we manufacture
1. Water Tanker/Sprinkler Truck/Pesticide Spraying Truck/Dust Removable Truck
2. Garbage Truck/Garbage Compactor/ Sealed Garbage Truck/ Skip Loader/ Self-loader/ Butt-type Garbage Truck/ Hook Loader
3. Sewage Suction Truck/Fecal Suction Truck/ Sewer Cleaning Truck
4. Aerial Working Truck/ Crane Truck
5. Road Wrecker
6. Road Sweeper
7. Oil tanker/ Refuelling Truck
8. LPG Storage Tanker
9. Chemical Liquid Tanker
10. Bulk Cement Tanker
11. Milk Transport Truck
12. Concrete Mixer/ Concrete Pump Truck
13. Tractor Head
14. Asphalt Distributor
15. Fire Fighting Truck
16.Van Truck/ Refrigerator Truck/ Explosion Proof Truck
17. Mobile Stage Truck/ LED Advertising Truck
18. Dump Truck/ Tipper
19. Feed Delivery Truck
20. Semi-trailer/ Flatbed Semi-trailer/ Container Semi-trailer/ Skeleton Semi-trailer/ Low flatbed Semi-trailer/Stake Semi-trailer/LPG tanker Semi-trailer
TIPS:
1. All trucks are new and be customized to meet all your requirment.
2. All trucks are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided
