Foton 3-5 m3 Small 4*2 Concrete Mixing Truck

Foton 3-5 m3 Small 4*2 Concrete Mixing Truck thumbnail-1
Foton 3-5 m3 Small 4*2 Concrete Mixing Truck thumbnail-2
Foton 3-5 m3 Small 4*2 Concrete Mixing Truck photo-1
Foton 3-5 m3 Small 4*2 Concrete Mixing Truck photo-2
US$ 20,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
CLW
Contact Supplier Request Quote Chat Now
Chengli Special Automobile Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Hubei, China
Brand Name CLW
Model Number BJ5143GJB-1
Weight 13570
Dimension(L*W*H) 6460*2255*3300
Power(W) 96
Certification 3C
Warranty One year from supply
After-sales Service Provided Engineers available to service machinery overseas

     Foton 3-5 m3 small 4*2 Concrete Mixing Truck    Fonton 3-5 m3 samll 4*2 Concrete Mixing Truck



 1 Professional Concrete Mixing Truck Manufacturer
2 ISO9001,3c
3 Easy to use
4 Excellent service
5 High Quality,Low price



Basic equipment:  hydraulic pump ,hydraulic motor, speed reducer( imported)



Product Model

BJ5143GJB-1 Concrete mixing truck

Overall Dimension(L*W*H)(mm)

6460×2255×3300

Mixing Volume(m3)

3.3

Cab type

With air conditioning

Gross weight (kg)

13570

Approach/ departure angle (° )

24/20

Payload(kg)

7460

Cab capacity

2

Curb weight(kg)

5980

Max Speed (km/h)

83

Chassis Technical Parameter

Chassis Model:

BJ1143VJPFA-1

Chassis Manufacturer:

BeiJing Fonton Automobile Co., Ltd

Gear box

145HF 5 shift with aulixl

Transmission type:

Manual

Front/ rear suspension(mm)

1230/1830

Leaf Spring number:

10/12+9

Axle number

3

Front/Rear axle load(Kgs)

     4610/8960

Wheelbase(mm)

3400

Front/Rear tread(mm)

1774/1669

Steering

Power steering

Rear axle

9 ton 1108C

Tire size

8.25-20,8.25R20,

Traction Type:

4*2

Engine specification

Engine Model:

YC4D130-33

Engine Brand

Guangxi Yuchai

Emission stand

Euro 3

Displacement(ml)

4214

Fuel type:

Diesel

Power(kw)

96/130hp

Warranty

12 months, from the date of supply

other Equipment or performances

24V Electric system, electrically hydraulic operation control, air brake

Tanker Material: Q345 carbon steel

Optional Italy PMP Brand hydraulic pump ,hydraulic motor, speed reducer

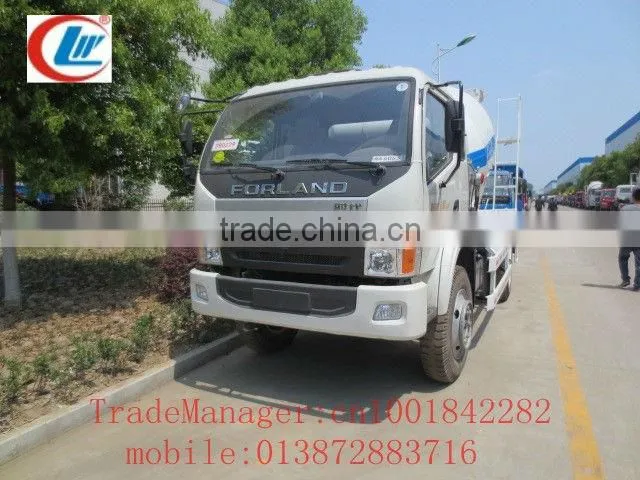

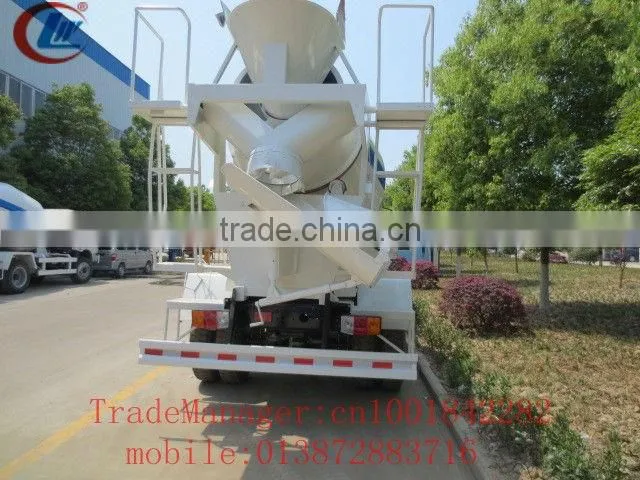

 This concrete mixing truck show as following:



Foton 3-5 m3 small 4*2 Concrete Mixing TruckFoton 3-5 m3 small 4*2 Concrete Mixing TruckFoton 3-5 m3 small 4*2 Concrete Mixing TruckFoton 3-5 m3 small 4*2 Concrete Mixing TruckFoton 3-5 m3 small 4*2 Concrete Mixing TruckFoton 3-5 m3 small 4*2 Concrete Mixing Truck



        Hubei ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.

          Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.

         We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.

            ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
