340hp 6*4 HOWO Cement Mixer Truck 10 m3

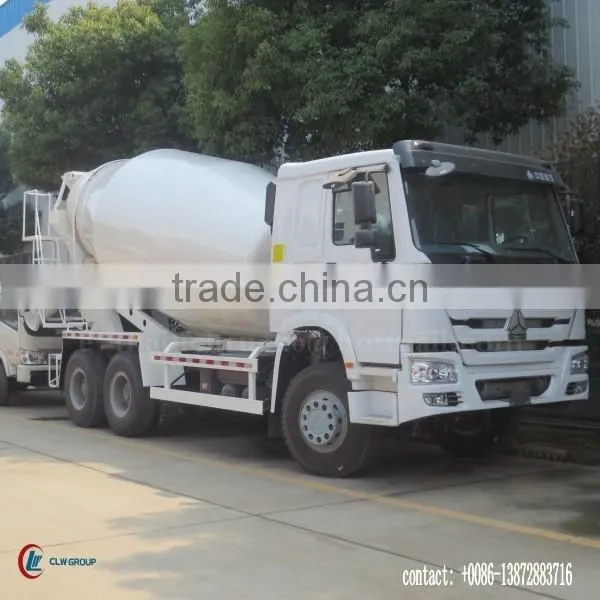

340hp 6*4 HOWO Cement Mixer Truck 10 m3 photo-1
US$ 65,900 - 69,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
SINOTRUK HOWO
Model Number:
ZZ1257
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hubei, China
Brand Name SINOTRUK HOWO
Model Number ZZ1257
Gross Vehicle Weight 40000

     340hp 6*4 HOWO Cement Mixer truck 10 m3



                 340hp 6*4 HOWO Cement Mixer truck 10 m3



        HOWO Cement Mixer truck , is also called cement truck, concrete mixing truck, cement mix truck, concrete mixing transport truck, mainly used in transporting mixed concrete used in construction with mixing drum.



Product Notes:



1. This truck adopt plow shape mixing angle, perfect carbon steel, rugged wear;

2. Feed,discharge fast speed, stir well;

3. Main component adopt imported Italy equipment  or Chinese brand, high quality

4.SINOTRUK HOWO 6*4 Chassis with 340hp, mixing volume: 10-12m3

5. Factory direct sale, ensure reliable quality and competitive price



Main Parameter of   340hp 6*4 HOWO Cement Mixer truck 10 m3

Main technical parameter

Product Model

HOWO Cement Mixer truck

Overall Dimension(L*W*H)(mm)

9720×2500×3990

Mixing Volume(m3)

10

Steering Type  LHD / RHD with power steering ZF8098

Wheelbase(mm)

4025+1350   Axle number

3

Curb weight(kg)


14270

Max Speed (km/h)

78

Cab Capacity

3

Cab Type

HW76 flat proof, air conditioning

Chassis Technical Parameter

Chassis Model:

ZZ1257

Chassis Manufacturer:

CNHTC jinan Commercial Vehicle co., Ltd

Brake System

Air brake

Transmission type:

Manual

Gear Box  Howo 10 shift (10 forward and 2 reverse)



Traction Type:



6*4

Leaf Spring number:

9/12,10/12,4/12,4/-

Front/Rear axle load(Kgs)

9000/16000

Tire size

11.00R20,12.00R20

Tire Number

10 with a spare

Engine specification

Engine Model:



        WD615.95C

Engine Brand

CNHTC

Emission stand

Euro 3

Displacement(ml)

9726

Fuel type:

Diesel

Power(kw)



    249 (340hp)

Warranty

12 months, from the date of supply

other Equipment or performances

1.24V Electric system, electrically hydraulic operation control

2.Tanker Material: 5 mm Q345  carbon steel

3.Equipped with Italy PMP Brand hydraulic pump ,hydraulic motor, speed reducer or optional China Brand

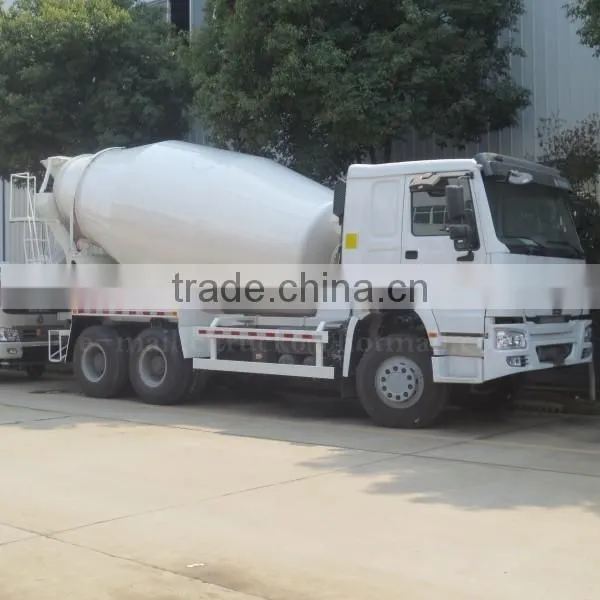

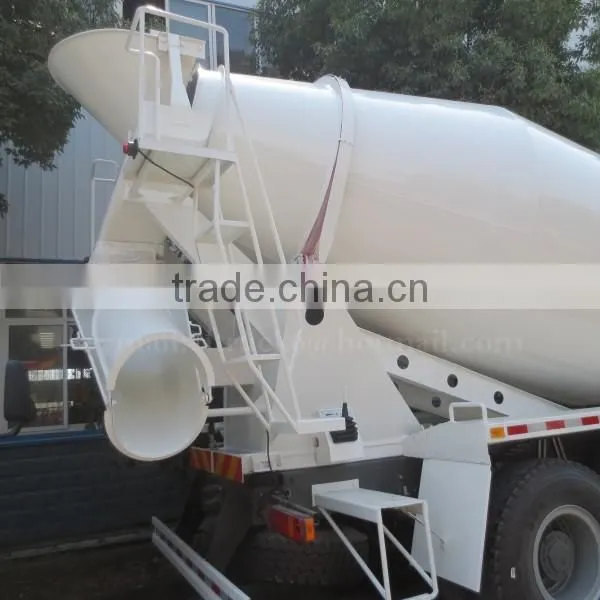

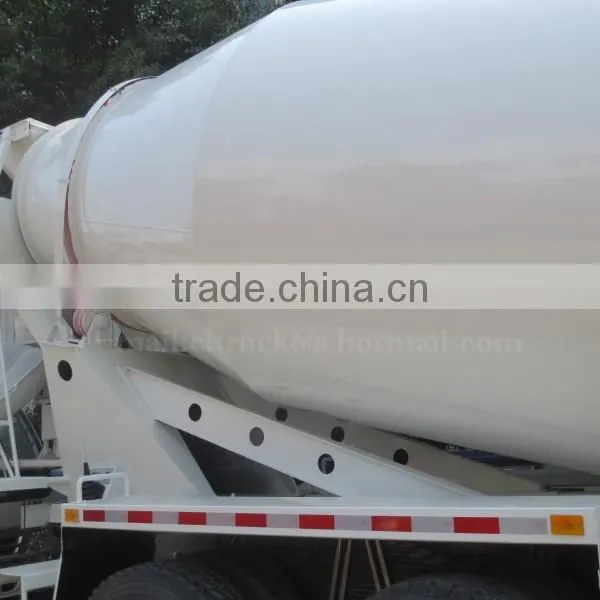

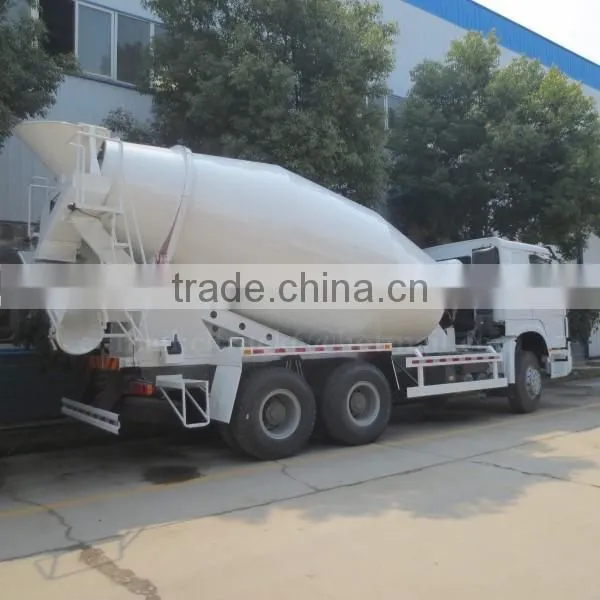

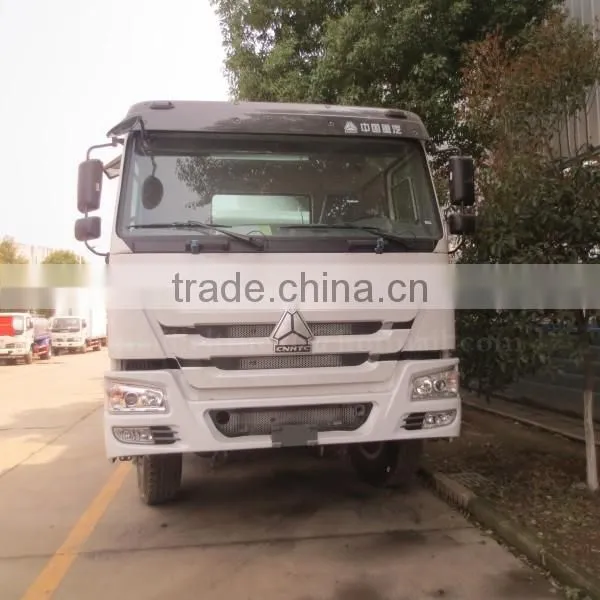

Multi-faceted Show of   340hp 6*4 HOWO Cement Mixer truck 10 m3 :



340hp 6*4 HOWO Cement Mixer truck 10 m3



340hp 6*4 HOWO Cement Mixer truck 10 m3



340hp 6*4 HOWO Cement Mixer truck 10 m3



340hp 6*4 HOWO Cement Mixer truck 10 m3



340hp 6*4 HOWO Cement Mixer truck 10 m3



340hp 6*4 HOWO Cement Mixer truck 10 m3

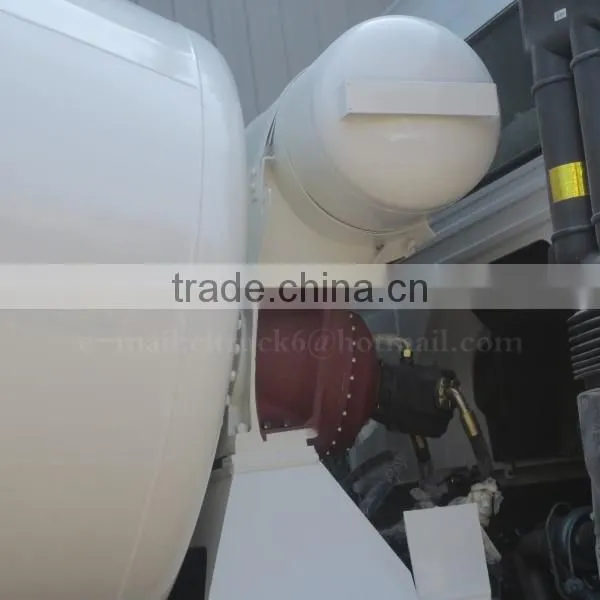

Imported Italy PMP hydraulic pump ,hydraulic motor, speed reducer for  HOWO Cement mixer truck :



340hp 6*4 HOWO Cement Mixer truck 10 m3



400 L water tanker for  HOWO Cement mixer truck :



340hp 6*4 HOWO Cement Mixer truck 10 m3

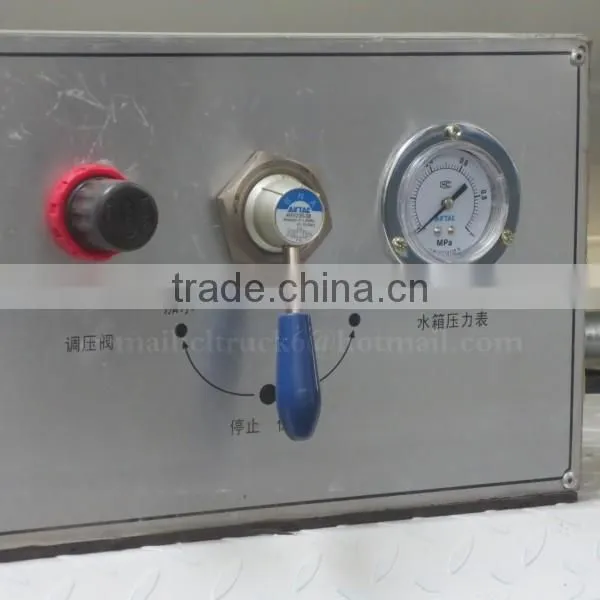

Air pressure supply water system for  HOWO Cement mixer truck :



340hp 6*4 HOWO Cement Mixer truck 10 m3

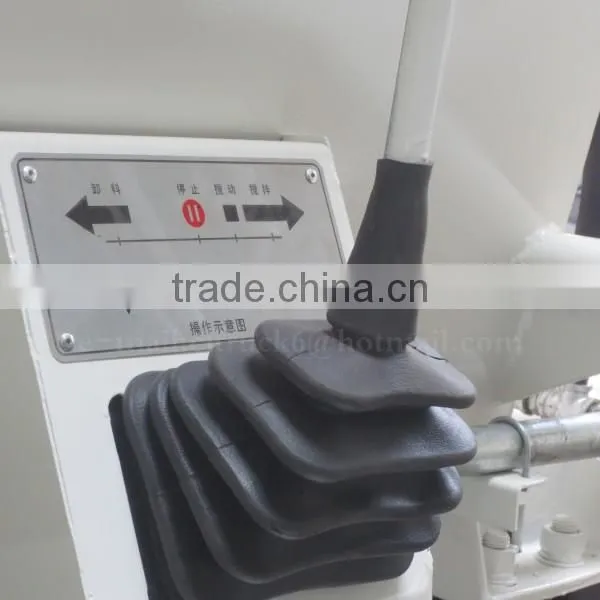

Operation hand lever for  HOWO Cement mixer truck :



340hp 6*4 HOWO Cement Mixer truck 10 m3
