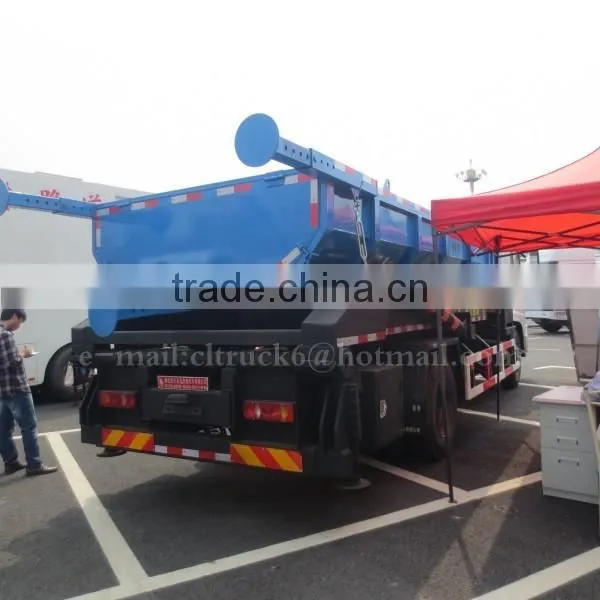

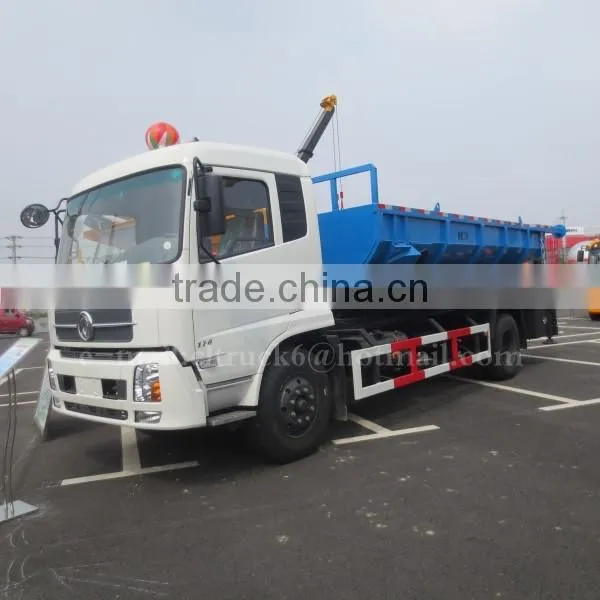

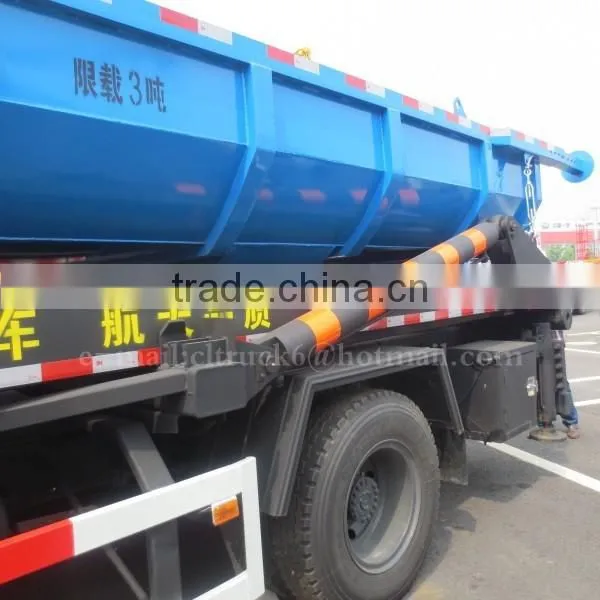

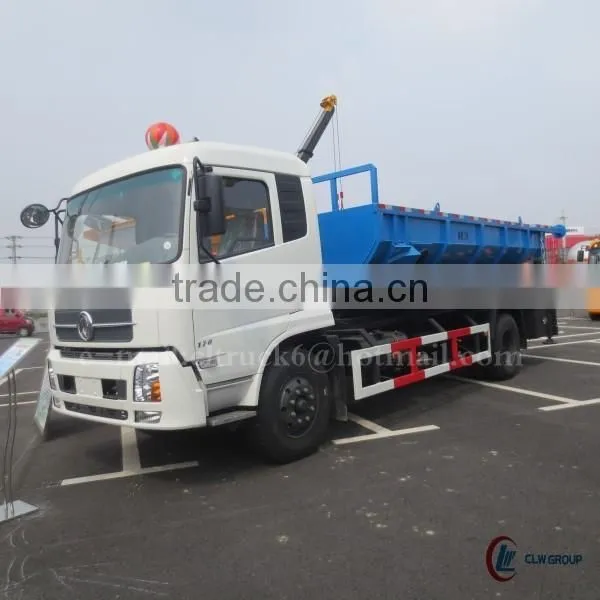

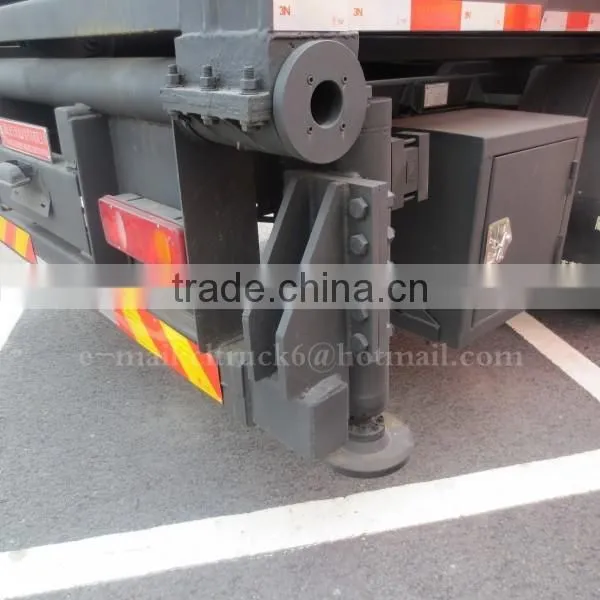

4*2 DONGFENG 12ton Concrete Silo Transport Truck
Concrete Silo Transport Truck , is also cement silo truck, mainly composed of truck chassis, sub-frame assembly, dumping body assembly, hydraulic system, electrical system and other components, the main function is loading and unloading diameter 2500mm concrete silo, this kind of truck simplifie the process of loading and unloading of concrete storage tank, saving time and labor, reducing labor intensity
of loading and unloading the storage tank , greatly improve handling efficiency and economic benefits.
Product Notes & Main Advantage:
1. Can move the concrete silo of less than 13ton;
2. Saving time and labor, reducing labor intensity,
3. DONGFENG 4*2 Chassis with 185hp or 210hp,volume: 18-22m3
4. Single truck can be equipped with more than one silos
5. Adjustable hook, can be equipped with a variety of tank
Main Parameter of 4*2 DONGFENG 12ton Concrete Silo Transport Truck
Main technical parameter | |||
Product Model |
DONGFENG Concrete Silo Transport Truck |
Overall Dimension(L*W*H)(mm) |
8600×2500×2760 |
Volume(m3) |
18-22 |
Steering Type | LHD with power steering |
|
Wheelbase(mm) |
5000 | Axle number | 3 |
|
Curb weight(kg) |
9305 | Max Speed (km/h) |
90 |
Cab Capacity |
3 | Cab Type |
Single sleeper, flat proof, air conditioning |
Chassis Technical Parameter | |||
Chassis Model: |
DFL1160 |
Chassis Manufacturer: |
DONGFENG Motor Co., Ltd. |
Brake System |
Air brake |
Transmission type: |
Manual |
| Gear Box | 6 shift (6 forward and 1 reverse) |
Traction Type:
|
4*2 |
Tire size |
10.00R20,10.0020 |
Tire Number |
6with a spare |
Engine specification | |||
Engine Model: |
ISDe185 40
|
Engine Brand |
DONGFENG |
Emission stand |
Euro 3 |
Displacement(ml) |
6700 |
Fuel type: |
Diesel |
Power(kw) |
136 (185hp) |
Warranty |
12 months, from the date of supply |
||
other Equipment or performances |
1.24V Electric system, electrically hydraulic operation control |
||
2.Tanker Material: 5 mm Q235 carbon steel | |||
3.Equipped with dumping body assembly, hydraulic system, electrical system and other components, | |||
Multi-faceted Show of 4*2 DONGFENG 12ton Concrete Silo Transport Truck:
1, Packaging: nude or waxing;
2. Shipping: in the container or Ro-Ro ship or bulk ship according to the customer’ order or requirement;
1. Factory direct supply: reliable quality and fast delivery;
2. Warranty; from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service: lifelong
4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
Factory Show:
Production Equipments:
1. Are you manufacturer or trading company?
We are direct manufacturer;
2. Min Order Quantity:
One unit or one sets;
3. Handling Time:
Within one day;
4. Payment Terms:
30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
5. Specified delivery date from the Date of Order:
Depend on the detailed request and purchase order quantity.
6. Contact Information:
For any question or request, please contact with me freely according to the following information:
