190hp dongfeng 4x2 6m3 small concrete mixer truck
Our concrete mixer truck is mainly used in cement mixing station, construction field and other place. It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system. Our concrete mixer truck consists of seven main parts. They are hydraulic pump, reducer, mixing drum, operation system, water supply system, feed hopper, outlet hopper.
Diagram of concrete cement mixer truck

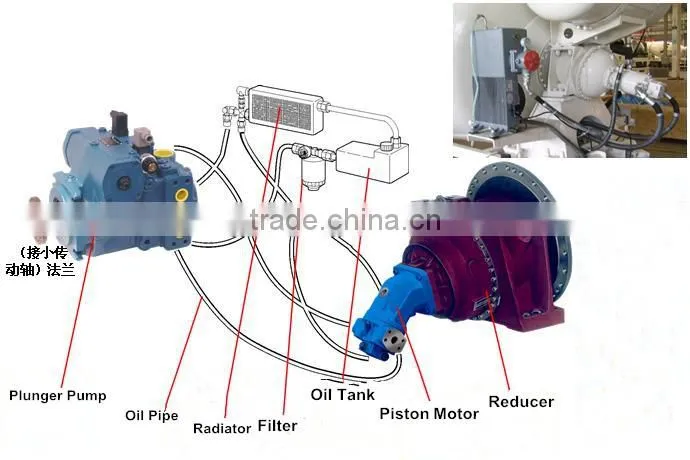

1. hydraulic system

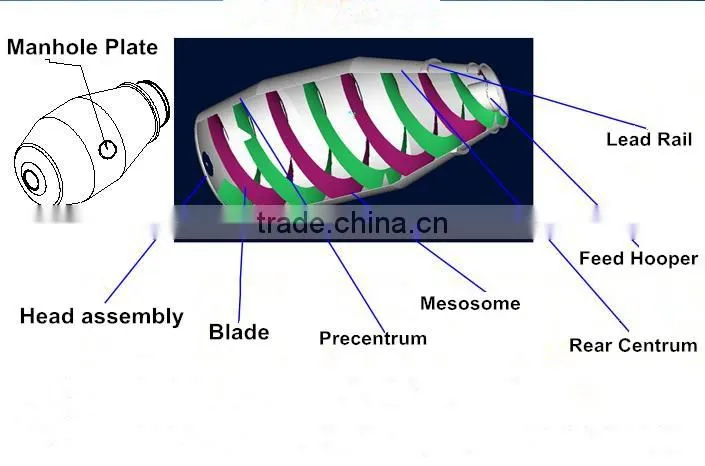

2.Mixing Drum

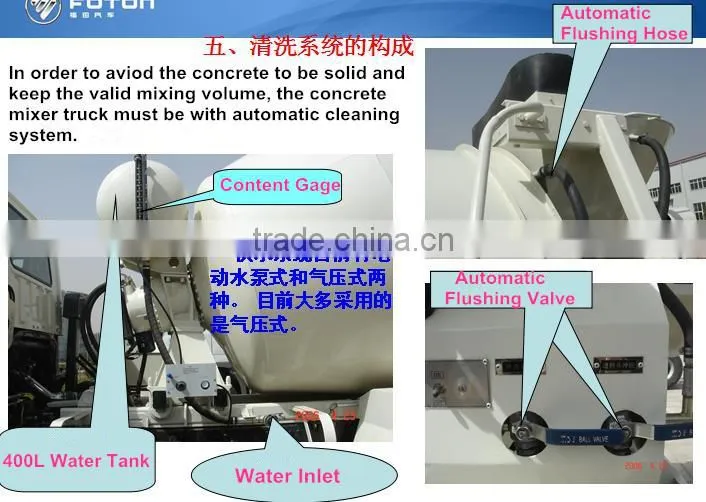

3.Cleaning System

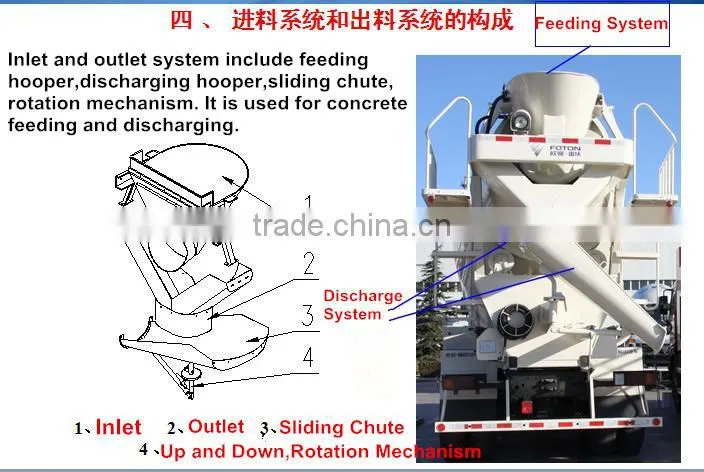

4. Loading and discharging system

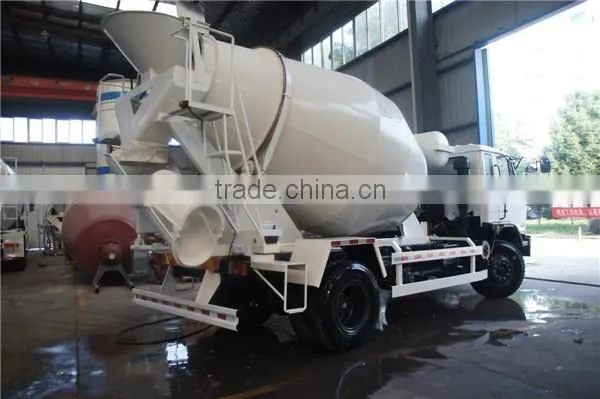

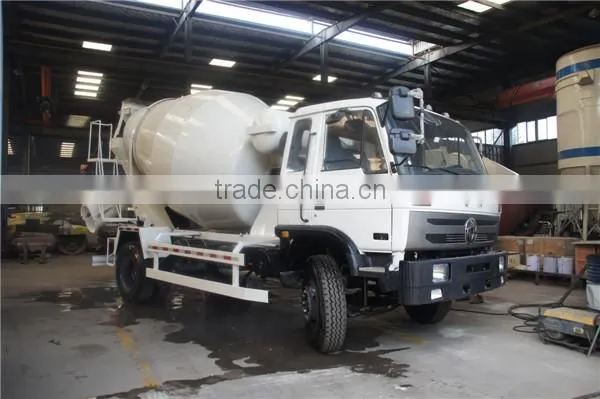

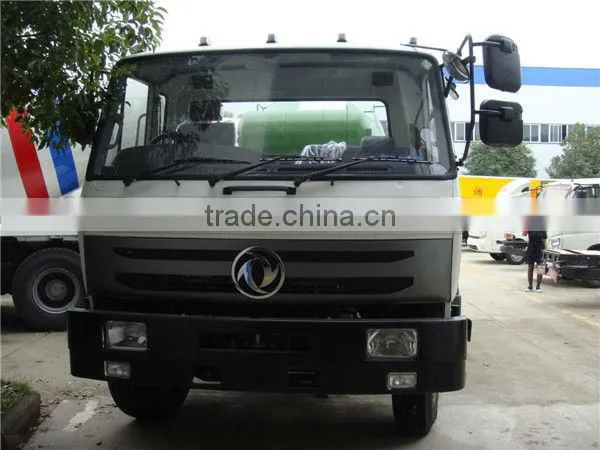

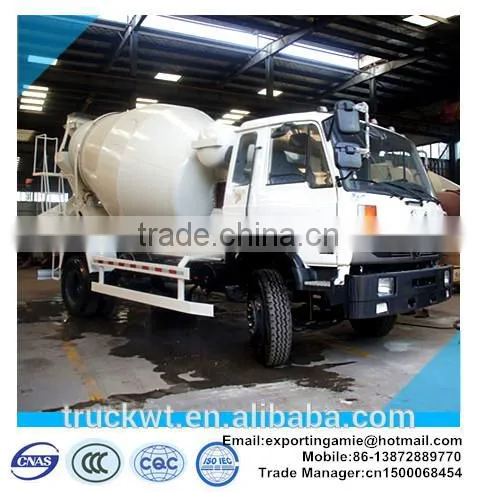

Photoes of dongfeng 4x2 6m3 small concrete mixer truck

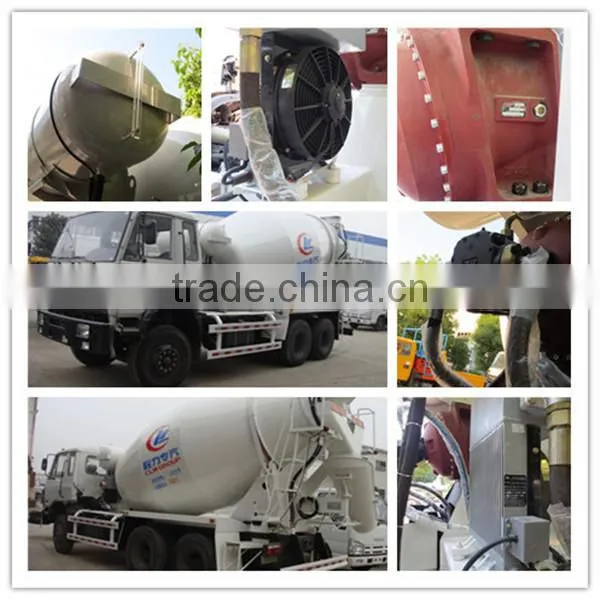

Main parts
Technical Paramters of 190hp dongfeng 4x2 6m3 small concrete mixer truck
Main Technical Parameter | ||||
Product Name |
Cement Mixer |
Product Model |
CLW5120GJB3 |
|
Gross Vehicle Weight (kg) |
12000 |
Curb Weight (kg) |
7605 |
|
Tank Capacity(m³) |
6 |
Cab Allowed Persons |
3 |
|
Axle No. |
2 |
Wheelbase (mm) |
3850+1300 |
|
Chassis Technical Parameter | ||||
Chassis Model |
EQ3120GSZ3GJ |
Chassis Name |
Truck Chassis |
|
Chassis Brand |
DONGFENG |
Manufacturer |
Dongfeng Automobile Co.,LTD |
|
Overall Dimension (mm) |
7100×2462×2690 |
Tyre No. |
6 with 1 spare tyre |
|
App./ Dep. Angle(º) |
25/28 |
Tyre Spec. |
10.00-20 |
|
Leaf Spring No. |
8/10+7 |
Front Track (mm) |
1980 |
|
Fuel Type |
Diesel |
Rear Track (mm) |
1940/1860 |
|
Drive Type |
4x2 |
Brake System |
Air brake |
|
Steering Wheel |
LHD |
Gear Box |
FAST 5 speed forward and 1 reverse |
|
Engine Technical Parameter | ||||
Engine Model |
B190 33 |
Emission Standard |
Euro III |
|
Displacement ( mL ) |
5900 |
Power |
140KW/190HP |
|
Cylinder No. |
6 in line |
Engine Type |
inter-cooling charged, built-in EGR |
|
Superstructure Parameter | ||||
Mixing Drum Capacity |
6 cubic meters |
Drum Material |
Q345 |
|
Hydraulic System |
Imported, Chinese are optional |
Reducer |
Imported, Chinese are optional |
|
Radiator |
Chinese |
Water Tank Capacity |
400L |
|
We, Chengli Special Automobile Co., Ltd., were established in 2004. We are a professional manufacturer and exporter that is concerned with the design, development and production of special trucks, including LPG trucks, cement mixer trucks, water trucks, refrigerator trucks, cargo trucks,garbage truck, oil tanker truck,wrecker towing truck, truck mounted crane and others.
We are located in Suizhou City, Hubei Province, in the middle of China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
Covering a large area, we now have over 1000 employees and an annual sales figure that exceeds USD 5 Million. We are currently exporting 30%-40% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001:2008 certification and Chinese TOP 500 Certificate.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Africa, Southeast Asia, Middle and South America, the Middle East and other regions.

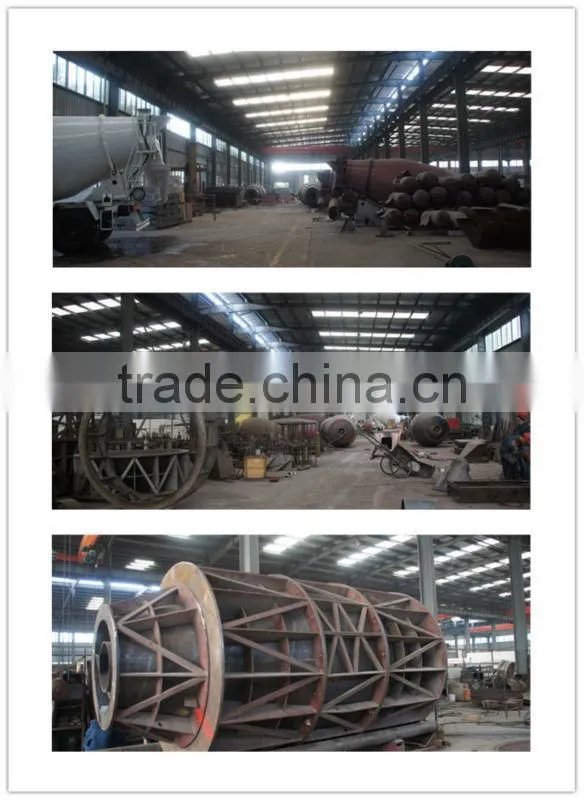

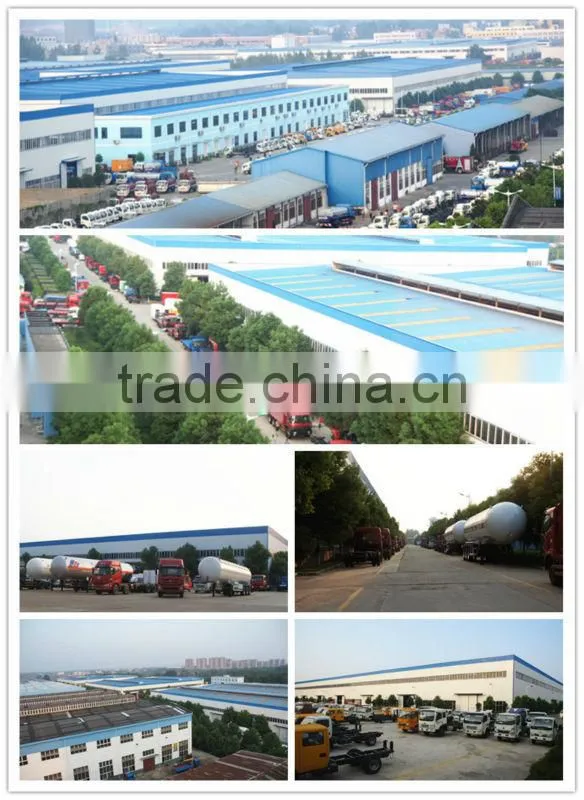

Factory Show
Factory certification
Our products range
1. Water Tanker/Sprinkler Truck/Pesticide Spraying Truck/Dust Removable Truck
2. Garbage Truck/Garbage Compactor/ Sealed Garbage Truck/ Skip Loader/ Self-loader/ Butt-type Garbage Truck/ Hook Loader
3. Sewage Suction Truck/Fecal Suction Truck/ Sewer Cleaning Truck
4. Aerial Working Truck/ Crane Truck
5. Road Wrecker
6. Road Sweeper
7. Oil tanker/ Refuelling Truck
8. LPG Storage Tanker
9. Chemical Liquid Tanker
10. Bulk Cement Tanker
11. Milk Transport Truck
12. Concrete Mixer/ Concrete Pump Truck
13. Tractor Head
14. Asphalt Distributor
15. Fire Fighting Truck
16.Van Truck/ Refrigerator Truck/ Explosion Proof Truck
17. Mobile Stage Truck/ LED Advertising Truck
18. Dump Truck/ Tipper
19. Feed Delivery Truck
20. Semi-trailer/ Flatbed Semi-trailer/ Container Semi-trailer/ Skeleton Semi-trailer/ Low flatbed Semi-trailer/Stake Semi-trailer/LPG tanker Semi-trailer
TIPS:
1. All trucks are new and be customized to meet all your requirment.
2. All trucks are with 12 months quality guarantee.
