Led Advertising Truck Body With SLT Led Screen P8 For Customized
- 800 Unit / Units per Month
- Shanghai port
- T/T
- 60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
- 80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
- 60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
- 2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
- Led flood light, led Gas Station Lamp, LED canopy light 100w
- 120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
Place of Origin: | Hubei, China | Brand Name: | STL | Model Number: | P8 |
Usage: | Outdoor | Tube Chip Color: | Full Color | Display Function: | Animation |
Pixels: | Other, 8mm | Screen Dimension: | 4.69M2 |
Product Description
Led Advertising Truck Body With SLT Led Screen P8 For Customized
We are manufacture of Led advertising truck,Led truck body more than 10 years, our Led truck brand: Foton,Dongfeng,Howo,Jac,etc
1. You requested Led truck body dimension as below :
The truck dody dimension(L*W*H)=3300*2000*1980mm
Left and right Led screen dimension(L*H)=2816*1664mm=4.69m2
Rear led screen dimension(L*H)=1536*1536mm=2.36m2

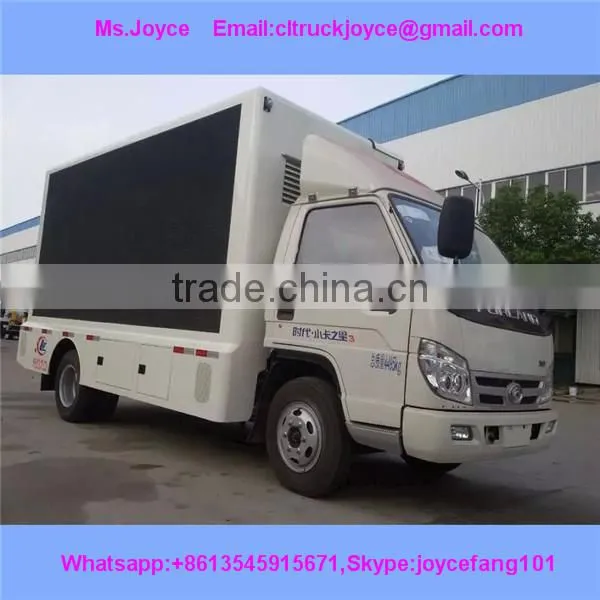

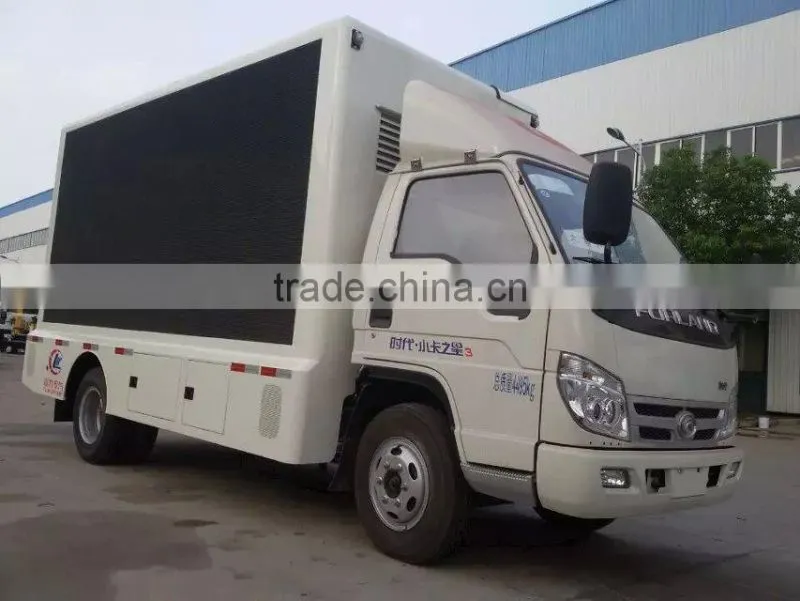

Left,right and rear sides with Led screen P8, the truck body similar as below picture:
The below pictures for you reference only, because your truck is Jac brand, below truck is Foton brand

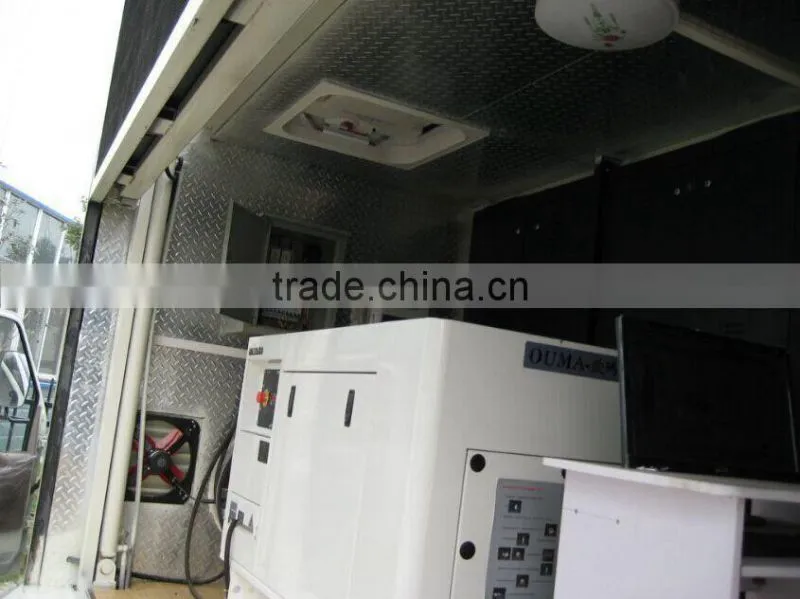

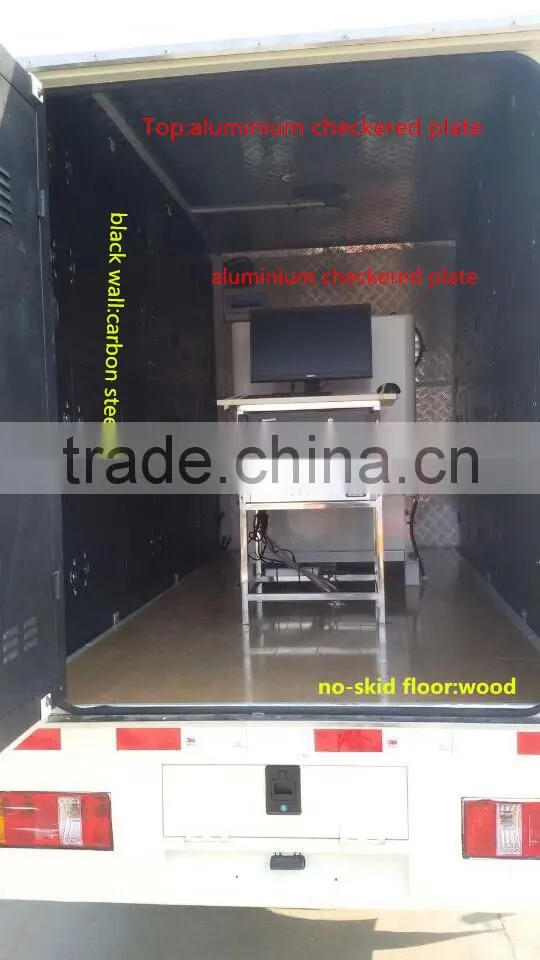

2. The truck body inside material as below show :
The Led truck body inside material : aluminium checkered plate
Floor : Non slip wood flooring
Led screen inside: black color, carbon steel material
The Led truck body inside with circuit box
The truck body inside with Fan.( when the generator is working, the fan is working to make cooling)
The ceiling material is aluminium checkered plate,with ventilation system, 1unit Led light.

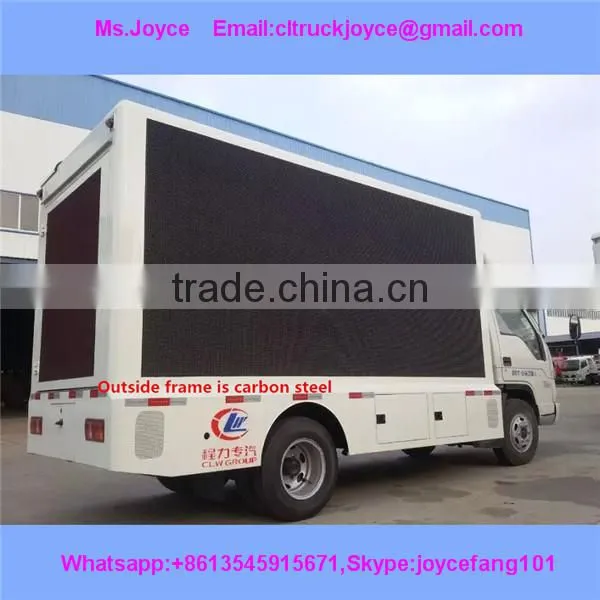

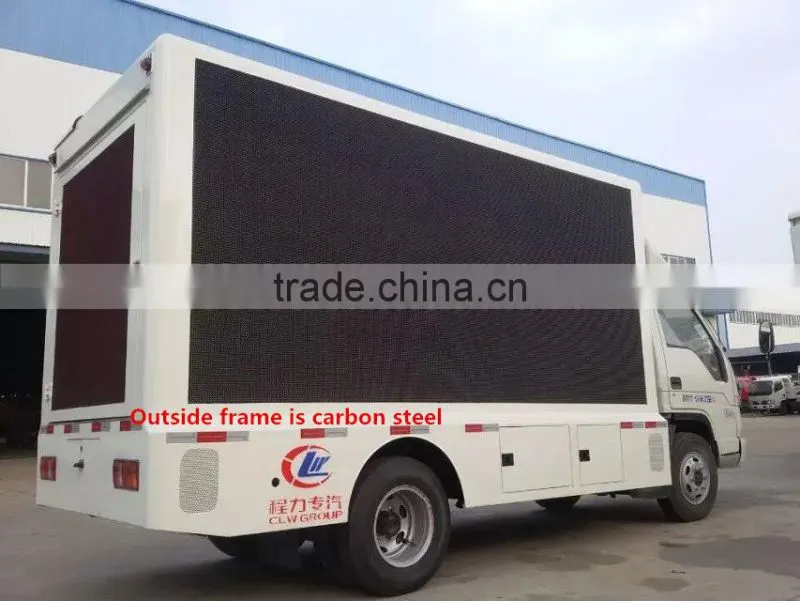

3. The outside frame material : carbon steel
4. The P8 STL led screen technical parameters
Specification of P8 Led screen :
Outside P8 Led screen, it’s made up of red Led, green Led and blue Led, then fixed it on the plastic kit.
The led screen can show video, pictures, words, etc.
by Drive IC, it can form 16,777,216 colors.
Module features
Super bright Led and high quality plastic kit
High contrast can achieve a good display effect
Weight is easy to install, remove
Constant current mode is used to drive LED, which is uniform and low power consumption.
Pixel pitch is 8mm, a total of 32*16 pixels, each pixel is composed of 1R1G1B

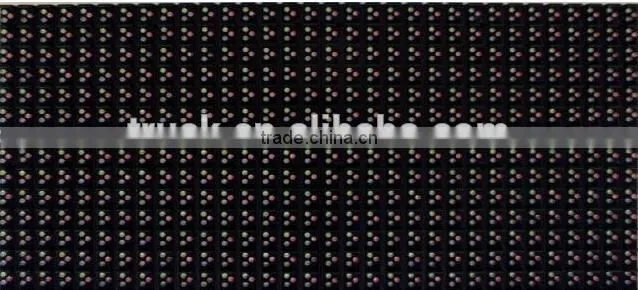

Module image
front view (The driver IC is SOP, which is a constant current driver IC.)

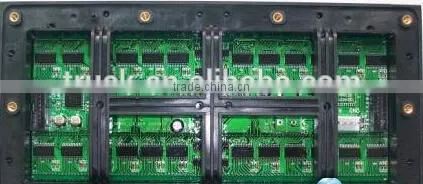

LED SCREEN Rear View:
Core parameters:
package | color | brand | specification | brightness | wavelength | quantity |
146 | R | Epistar | 9mil | 730-800 | 622-627 | 1pcs |
G | Epistar | 8*10mil | 900-1000 | 520-525 | 1pcs | |
B | Epistar | 8*10mil | 230-260 | 463-468 | 1pcs |
Led screen body parameters:
Module technical parameters | Like numbered spacing | 8.0mm | pixel density | 15625Dots/m2 |
Pixel composition | 1R1G1B | Module Resolution | 32*16=512Dots | |
Size(L*W*thickness) | 256.0*128.0*25.0mm | Weight | 0.6kg±0.05kg | |
design feature | Lamp drive | Kit material | PC polycarbonate material | |
Input voltage (DC) | 4.8-5.5V | Max Current | 6A±0.1A | |
Module power | ≤30.0W | Drive mode | 1/4Dynamic constant current drive | |
Body technical paramters | Standard conventional box frame (L*W*thickness) | 1024mm*768mm*95mm | ||
Box resolution | 128*96=12288Dots | |||
Panel area | 0.786m2 | |||
Box weight | 30kg±0.05 kg | |||
maximum power dissipation | 750w | |||
average power | 350w | |||
Led technical parameters | light intensity | ≥8000cd/m2 | luminance uniformity | >0.95 |
Screen level perspective | 100±8 degree | Screen vertical angle | 70±5 degree | |
Option distance | ≥8.0m | Malfunction dot rate | Less than 3/10000 | |
maximum power dissipation | ≤1000W/m2 | Environment | Outside |
System control parameters | grey scale | Red,green,blue:12-16bits of each | display color | 16777216 | ||
Frame Rate | ≥60 Frames per second | Refresh Rate | ≥1400Hz(Full gray field) | |||
Control type | Computer control, point by point one one, video synchronization, real-time display | Brightness adjustment | 256 stage manual / automatic | |||
Input signal | DVI/VGA,Video (multiple formats) RGBHV,Composite video signal,S-VIDEO | |||||
System operating characteristics | Service life | ≥100000 hours | Average no fault time | ≥1Million hours | ||
Attenuation rate (3 years) | ≤15% | Continuous control point | 0 | |||
Discrete control point | <0.0001,For the factory 0 | Blind spot rate | <0.0001,For the factory 0 | |||
Operating temperature range | -20~50℃ | Working humidity range | 10%~90%RH | |||
Protective performance | Over temperature / overload / drop / image compensation / various correction techniques / over current / over voltage / lightning protection (optional) | |||||
Guarantee period | One year free return to factory maintenance (specific to the purchase and sale contract signed) | |||||
Screen level | <1mm/m2 | |||||
Vertical screen | <1mm/m2 | |||||

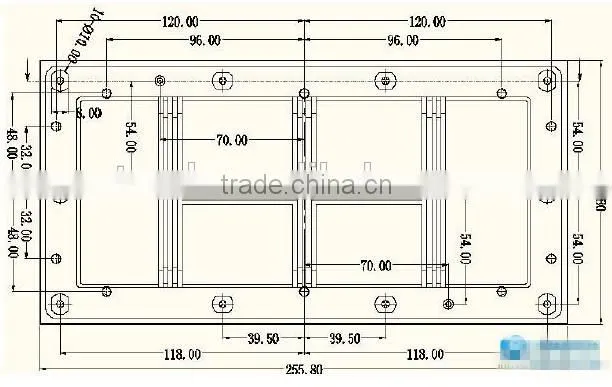

Module mounting hole:
Remark: the dimension
Note: all dimensions of the unit is mm; the form tolerance is 0.2, the aperture tolerance is + 0.1
