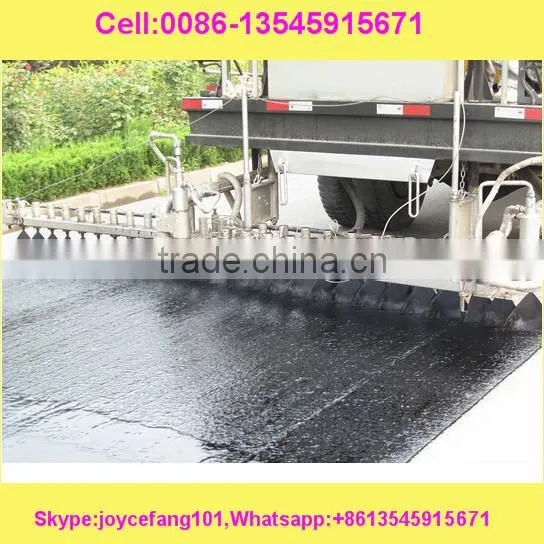

Truck Mounted Type Bitumen Sprayer (distributor ) Capacity 6000L
- 800 Unit / Units per Month
- any port in china
- T/T
- ultrasonic laser paver 11 meters concrete pavement with tire barrier laser paver manufacturers
- Baoying irrigation canal slipform machine/Rectangular ditch forming machine/Trapezoidal canal slipform machine
- Baoying irrigation canal slipform machine/U-shaped canal forming machine/Rectangular groove synovial machine
- Baoying irrigation canal slipform machine/Drain forming machine/Side ditch once forming machine
- Baoying irrigation canal slipform machine/large river canal forming machine/Canal slipform machine
- Highway roadside stone forming machine Roadside stone synovial all-in-one machine
Product Details
Condition: | New | Production Capacity: | 400t/h | Power(W): | 5.5 |
Max. Paving Thickness: | 220-300mm | Paving Width: | 4.5-6m | Place of Origin: | Hubei, China |
Brand Name: | Howo | Model Number: | CLW6012GGY3 | Dimension(L*W*H): | 8990*2300*3000 |
Weight: | 15790 | Certification: | ISO9001,CCC,BV,SGS | Warranty: | 2 years |
After-sales Service Provided: | Overseas third-party support available |
Product Description

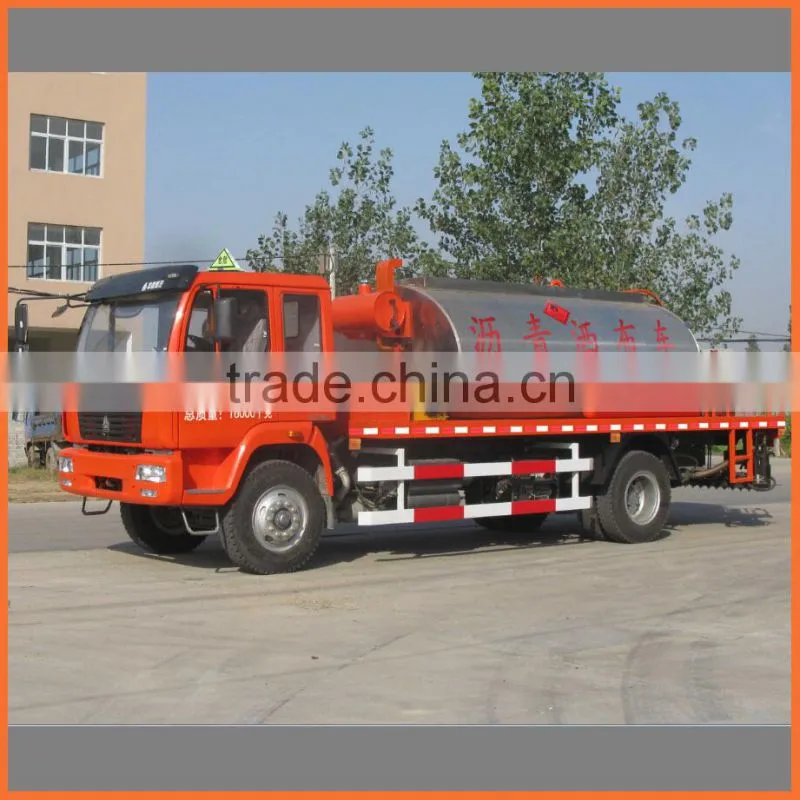

Truck Mounted Type Bitumen Sprayer (distributor ) Capacity 6000L
Distribution truck drive system:4x2
Distribution trucks main market : West Africa.
1:Dongfeng Duolika ibearing chassis is adopted if your steering wheel on the left side.But If your steering wheel on the right, then the chassis is JAC.
2:Original wedge positioning staineless steel combination nozzle sprays in the fan-shaped area and positions accurately. It is wear-resisting and the quality is reliable. It is fast and convenient to replace.
3:Equipped with high power auxiliary generator.
4:Post injection switch can be turned on with one button. The operation is more convenient.
5:Asphalt pipeline has systemic cirulation. It is suitable for spraying emulsified asphalt and heated asphalt.
6:PTO power take off method is used. Zero distance spraying can be realized.
7:Three overlapping spraying ensures more uniform spreading with higher precision.
Bitumen Distributor truck specification:
Name | bitumen distributor truck | Model No. | CLW5180GGY | |
Max Gross Weight (kg) | 15790 | Curb weight (kg) | 8120 | |
Load weight (kg) | 7475 | Haul weight (kg) | / | |
Dimension (mm) | ||||
Overall dimension | 8990x2300x3000 | Box dimension | 4200x1960x1540 | |
wheelbase | 5200 | Wheel tread | 1836/1640 | |
Tank/box volume | 8cbm | Height of lifting (m) | / | |
Engine specifications | ||||
Model | ISDe160-30 | Displacement (ml) | 4500 | |
Max power (kw) | 118 | Manufacturer | Cummins | |
Emission Standard | Euro III | Engine type | diesel | |
Performance | ||||
Top speed (km/h) | 99 | Fuel consumption/100km | / | |
Spring suspension | 11/13+8 | Tire model | 9.00-20 | |
others | ||||
Air conditioner | optional | Drive type | Left or Right |

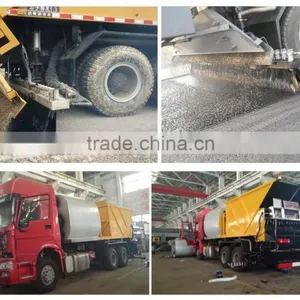

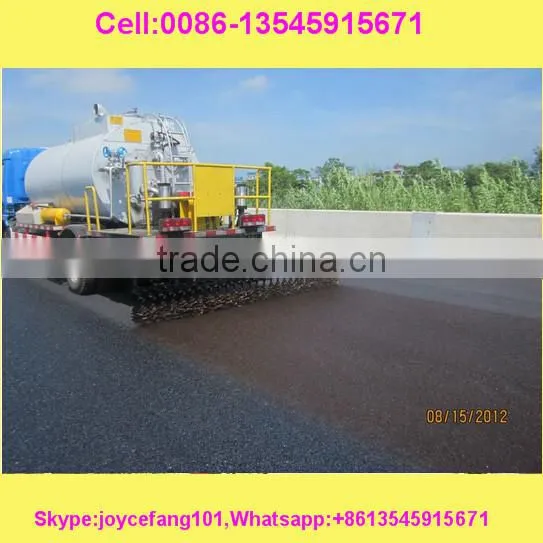

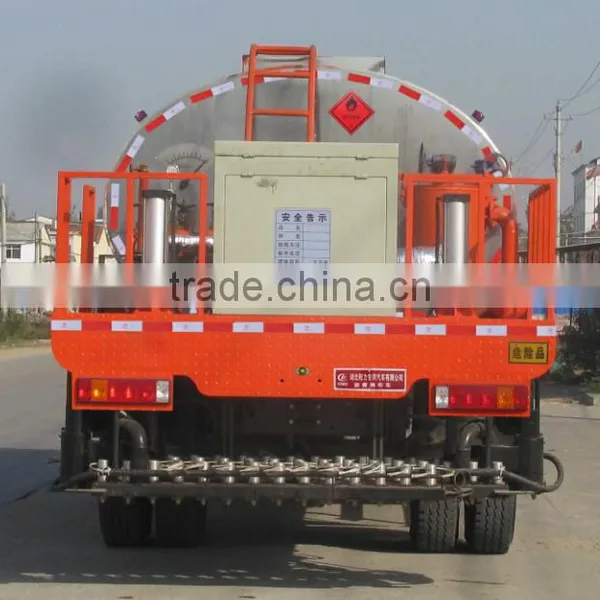

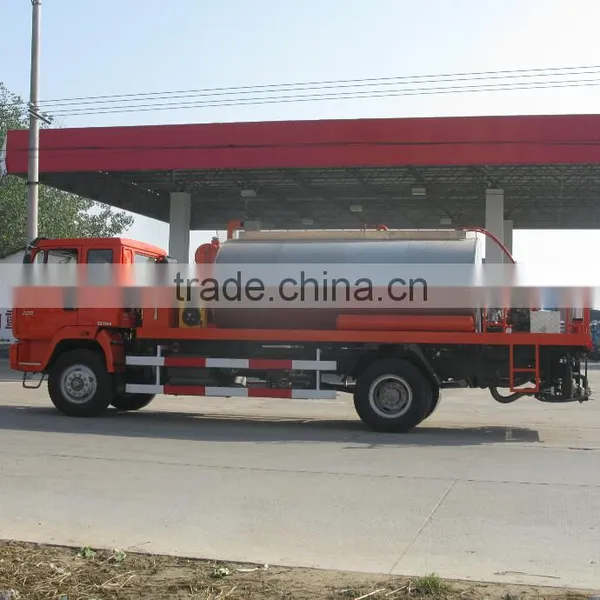

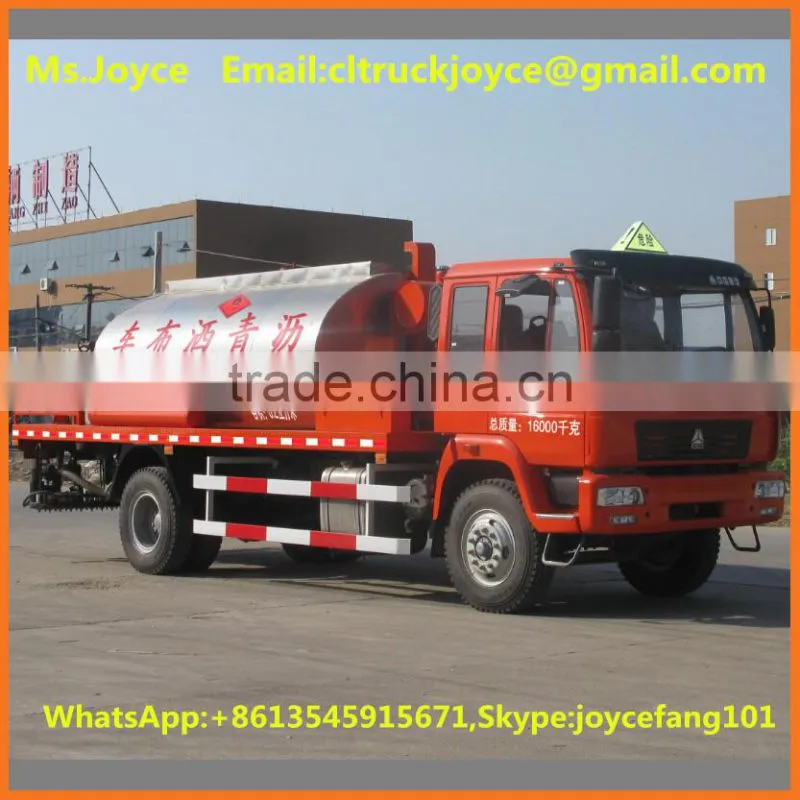

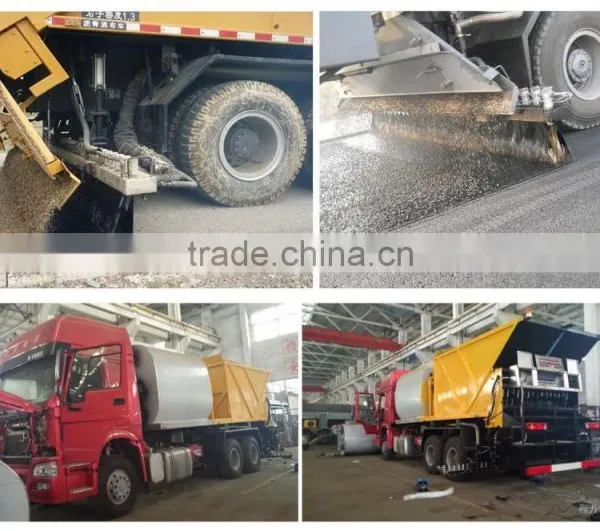

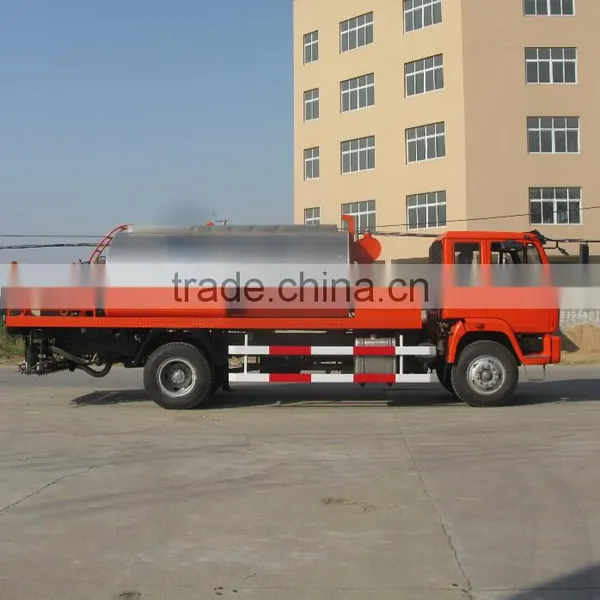

More photos of asphalt distribution trucks for reference:
Bitumen sprayer truck manufacture :Chengli Special Automobile Co.,Ltd
We are manufacture of bitumen sprayer truck, Synchronous chip sealer more than 10 years
Please E-mail me for more specifications, photos for asphalt distribution trucks
Welcome to visit our factory !
