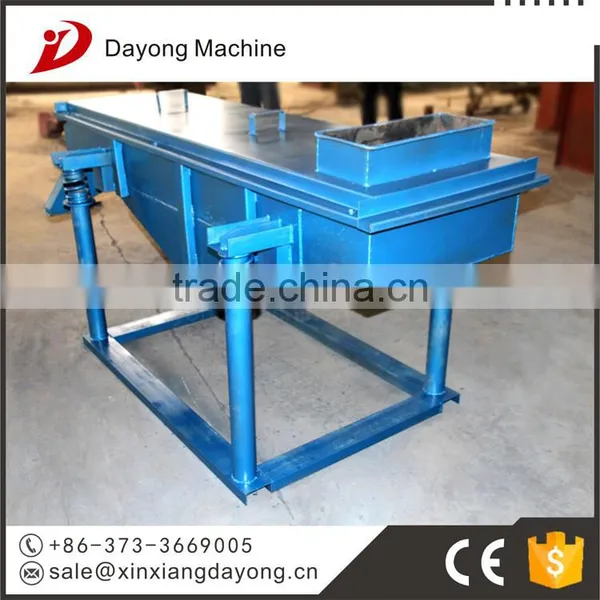

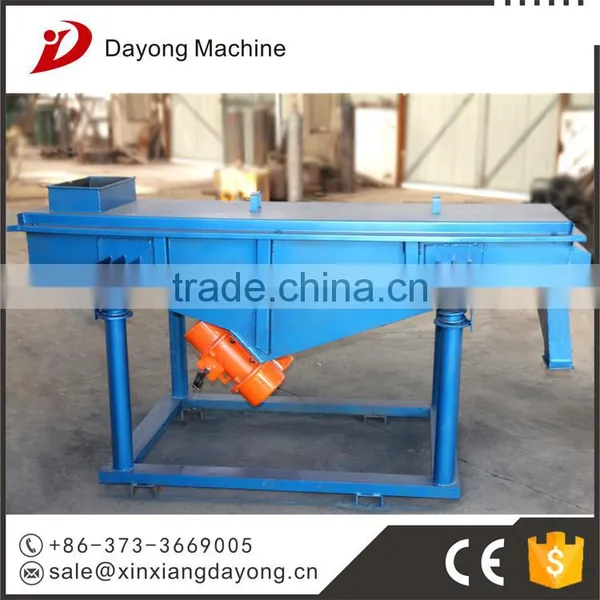

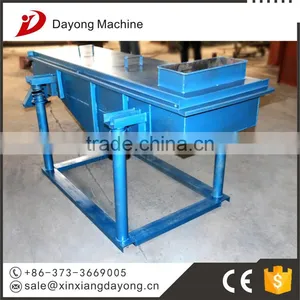

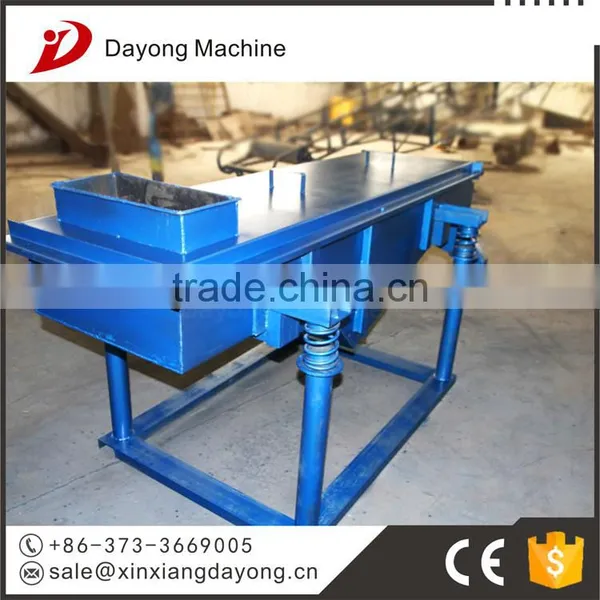

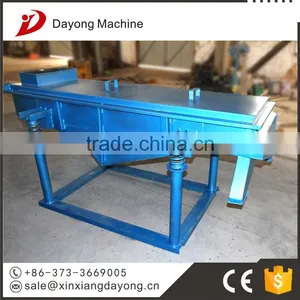

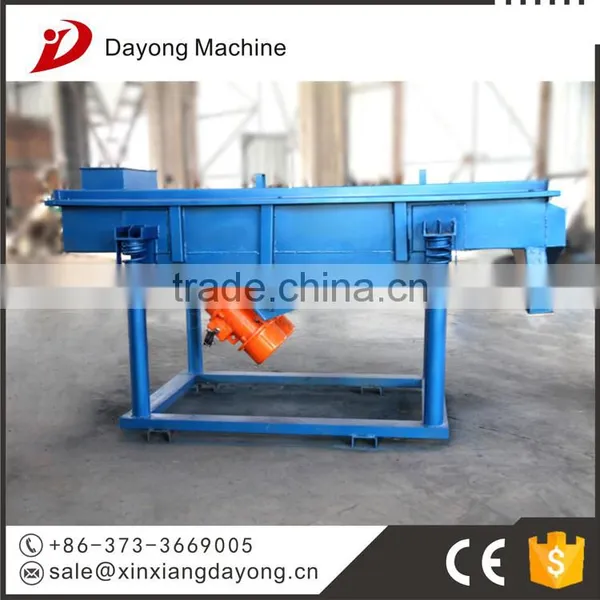

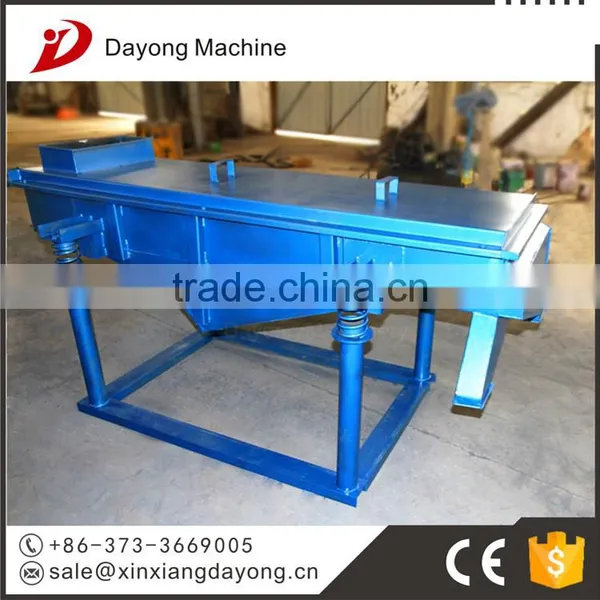

Help CenterHigh Effciency Linear 230kg Vibro Screen
Related Products
-
Auto Linear Vibrating Screen , Linear Vibrating SieveUS$ 1,500 - 7,000MOQ: 1 Set -
Air Flow Sieve for Resin PowderUS$ 10,000 - 10,000MOQ: 1 Set
-
Paraffin Powderlarge Capacity Linear Vibration Screen/separatorUS$ 2,000 - 6,000MOQ: 1 Set
-
DAYONG Brand Free $200 Coupon Mullite Powder Large Capacity Linear Vibration Screen/separatorUS$ 2,000 - 6,000MOQ: 1 Set
-
DY Series Stainless Steel Square Precision Sieve for Particle MaterialsUS$ 5,000 - 30,000MOQ: 1 Set
- Easy to operate and maintain.
- Low consumption with high yield and low cost.
- Fully enclosed structure, automatic layout, more suitable for pipeline operations.
- Good sealing without dust flying.
- Can be used for single or multi layer.
- Material auto discharge, be able to continuous operation.
- Every part of the screen box used copper plate and section welded together.
Model |
W*L (mm) |
Power(KW) |
Mesh size(mm) |
screen surface angle (°) |
Amplitude(mm) |
Layer |
DZSF-520 |
500*2000 |
2*(0.4-0.75) |
2-200 |
0°-7° |
4-8 |
1-7 |
DZSF-525 |
500*2500 |
|||||
DZSF-1020 |
1000*2000 |
|||||
DZSF-1025 |
1000*2500 |
2*(0.4-1.1) |
||||
DZSF-1030 |
1000*3000 |
2*(1.1-1.5) |
||||
DZSF-1040 |
1000*4000 |
|||||
DZSF-1235 |
1200*3500 |
2*(1.1-2.2) |
||||
DZSF-1250 |
1200*5000 |
|||||
DZSF-1535 |
1500*3500 |
|||||
DZSF-1560 |
1500*6000 |
2*(2.2-3.7) |
||||
DZSF-1845 |
1800*4500 |
|||||
DZSF-2050 |
2000*5000 |
|||||
DZSF-2260 |
2200*6000 |
| 1) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc. |
| 2)Chemical industry: resin pigment, medicine, grease, paint, palette, etc. |
| 3)Medicine Industry: Pills, tablets, capsules, granules |
| 4)Abrasive material and ceramic industry |
| 5)The Building industry: |
| 6)Plastics industry. |
| 7)Organic fertilizer industry. |
| 8)Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc |
| 9)Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc. |
a: Customers who are familiar with technical performance and parameters can directly order.
It appreciate If you send us the pictures you have ever used.
b: Customers who need us to choose the models, please tell us follow the information, :
Name and feature of the raw material?
Aim of using: get rid of impurity, filtration, grading
Handling capacity: kg /h, L/h
The raw material size: (mesh or mm)
How many final materials you want, or how many layer you need?
It appreciate If you send us the relevant pictures about the details.How many kinds of material are supported?
All stainless steel (304, 316L)
All carbon steel Q235A
Contact part Stainless steel.
3.Is it special requirement available?
Yes, the equipment could be designed according to customer's using aim or special requirements.
|
|
|
|
|
|
|
What's the MOQ?
1 sets is ok.
What's the Payment?
L/C, T/T(30% as deposit, just pay remained 70% before shipping).
How to pack it?
In normal, we packed it by wooden case.
And we accept your requirements.
When will you shipping it after payment?
We will shipping it in 15-20 working days.
Waiting for your inquiry.
Give us your trust
Take Money away!
Mary Du
Mob/Whatsapp: 008615637331601
Skype: live:marydyaong
QQ: 2847891973
