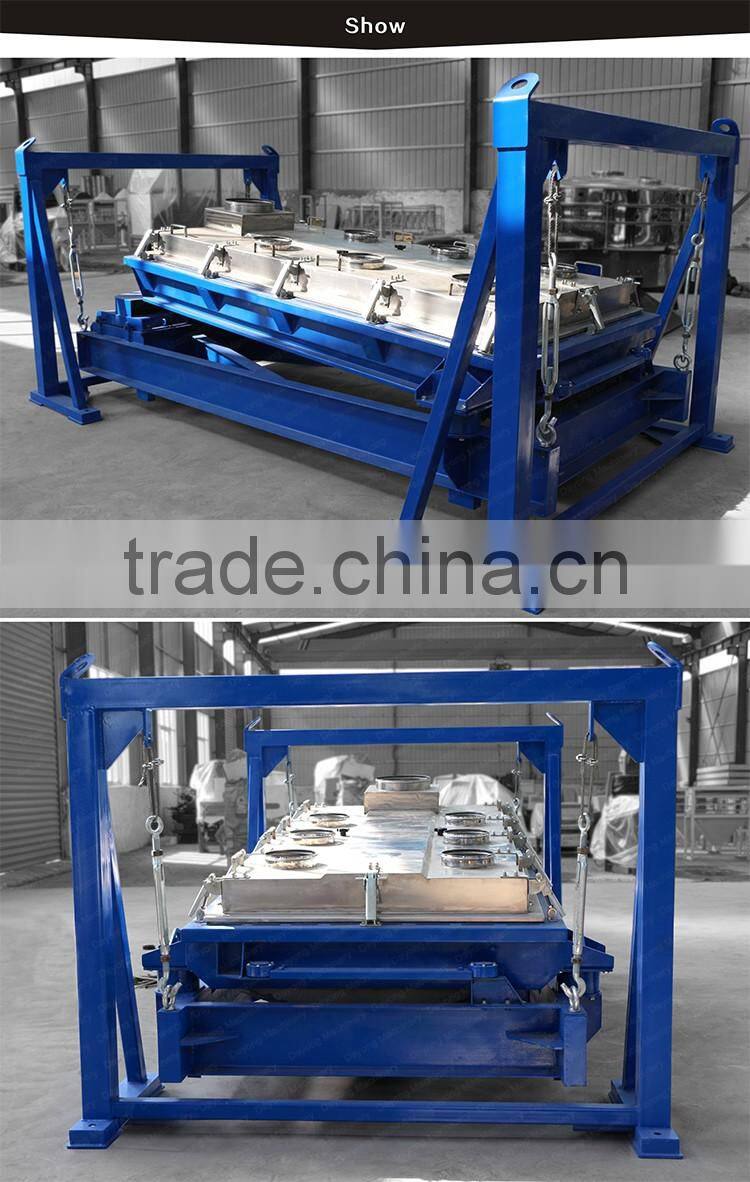

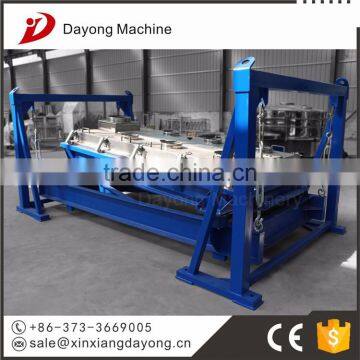

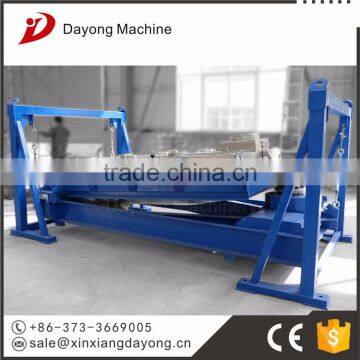

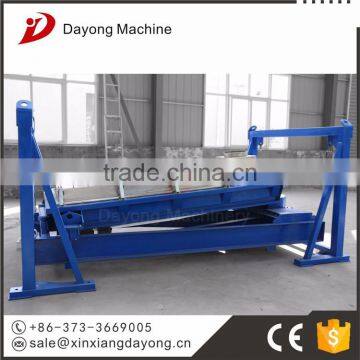

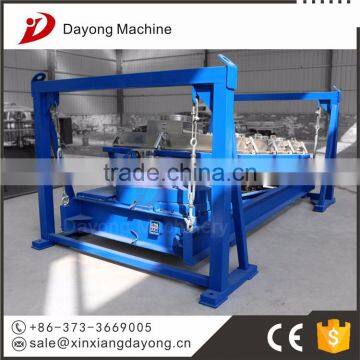

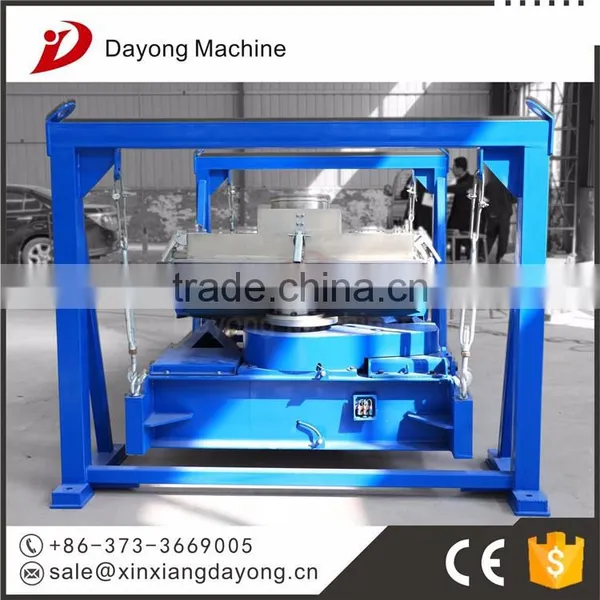

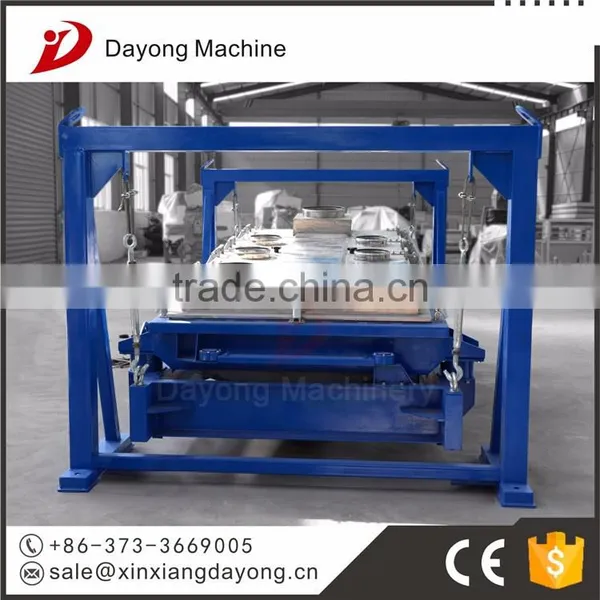

Help CenterDY Series Stainless Steel Square Precision Sieve for Particle Materials
Related Products
-
China Inclined Vibrating Screen for SandUS$ 1,500 - 7,000MOQ: 1 Set -
DAYONG Brand Free $200 Coupon Potatoes Large Capacity Trommel Vibration Screen/separatorUS$ 2,000 - 6,000MOQ: 1 Set
-
DAYONG Brand Free $200 Coupon Peanuts Large Capacity Linear Vibration Screen/separatorUS$ 2,000 - 6,000MOQ: 1 Set
-
DAYONG Brand Free $200 Coupon Corn Carbon Steel Large Capacity Linear Vibration Screen/separatorUS$ 2,000 - 6,000MOQ: 1 Set
-
DAYONG Brand Free $200 Coupon Coffee Bean Carbon Steel Large Capacity Linear Vibration Screen/separatorUS$ 2,000 - 6,000MOQ: 1 Set
Xinxiang Dayong Vibration Equipment Co. , Ltd. is an experienced professional vibrating screen, conveying equipment and crusher equipment manufacturer and supplier for 15 years. The distinctive features of our product is customizing suitable machine for customers' specific production line.
Distinctive Features:
1. Efficient machine: This machine combines the circular, elliptical and reciprocating linear movement, and installs surface cleaning device, so this machine can reach to high production, high efficiency and low consumption.
2. Silent machine: Adopt special balance mode(provided with an eccentric hammer), the inertial force in all directions were balanced perfectly when screening, little shake, low noise, smooth operation.
3. Sealed machine: Main components adopt mechanical bending, riveting, welding, well sealing performance.
4. Smooth transmission machine: Adopt belt to drive, smooth transmission, stable and reliable, low noise, easy to install and maintain.
5. Beautiful apperance machine: Compact structure, neat and beautiful.
Function Introduction:

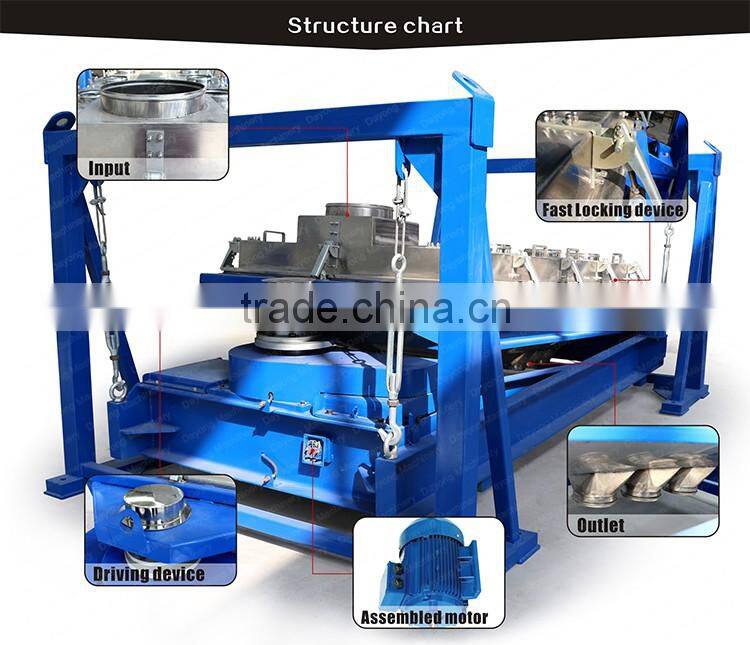

1. Fast Locking Device: Adopts fast locking device, easy to open the cover to inspect and maintain machine.
2. Belt Actuating Device: Adopts belt driving, move smoothly, lose noise.
3. Viewport Design: On the cover, there are some viewports for observing sieving process.
4. Bouncing Ball Cleaning System: On every layer, there are some bouncing balls and PU rings for cleaning screen clothes.
Application Industries:
1. Mainly used for screening, filtering, grading and removing impurity for all kinds of powder, particle, and liquid.
2. Mainly suitable materials: chemical, medical powder and particle, coating, pigment, cosmetic, grease, resin, ceramic sauce, slurry, quicklime, fireproofing powder, metallurgy powder, starch,flour, rice flour, carbon powder, graphite powder, manganese powder, sewage, waste oil, dung, etc.
Model | Screen Surface Area(mm) | Feeding Size (mm) | Amplitude (mm) | Frequency (r/min) | Motor Model | Power (kW) | Layer |
PXZS1225 | 1200x2500 | <15 | 75-90 | 1450 | Y132S -4 | 5.5 | 1-3 |
PXZS1230 | 1200x3000 | <15 | 75-90 | 1450 | |||
PXZS1236 | 1200x3600 | <15 | 75-90 | 1450 | |||
PXZS1525 | 1500x2500 | <15 | 75-90 | 1450 | |||
PXZS1530 | 1500x3000 | <15 | 75-90 | 1450 | |||
PXZS1536 | 1500x3600 | <15 | 75-90 | 1450 | |||
PXZS1830 | 1800x3000 | <20 | 75-90 | 750 | Y160L -8 | 7.5 | |
PXZS1836 | 1800x3600 | <20 | 75-90 | 750 | |||
PXZS1840 | 1800x4000 | <20 | 75-90 | 750 | |||
PXZS2036 | 2000x3600 | <20 | 75-90 | 750 | |||
PXZS2040 | 2000x4000 | <20 | 75-90 | 750 |
Attention:
This machine is customizablemachine. We could design and manufacture the suitable machine for customers' specialized production line.
1. How can we hanld the problem of blocking mesh ?
Except the ultrasonic vibrating screen adopts ultrasonic cleaning system, other vibrating screen adopts bouncing ball and PU ring below every deck to cleaning screen surface.
2. How about the sealing of this machine ?
Between two decks, there are silica gel ring to seal. Then the clamp would lock two decks tightly with the extended copper nut.
3. Could this machine be refitted or designed to suit to my production line ?
All of machines in our company could be customized by clients' specific requirement such as the height from outlet to ground, the inlet shape, the outlet shape and the gate design on first deck.
4. How can I get the matched spares for maintaining ?
The matched spares such as seal ring, bouncing ball, screen surface, clamp screws and nut could be ordered one set or more as customers' need.
5. How many payment terms can I choose ?
L/C, T/T,Western Union and Paypal are available.
Tel / whatsapp : 0086-18337311131
Skype: Rex Dayong
QQ: 1225311920
