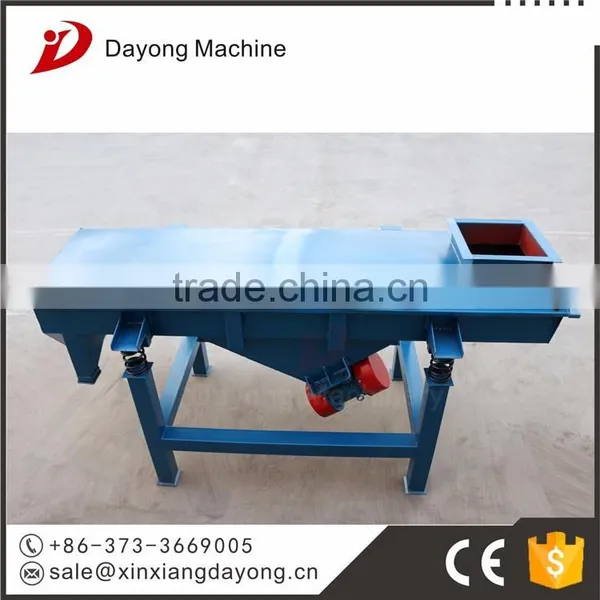

Help CenterParaffin Powderlarge Capacity Linear Vibration Screen/separator
Related Products
-
DAYONG Brand Free $200 Coupon Mullite Powder Large Capacity Linear Vibration Screen/separatorUS$ 2,000 - 6,000MOQ: 1 Set -
DY Series Stainless Steel Square Precision Sieve for Particle MaterialsUS$ 5,000 - 30,000MOQ: 1 Set
-
China Inclined Vibrating Screen for SandUS$ 1,500 - 7,000MOQ: 1 Set
-
DAYONG Brand Free $200 Coupon Potatoes Large Capacity Trommel Vibration Screen/separatorUS$ 2,000 - 6,000MOQ: 1 Set
-
DAYONG Brand Free $200 Coupon Peanuts Large Capacity Linear Vibration Screen/separatorUS$ 2,000 - 6,000MOQ: 1 Set
Inquiry us for $200coupon,only 1 week left.
Inquiry us for $200coupon,only 1 week left.
- Easy to operate and maintain.
- Low consumption with high yield and low cost.
- Fully enclosed structure, automatic layout, more suitable for pipeline operations.
- Good sealing without dust flying.
- Can be used for single or multi layer.
- Material auto discharge, be able to continuous operation.
- Every part of the screen box used copper plate and section welded together.
Application in details:
1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2) Organic fertilizer industry.
3) Plastics industry.
4) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
5) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
6) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
7) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
8) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc
Inquiry us for $200coupon,only 1 week left.
Model |
W*L (mm) |
Power(KW) |
Mesh size(mm) |
screen surface angle (°) |
Amplitude(mm) |
Layer |
DZSF-520 |
500*2000 |
2*(0.4-0.75) |
2-200 |
0°-7° |
4-8 |
1-7 |
DZSF-525 |
500*2500 |
|||||
DZSF-1020 |
1000*2000 |
|||||
DZSF-1025 |
1000*2500 |
2*(0.4-1.1) |
||||
DZSF-1030 |
1000*3000 |
2*(1.1-1.5) |
||||
DZSF-1040 |
1000*4000 |
|||||
DZSF-1235 |
1200*3500 |
2*(1.1-2.2) |
||||
DZSF-1250 |
1200*5000 |
|||||
DZSF-1535 |
1500*3500 |
|||||
DZSF-1560 |
1500*6000 |
2*(2.2-3.7) |
||||
DZSF-1845 |
1800*4500 |
|||||
DZSF-2050 |
2000*5000 |
|||||
DZSF-2260 |
2200*6000 |
Packing information:
Available Options:
- Voltage:110v,220V,230v,380V,415v,440v
- structure material:all carbon steel Q205;Contact part stainlee steel;all stainless steel 304/316L
- Custom paint color:Green,blue,white,orange or other
- Increase or decrease parts:as your request
Not only Sell Machines, But also Build Solutions.
- Design the equipment according to your technical request.
- Providing solutions according to the real situation.
- If needed, relevant technical documents would be available.
- Payment terms is flexible.
- Delivery on time
- Warranty: 12 months.
- 13 years engaged in machinery production
- 65 experienced R & D personnel to provide technical guide
- Certification supporting
- Standard production workshop
- Professional sales team
1.How to choose the machine?
a: Customers who are familiar with technical performance and parameters can directly order.
Note: You had better send us the pictures you have ever used.
b: Customers who need us to choose the models, please follow the information, tell us:
- Name and feature of the raw material?
- Aim of using: get rid of impurity, filtration, grading
- Handling capacity: kg /h, L/h
- The raw material size: (mesh or mm)
- How many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.
2.How many kinds of material are supported?
- All stainless steel (304, 316L)
- All carbon steel Q235A
- Contact part Stainless steel.
3.Is it special requirement available?
Yes, the equipment could be designed according to customer's using aim or special requirements.
Contact person:Laura
Skype: xinxiangdayong06
Whatsapp/Viber/Line: 0086-13849388672
;
Inquiry us for $200coupon,only 1 week left.
