Slurry rotary vibrating screen
♦ high frequency slurry rotary vibrating screen features
1. Small volume, light, easy to move and height freely adjusted.
2. More obvious sieving effect for those fine-grained and high-viscosity materials
3. Free from vibration and noise, and with its good sealing structure, it is free from dust and performs in a high efficiency.
4. Make use of vertical vibration motor,mechanical drive,the transfer process without loss of the exciting force,the effective transfer to the screen surface.
5. It is with features of Compact, light weight, mobility and easy installation, its height can be adjusted quickly.
♦ high frequency slurry rotary vibrating screen working principle
-
1.using high frequency,destroyed the surface tension of serum and high-speed tremor of small granule to sieve screen;
2.speeding up the isol ation effect of useful substance;
3.increasing the probability of the materials which is less than separation of particle contact with screen aperture;
4.creating a better separation condition,to make the materila which is less than sepatating particle,in particular the proption of material together with serous through the screen aperture into the products which under vibrating sieve.
♦ high frequency slurry rotary vibrating screen application
1.Paper Making Industries: Coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
Technical Parameters
2. Chemical: Resin powder, palette, washing powder, paint, soda and citric acid, etc.
3. Abrasive material and ceramic industry: alumina, arnaceous quartz, slurry, and spray soil grain etc.
4. Food industry: Sugar, salt, Alkali, monosodium glutamate, milk powder, soybean milk, yeast, juice, soy sauce, vinegar etc.
♦ high frequency slurry rotary vibrating screen parameters
|
Model
|
Effective diameter (mm) |
sieving area(m2)
|
Screen mesh size
|
Layer |
Powder(KW) |
|
Vibration motor |
Common motor |
|||||
S49-400 |
Φ340 |
0.0907 |
5-500 mesh |
1-5 |
0.18 |
-- |
S49-600 |
Φ540 |
0.2289 |
5-500 mesh |
1-5 |
0.25 |
0.75 |
S49-800 |
Φ730 |
0.4183 |
5-500 mesh |
1-5 |
0.55 |
1.1 |
S49-1000 |
Φ900 |
0.6359 |
5-500 mesh |
1-5 |
1.1 |
1.5 |
S49-1200 |
Φ1100 |
0.9490 |
5-500 mesh |
1-5 |
1.1 |
1.5 |
S49-1500 |
Φ1400 |
1.5386 |
5-500 mesh |
1-5 |
1.5 |
2.2 |
S49-1800 |
Φ1700 |
22687 |
5-500 mesh |
1-5 |
4 |
3.0 |
S49-2000 |
Φ1886 |
2.7922 |
5-500 mesh |
1-5 |
4 |
3.0 |

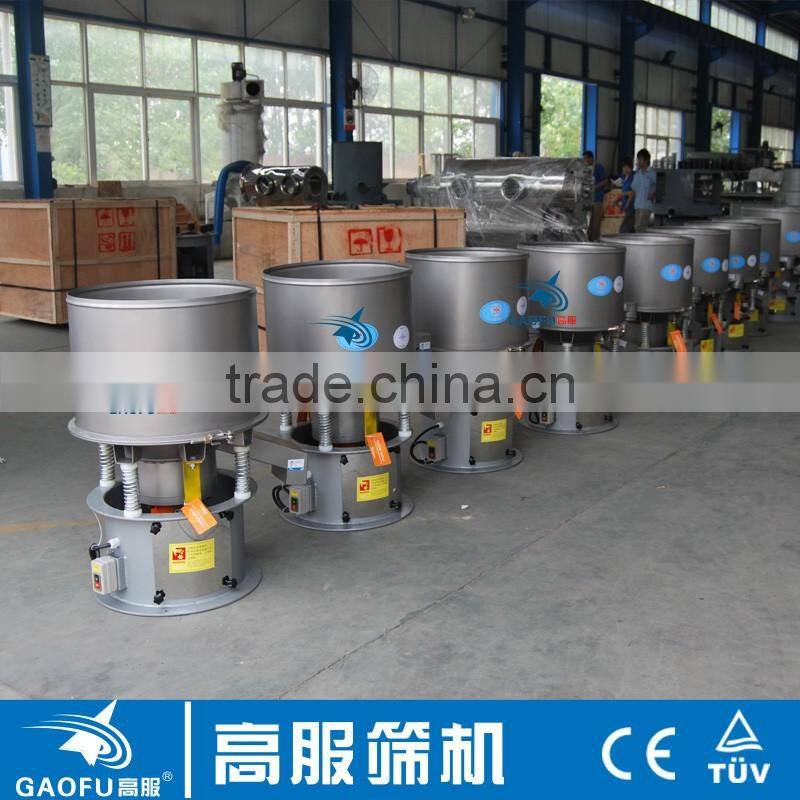

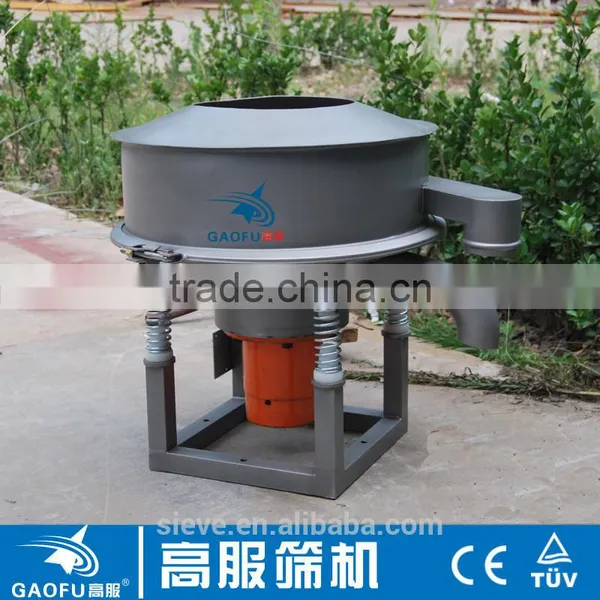

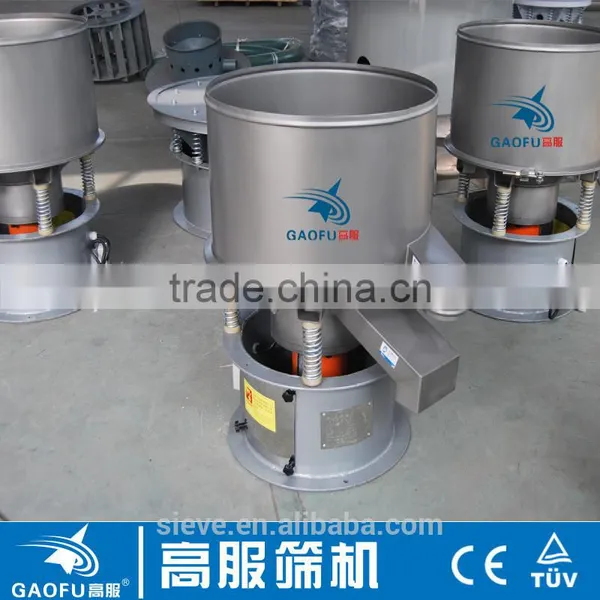

♦ high frequency slurry rotary vibrating screen picture

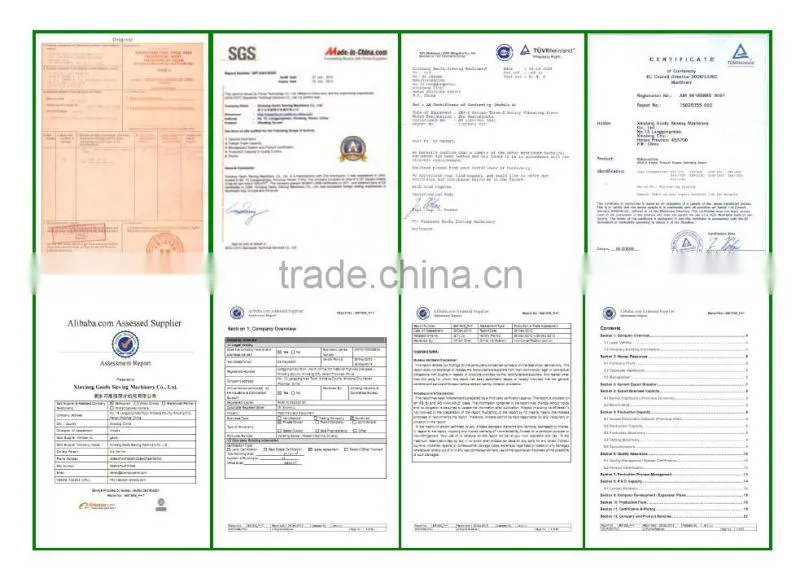

♦ Gaofu certificate
