vibratory shaker
S49 series vibratory sieve is designed for accurate grading or sizing of wet and dry materials up to five fractions in one operation. It benefits from major advances in sieving technology providing large improvements in sieving accuracy, capacity, noise levels and upgradeability compared with traditional spring suspension separators.
See the different options available
Industries served by the vibrating sieve include:
Food - Food ingredients, confectionery, chocolate, etc.
Chemicals - Chemical powders or liquids
Metals - Metal powders, alloys, etc.
Pharmaceuticals - Pharma powders, active powders, etc.
Ceramics - Ceramic powders, kaolin clay, etc.
Environment - Treating wastewater for clean disposal, etc.
Enjoy the many benefits this separator can offer you
High capacity - Real improvements are achieved over conventional round separators in terms of increased capacity
Greater accuracy - Full material flow on all 4 sieve decks gives accurate grading on all meshes
Ease of operation and lower maintenance - The design of the vibrator housing allows for a standard motor being used rather than a vibratory type, keeping maintenance costs to a minimum
Technical Parameters
Model
| Effective diameter (mm) | sieving area(m2)
| Screen mesh size
| Layer | Powder(KW) | |
Vibration motor | Common motor | |||||
S49-400 | Φ340 | 0.0907 | 5-500 mesh | 1-5 | 0.18 | -- |
S49-600 | Φ540 | 0.2289 | 5-500 mesh | 1-5 | 0.25 | 0.75 |
S49-800 | Φ730 | 0.4183 | 5-500 mesh | 1-5 | 0.55 | 1.1 |
S49-1000 | Φ900 | 0.6359 | 5-500 mesh | 1-5 | 1.1 | 1.5 |
S49-1200 | Φ1100 | 0.9490 | 5-500 mesh | 1-5 | 1.1 | 1.5 |
S49-1500 | Φ1400 | 1.5386 | 5-500 mesh | 1-5 | 1.5 | 2.2 |
S49-1800 | Φ1700 | 22687 | 5-500 mesh | 1-5 | 4 | 3.0 |
S49-2000 | Φ1886 | 2.7922 | 5-500 mesh | 1-5 | 4 | 3.0 |
Note:
1. Material: SUS 304 / Q235A / 316 L.
2. Voltage: 380V /400V.
3. Voltage: 380V /400V, Frequency:50 / 60 HZ.
4. If the specification or appearance has changed, we will not notify additionally.

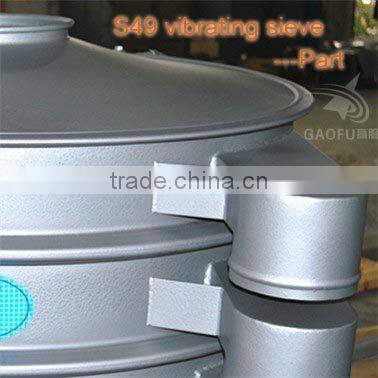

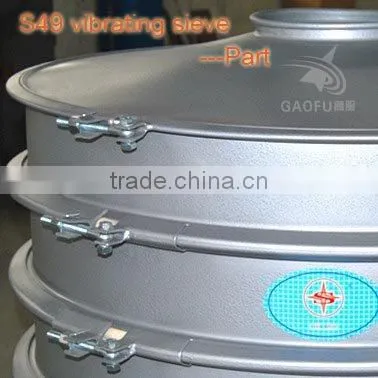

The picture of machine's part :

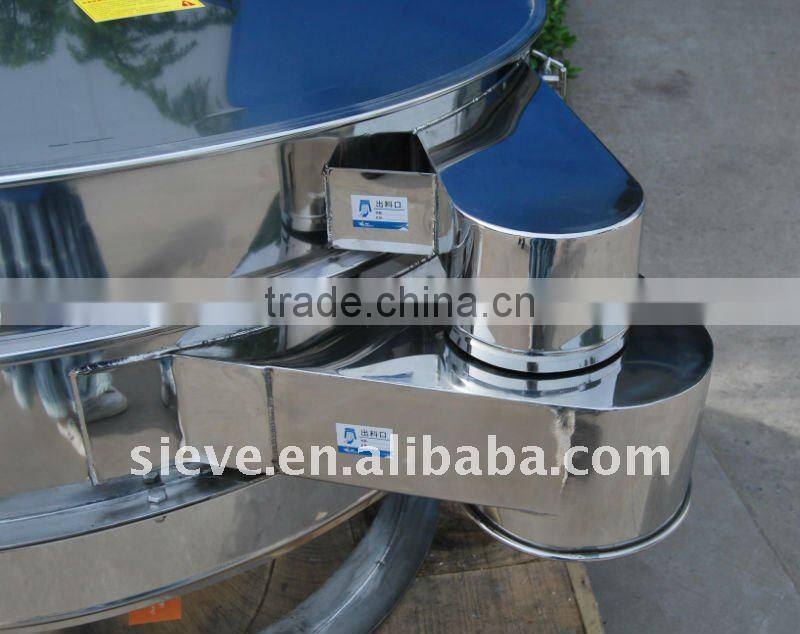

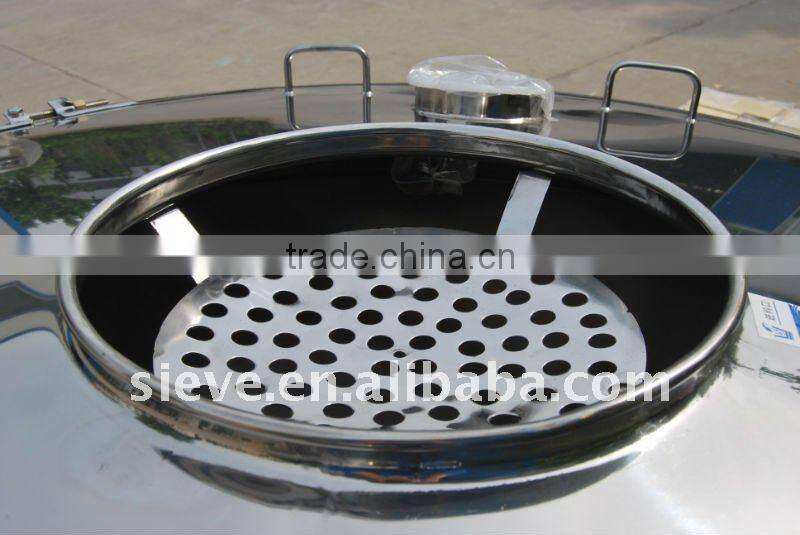

1. Inlet: Reduce the impact to the screen surface
2. Outlet
Remarks: The inlet and outlet can be custom fit to your installation requirements
Carbon steel products local

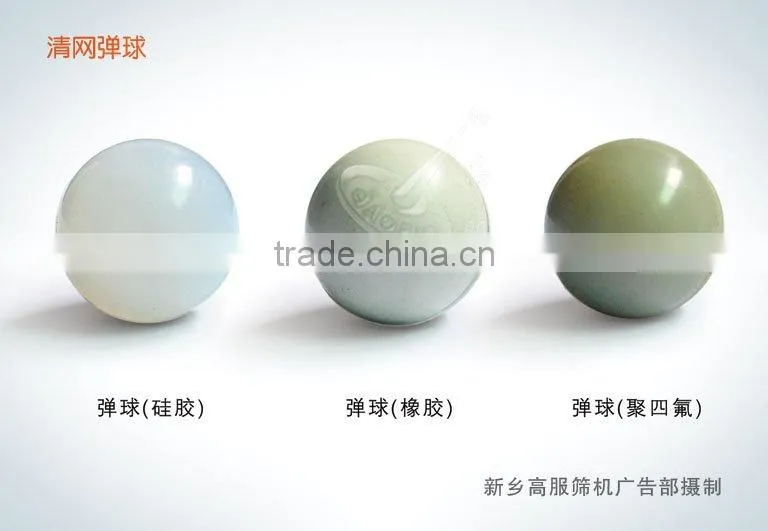

spare parts:bouncing ball
screen mesh

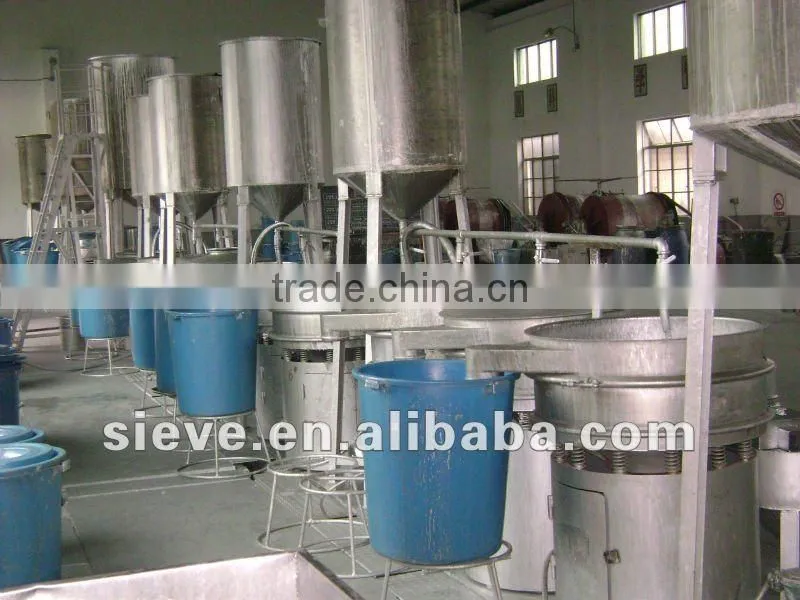

Customer site
Spin vibration sieve special motor
Gaofu The various forms of vibrating screen extension
