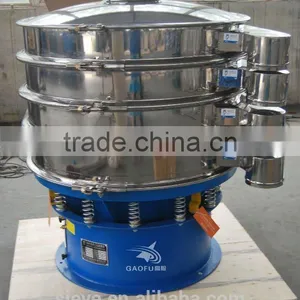

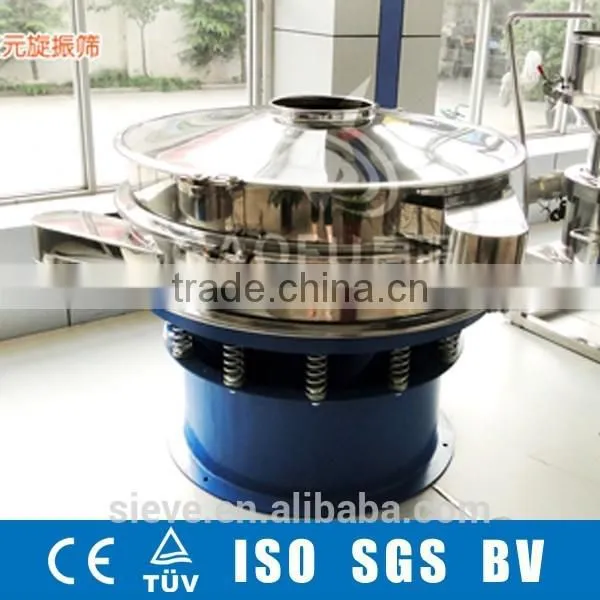

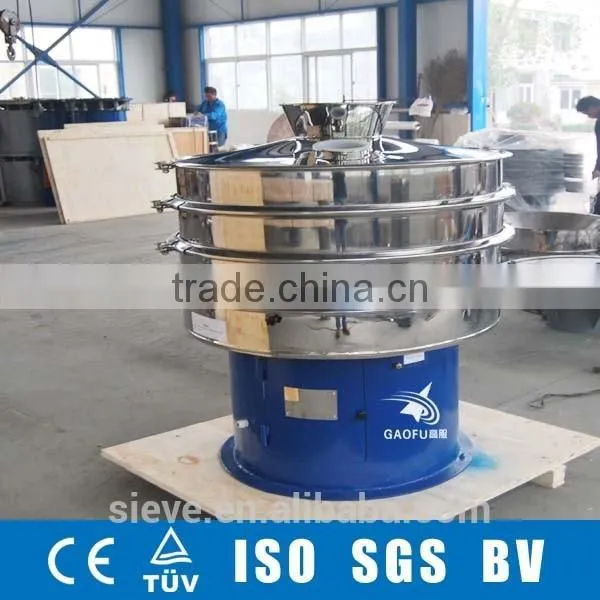

Vibration screening separator for chemical raw material
Introduction
Vibration screening separator uses upright motor as the source of vibration, These consist of specially designed motor which is mounted vertically at the center of the base plate of the screen.Equipped eccentricity hammer on the both sides of motor,change circumrotate to level, upright and incline movement, then pass these three movement to the surface of the screen. Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface screen.
Applied fields
Vibration screening separator is widely used in grinding materials, chemical, construction,chemicals, pharmacy, metallurgy, ceramics, fertilizers, coal industry to screening and grading the granular and powder bulk materials.
Feature
a. Any powders and mucilage are suitable for screening;
b. Easily to replace the screen, only 3-5 mins to replace the screen;
c. Never jam the hole meshwork, no powder flying;
d. Discharge the impurity and coarse materials automobile and operates continuously;
e. Unique- designed screen flame type, simple operation and convenience washing, long duration of screen;
f. Low noise;
g. High screening accuracy.
Structure diagram
More Vibrating Screens Technical parameters
Model |
Effective diameter (mm) |
Effective sieving area(m 2 ) |
Mesh size |
Layer |
Powder(KW) |
|
|
Vibrating motor |
Common motor |
|||||
S49-400 |
Φ340 |
0.0907 |
5-500 |
1-5 |
0.18 |
-- |
S49-600 |
Φ540 |
0.2289 |
5-500 |
1-5 |
0.25 |
0.75 |
S49-800 |
Φ730 |
0.4183 |
5-500 |
1-5 |
0.55 |
1.1 |
S49-1000 |
Φ900 |
0.6359 |
5-500 |
1-5 |
1.1 |
1.5 |
S49-1200 |
Φ1100 |
0.9490 |
5-500 |
1-5 |
1.1 |
1.5 |
S49-1500 |
Φ1400 |
1.5386 |
5-500 |
1-5 |
1.5 |
2.2 |
S49-1800 |
Φ1700 |
22687 |
5-500 |
1-5 |
4 |
3.0 |
S49-2000 |
Φ1886 |
2.7922 |
5-500 |
1-5 |
4 |
3.0 |
Note:
1. Each type can be 1-5 layers (But 3 lagers are suggested), and the mesh is from 5 to 500 meshes;
2. Material: Q235A / SUS 304 / 316L;
3. Voltage: 220 / 380V /415V / 440V, Frequency: 50 / 60 HZ;
4. If the specification or appearance has changed, we will not notify additionally.
