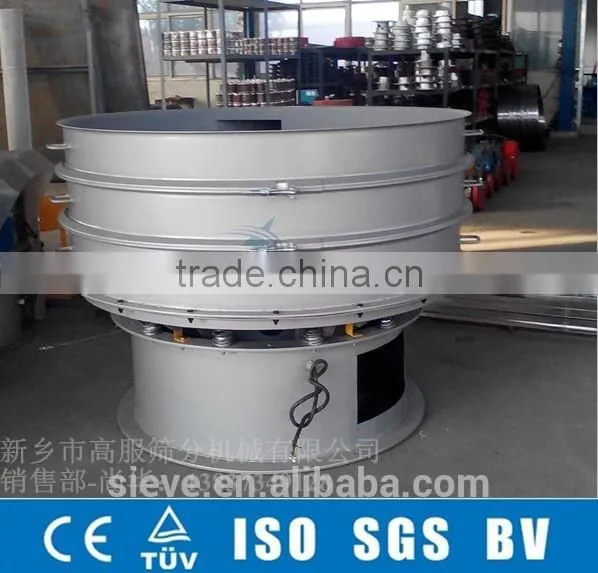

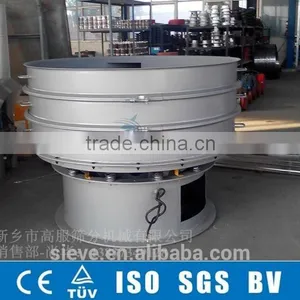

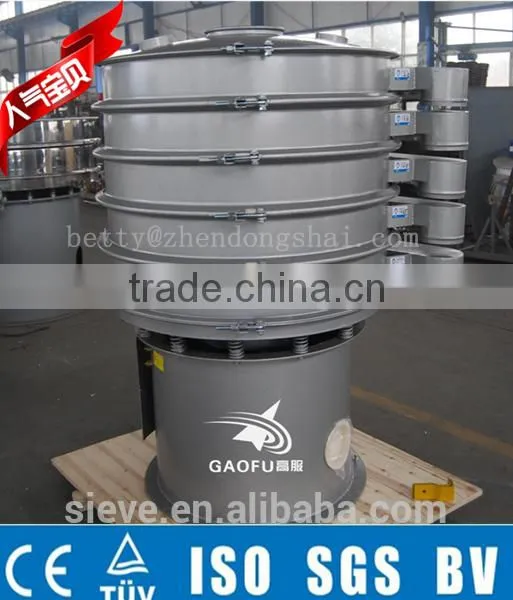

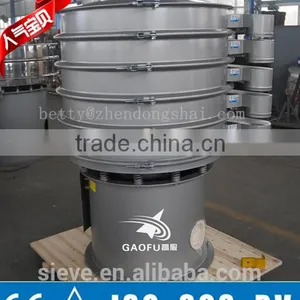

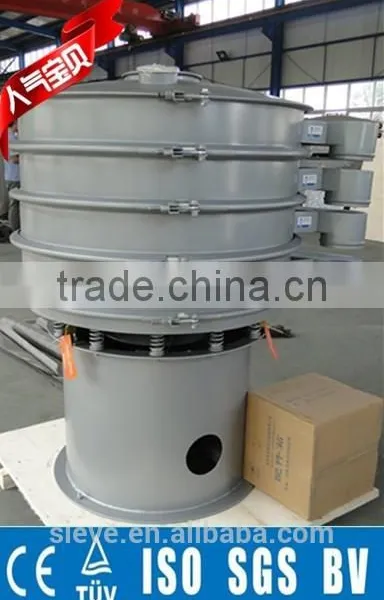

Round vibrosieve for chemical granule and powder
What it does...
Separate solids from liquids or segregate dry materials into various sizes. Particles as fine as 400 mesh (37 microns) can be screened, with up to 4 screen decks incorporated in one Gaofu separator. No special flooring or foundation is needed and less working floorspace is required. Simple and efficient design requires less horsepower. Other features include long screen life and ease with which screens may be changed.
How it works...
Basically, the Separator is a vibratory screening device that vibrates about its center of mass. Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. Rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery. The lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern. Speed and spiral pattern of material travel over the screen cloth can be set by the operator for maximum throughput and screening efficiency of any screenable product ... wet or dry ... heavy or light ... coarse or fine ... hot or cold.
The plastics industry includes establishments manufacturing products from plastics resins and from natural, synthetic, or reclaimed rubber, plastic pellets and more. Most of our customers in this industry utilize S49 Series vibrating screens for its efficiency in removing unwanted material from their process.
In the production of Polyethylene and Polypropylene, GAOFU vibrating screens is widely used in the process. Located downstream from the extruder and cutter, round or rectangular separation equipment is used to remove the "longs", "angel hair", and "streamers" from the plastic pellets. The plastic pellets of these products are used to manufacture an abundance of plastic products ranging from water bottles to computer casings.
Application:
• Acetylene • Coatings • Coke • Epoxy • Foam Containers • Glaze
• Injection Molds • Latex • Lucite • Oil • Phenolics • Plastic Beads
• Plastic Chips • Plastic Fines • Plastic Pellets • Plastic Regrind
• Plastisol • Polyethylene • Polymers • Polypropylene • Polystyrene
• PVC • Resins • Rubber • Silicon • Styrene Beads
• Styrofoam • Teflon • Tire Rubber • Wax
More Vibrating Screens Technical parameters:
Model | Effective diameter (mm) | Effective sieving area(m 2 ) | Mesh size | Layer | Powder(KW) | |
Vibrating motor | Common motor | |||||
S49-400 | Φ340 | 0.0907 | 5-500 | 1-5 | 0.18 | -- |
S49-600 | Φ540 | 0.2289 | 5-500 | 1-5 | 0.25 | 0.75 |
S49-800 | Φ730 | 0.4183 | 5-500 | 1-5 | 0.55 | 1.1 |
S49-1000 | Φ900 | 0.6359 | 5-500 | 1-5 | 1.1 | 1.5 |
S49-1200 | Φ1100 | 0.9490 | 5-500 | 1-5 | 1.1 | 1.5 |
S49-1500 | Φ1400 | 1.5386 | 5-500 | 1-5 | 1.5 | 2.2 |
S49-1800 | Φ1700 | 22687 | 5-500 | 1-5 | 4 | 3.0 |
S49-2000 | Φ1886 | 2.7922 | 5-500 | 1-5 | 4 | 3.0 |
Note:
1. Each type can be 1-5 layers (But 3 lagers are suggested), and the mesh is from 5 to 500 meshes;
2. Material: Q235A / SUS 304 / 316L;
3. Voltage: 220 / 380V /415V / 440V, Frequency: 50 / 60 HZ;
4. If the specification or appearance has changed, we will not notify additionally.
