Gaofu New Vibrator shaker for Fiberglas
-- with chemical grade
1. It Could help you select the oversize and ensure the material more uniform size as your requirement .
2. It makes you more safe and healthy work environment .
3. It makes you love your work most .
4. How does it work :
Introduction
Gaofu S49-A series rotary vibrating screen is one kind of high appreciated sieving machine for food industry, it is designed for accurate screening of wet and dry raw materials. It can up to five different fractions in one-time screening process.
5. What is the Principle of the structure
S49-A series rotary vibrating screen use upright motor as the source of vibration, These consist of specially designed motor which is mounted vertically at the center of the base plate of the screen.Equipped eccentricity hammer on the both sides of motor,change circumrotate to level, upright and incline movement, then pass these three movement to the surface of the screen. Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface screen.
6. Features
a. Any powders and mucilage are suitable for screening;
b. Easily to replace the screen, only 3-5 mins to replace the screen;
c. Never jam the hole meshwork, no powder flying;
d. Discharge the impurity and coarse materials automobile and operates continuously;
e. Unique- designed screen flame type, simple operation and convenience washing, long duration of screen;
f. Low noise;
g. High screening accuracy.

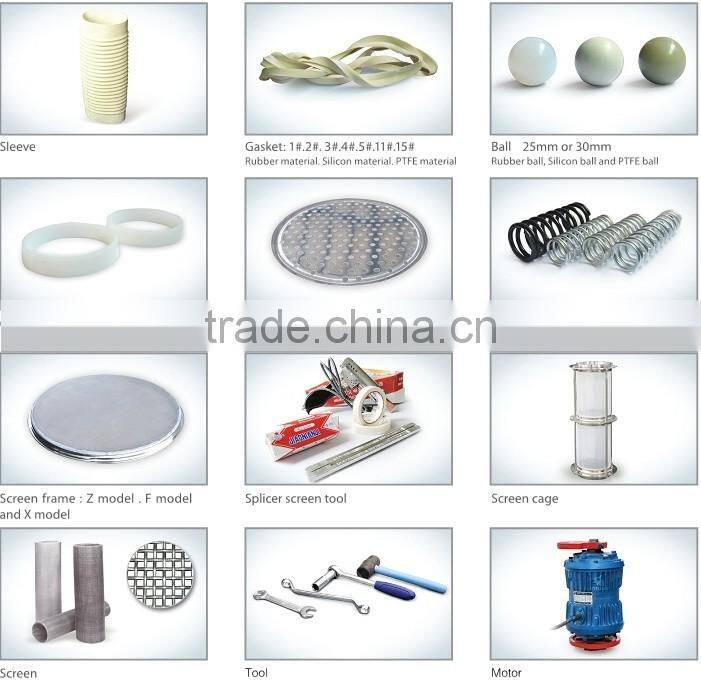

7. Sieve machine accessories
8. Product use :
Our vibrating screens can handle wide range of materials in Chemical dustry,such as Fertilizer Fiberglas Glues Gypsum Herbicides Iodine Lime Magnesium Oxide Molybdenum Compounds ;
9. More Vibrating Screens Technical parameters
Model | Effective diameter (mm) | Effective sieving area(m 2 ) | Mesh size | Layer | Powder(KW) | |
Vibrating motor | Common motor | |||||
S49-400 | Φ340 | 0.0907 | 5-500 | 1-5 | 0.18 | -- |
S49-600 | Φ540 | 0.2289 | 5-500 | 1-5 | 0.25 | 0.75 |
S49-800 | Φ730 | 0.4183 | 5-500 | 1-5 | 0.55 | 1.1 |
S49-1000 | Φ900 | 0.6359 | 5-500 | 1-5 | 1.1 | 1.5 |
S49-1200 | Φ1100 | 0.9490 | 5-500 | 1-5 | 1.1 | 1.5 |
S49-1500 | Φ1400 | 1.5386 | 5-500 | 1-5 | 1.5 | 2.2 |
S49-1800 | Φ1700 | 22687 | 5-500 | 1-5 | 4 | 3.0 |
S49-2000 | Φ1886 | 2.7922 | 5-500 | 1-5 | 4 | 3.0 |
Note:
If the specification or appearance has changed, we will not notify additionally.
