Rotary Type Separater Top Quality Fine Mesh Screen Classification Screen
SZS Series sorting machine used for?
When your product including impurity, and the impurity content is not more than 10%, it will best suitable for SZS Series sorting machine.

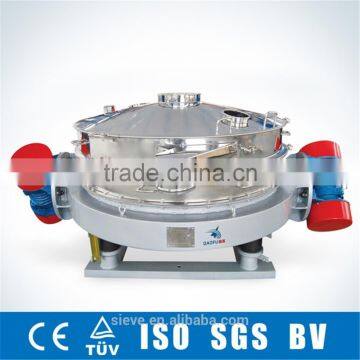

Sorting machine use two unbalanced-weight gyratory motors mounted on opposing exterior sidewalls of the unit (instead of one motor positioned beneath the screening chamber), reducing minimum height requirements significantly.
This innovation also enables the bottom outlet to be located directly below the top inlet, allowing material to fall vertically through the screen at high rates. Available from 600mm.800mm.1000mm and 1200mm in diameter.
Technical parameter
No |
Model |
Power/ kW |
Motor speed r/min |
Screen area/ m2 |
Weight kg |
1 |
SZS -600 |
2×0.18 |
1450 |
0.23 |
140 |
2 |
SZS -800 |
2×0.25 |
1450 |
0.42 |
220 |
3 |
SZS -1000 |
2×0.25 |
1450 |
0.64 |
250 |
4 |
SZS -1200 |
2×0.55 |
1450 |
0.95 |
430 |
5 |
SZS-1500 |
2×0.75 |
1450 |
1.61 |
945 |
Spare parts: (it free for you)
1. Silicone gasket 2. Operation CD 3. Tools
Machine will be packed
Gaofu company workshop:
