Home > Products > Fine Sieving Equipment > Vertical Vibrating Sieve 316l Material Construct For Sieving Powder/Liquid
Vertical Vibrating Sieve 316l Material Construct For Sieving Powder/Liquid
- 10000 Set / Sets per Month
- Tianjin
- T/T
- high efficiency sand and gravel vibrating screen
- sand washing equipment vibratory sifter machine
- wear resistance sand vibrating sieve machine
- reliable quality rotary sand classifier equipment
- stainless steel rotary vibrating screen for bentonite
- Industrial electric vibrating sifter screen sieve for pharmaceutical chemical flour
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Gaofu |
Model Number: | SZS-1500-1S | Usage: | Sugar | Type: | Other, Vibrating screen |
Voltage: | 220V.380V.415V or others | Power(W): | 1.1 KW * 2 SETS | Weight: | 900 KG |
Dimension(L*W*H): | 2700*1630*1170mm | Certification: | CE ISO 9001: 2008 | Warranty: | 12 month |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
wooden case
Product Description

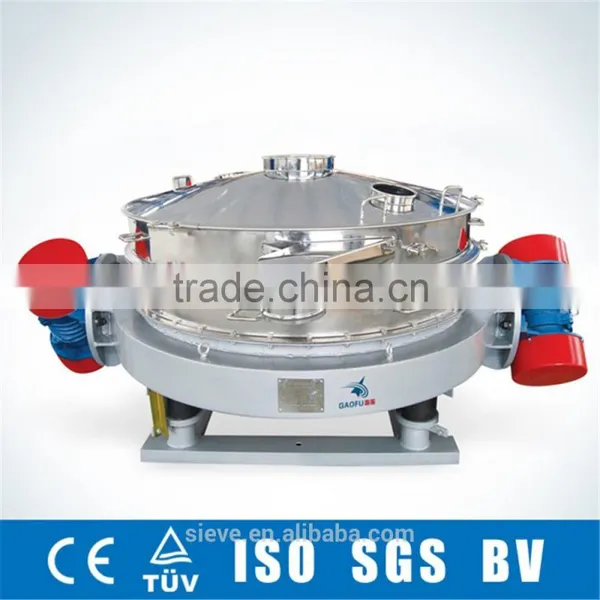

Vertical Vibrating Sieve 316l Material Construct For Sieving Powder/Liquid
SZS Series vibrating sieve machine used for?
When your product including impurity, and the impurity content is not more than 10%, it will best suitable for SZS Series sorting machine.
Sorting machine use two unbalanced-weight gyratory motors mounted on opposing exterior sidewalls of the unit (instead of one motor positioned beneath the screening chamber), reducing minimum height requirements significantly.
This innovation also enables the bottom outlet to be located directly below the top inlet, allowing material to fall vertically through the screen at high rates. Available from 600mm.800mm.1000mm and 1200mm in diameter.
Technical parameter
No | Model | Power/ kW | Motor speed r/min | Screen area/ m2 | Weight kg |
1 | SZS -600 | 2×0.18 | 1450 | 0.23 | 140 |
2 | SZS -800 | 2×0.25 | 1450 | 0.42 | 220 |
3 | SZS -1000 | 2×0.25 | 1450 | 0.64 | 250 |
4 | SZS -1200 | 2×0.55 | 1450 | 0.95 | 430 |
5 | SZS-1500 | 2×0.75 | 1450 | 1.61 | 945 |
Spare parts: (it free for you)
1. Silicone gasket 2. Operation CD 3. Tools
Machine will be packed

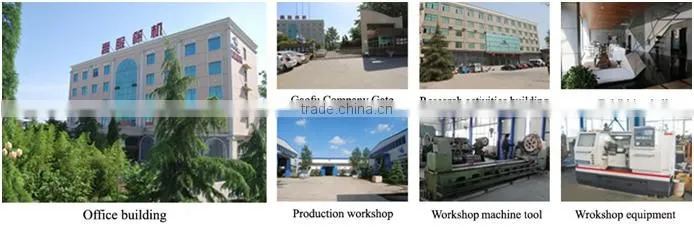

Gaofu company workshop:
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every macchine before delivery.
2.Guaranteed:
If products’quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
4.Service and Payment Terms?
A. We usually accept T/T, L/C;
B. T/T: 30% in advance as down payment, the balance before delivery;
C. We take pictures of finished products before delivery.
Company Profile
Xinxiang Gaofu Sieving Machinery Co., Ltd. specializes in manufacturing vibration screens and vibrating sieves. To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.
Thanks to production equipment, strong technical capabilities, improved detection means and strict managing system, we have enjoyed good reputation.
our company has attained ISO9001:2000 certification and CE Certification. Our products sell well throughout China and are exported to North America, West Europe, Southeast Asia and other countries and regions.
Do you want to improve your product quality? Do you want your products to become more competitive? Choosing Xinxiang Gaofu Sieving Machine Co., Ltd.! We will be your friend in the way to success! And you will create a shiny future in 2014!
Please visit our website: www.gaoful.com.
Our tenet: "Honest Service, the Highest Quality".To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.
Contact Us
- Xinxiang Gaofu Machinery Co., Ltd.
- Contact namemei He
- Phone86-373-5702900,5702903, 570290
- Addresslanggongmiao Xinxiang,Henan
