Flour rotary vibratory inpurity machine
If you are still concerns in your products for the filtration problems, please click on me, and I will you recommended a filter sieve for you, to help you solve your problem of filtering;
Features of vibrating sieve machine:
1. Compact, light weight, mobility,
2. Low noise and pollution,
3. Less energy consumption and easy installation.
4. The machine outlet can be connected to any direction. Sieved material can be discharged straight away, suitable for automated operation.
5. No blockage on screen, high efficiency, applicable for 400 mesh or finer.
Introduction

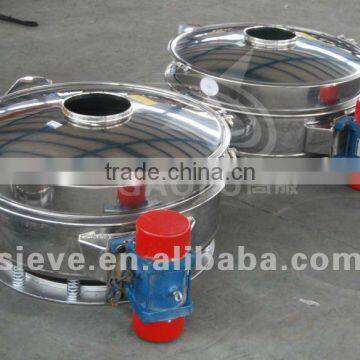

DZ series vibration sieveis a new-
type screening machine, using a single horizontal vibration motor, discharges the materials directly, having a greater handling capacity. It is used in screening granules and powders of flour, starch, detergent, metal powder, additive, chemicals, non-mining industries etc. roughly, precisely. All products contact parts are made of stainless steel, elegant design and durable, small dimension, save space and easy to move.
Automation, the 24 hours of continuous production.
Design of ultra-low-
mute, Seal stringent, liquid does not leak; the powder will never be soared. It is easy to clean up the internal and external, non-health corner, meeting with food-grade GMP standards.
Function of vibrating sieve machine:
1. Classification
Each of our products can screen and separate precisely and continuously, the Multi-layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.
2. Filtrating
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.
3. Remove the impurities
Our equipment can quickly separate a few oversize or undersize particles from a quantity of materials.
Daily maintenance:
1. before running
(1) To check coarse mesh and fine mesh if there is damage
(2) Each group clamps is locking.
2. Running
(1) Notice any abnormal noises
(2) Electric current is stable
(3) Whether the vibration is abnormal.
3. after running
(1) After used clean up the vibration every time
(2) To inspect regularly the coarse mesh, fine mesh and the spring if there are fatigue and damage
(3) Whether each part of the vibrating body caused damage due to vibration.
(4) Need to add the site to be the lubricating oil
Technical parameters
Model |
Power (kw) |
Motor speed (r/min) |
Sieve diameter (mm) |
Dimension(mm) |
Wight(kg) |
DZ-600 |
0.18 |
1450 |
580 |
1000*600*550 |
200 |
DZ-800 |
0.25 |
1450 |
780 |
1100*800*600 |
250 |
DZ-1000 |
0.55 |
1450 |
960 |
1280*1000*700 |
330 |
DZ-1200 |
0.75 |
1450 |
1160 |
1550*1200*750 |
400 |
DZ-1500 |
1.5 |
1450 |
1460 |
1850*1500*900 |
750 |
Note:
1. Material: SUS 304 / Q235A / 316 L.
2. Voltage: 380V /400V.
3. Voltage: 380V /400V, Frequency:50 / 60 HZ.
4. If the specification or appearance has changed, we will not notify additionally.
