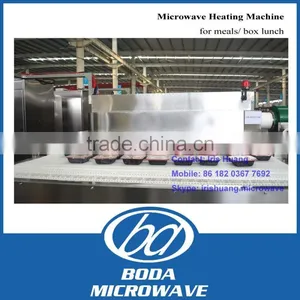

Catering microwave heating machine/ microwave meal heater
Model number | BDMD- F-P-70 |
Description | BODA microwave meal heating machine/ bento/fast food heating equipment |
| Microwave frequency (MHz) | 2450±50 |
| Input voltage | 380V, 50Hz |
| Microwave power(KW) | 70(KW) |
Chamber material | Stainless steel |
| Chamber color | Silver-white |
| Conveyor belt | PP |
| Dehydrator dimension(L*W*H)(mm) | 12.0x1.1x1.7 |
| Weight (KG) | 4500 |
| Microwave leakage limit(mW/cm2) | 1 mW/cm2 |
| Relative humidity(℃) | ≤85% |
| Ambient temperature(℃) | Normal temperature |
| Environment requirement | No excessive corrosive gas, no inflammable, explosive gas |
| Microwave heater Model | Microwave frequency (MHz) | Microwave power | Microwave leakage | Heater dimension (m) | Installation area (m) |
| BDMD-F-P-20 | 2450±50 | 20kw | 1mW/cm2 | 7.0x1.1x1.7 | 9x3.5x2.5 |
| BDMD-F-P-30 | 2450±50 | 30kw | 1mW/cm2 | 8.0x1.1x1.7 | 10x3.5x2.5 |
| BDMD-F-P-40 | 2450±50 | 40kw | 1mW/cm2 | 9.0x1.1x1.7 | 11x3.5x2.5 |
| BDMD-F-P-50 | 2450±50 | 50kw | 1mW/cm2 | 10.0x1.1x1.7 | 12x3.5x2.5 |
| BDMD-F-P-60 | 2450±50 | 60kw | 1mW/cm2 | 11.0x1.1x1.7 | 13x3.5x2.5 |
| BDMD-F-P-70 | 2450±50 | 70kw | 1mW/cm2 | 12.0x1.1x1.7 | 14x3.5x2.5 |
| BDMD-F-P-80 | 2450±50 | 80kw | 1mW/cm2 | 13.0x1.1x1.7 | 15x3.5x2.5 |
| BDMD-F-P-100 | 2450±50 | 100kw | 1mW/cm2 | 16.0x1.1x1.7 | 18x3.5x2.5 |
| BDMD-F-P-120 | 2450±50 | 120kw | 1mW/cm2 | 18.0x1.1x1.7 | 20x3.5x2.5 |
| BDMD-F-P-150 | 2450±50 | 150kw | 1mW/cm2 | 21.0x1.1x1.7 | 23x3.5x2.5 |
| BDMD-F-P-200 | 2450±50 | 200kw | 1mW/cm2 | 27.0x1.1x1.7 | 29x3.5x2.5 |
Usage:
The microwave food heating machine is used in restaurants, schools, large banquets, exibitions for the warming of fast foods/ box lunches.
Advantage:
Microwave food heating machine has a number of quantitative and qualitative advantages over steam cabinets so that it becomes more and more popular. One main advantage is the place where the heat is generated, namely the product itself. Because of this, the effect of small heat conductivities or heat transfer coefficients does not play such an important role. Therefore, larger pieces of foods can be heated in microwave heater in a shorter time and with a more even temperature distribution. The another main advantages is the short heating time of microwave heater. Meals can be heated to 80-90degree centigrade within 2 minutes, which greatly saves diners' time.
Energy saving 30%-60%
Heating speed tens of times quicker
Reduced CO2 emissions
Increased heating efficiency and heating quantity
Heating temperature adjustable
Suitable for heating all kinds of foods including rice, noodle, meats, vegetables, etc
Wooden packing for each set of microwave heating machine
Soft packing is supplied.
BODA provides a full range of services and technical support for industrial microwave systems. The services include custom installations, preventive equipment maintenance, equipment upgrades and modifications and microwave system repair.
1. What is Microwave?
Microwaves are a form of electromagnetic energy with frequencies between 300 MHz and 300 GHz, generated by magnetrons under the combined force of an electric and a magnetic field perpendicular to each other.
2. What is the advantage of Microwave dehydrator compared to Conventional dehydrator?
Conventional dehydrator is a surface dehydration method, which is not only slow, but also non-uniform with the surfaces, edges and corners being much dehydrated than the inside of the material. The imperfect dehydration will cause product rejections, waste energy and extend process time.
Microwave fruit dehydrator and vegetable dehydrator is a direct method of dehydration. Energy is transferred through the material electro-magnetically, not as a thermal heat flux. Therefore, the rate of dehydration is not limited, the uniformity of heat distribution is greatly improved and dehydration time is reduced.
3. How about safety?
Using scientific structure and patented suppression system, BODA industrial microwave dehydrator poses no threat of electromagnetic radiation to the health and safety of equipment operators.
4.What about maintenance?
In addition to downtime for cleaning and inspection, conventional dehydrators and heat exchangers need periodic servicing with an expensive inventory of parts and a highly trained labor force. For microwave dehydrator, the only part that requires maintenance is the magnetron. In the event of a malfunction or misuse through incorrect operation, this can easily be replaced in less than thirty minutes. Generally, BODA recommends that the magnetron of industrial microwave dehydrator be replaced annually or after 8,000 hours of operation, whichever is sooner.
