Specifications
stainless steel air ductHonda small gasoline engine
convenient moving
easy regulation air outlet angle
simple and reliable

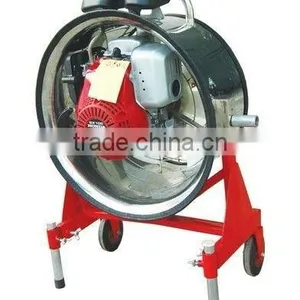

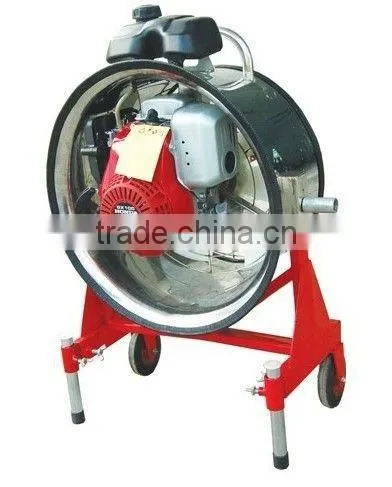

YY11000A type positive pressure smoke ventilator is made of stainless steel air duct, the axle bracket and the Japanese Honda small gasoline engine direct drive fan impeller, the structure is simple and reliable, convenient moving, easy regulation air outlet angle, large supply air volume, suitable for personnel trapped in the floor floor and the basement.
Specifications :
1, air duct
2, small gasoline engine oil door
3, a locking bolt ( adjust foot margin extended length )
4, a locking bolt ( adjust foot margin height, namely the fan air outlet angle )
5, foot margin
6, bracket
7, a gas switch
8, handle
9, petrol engine air filter
10, gasoline engine startup choke
11, fuel tank and filler
12, handle (drag the smoke ventilator )
13, a fan shroud
14, the gasoline engine crankcase lubricating oil inlet and oil gauge
15, the gasoline engine crankcase drain plug
16, a fan impeller
17, the gasoline engine ignition switch
18, the gasoline engine starting handle
19, the gasoline engine exhaust muffler
Index
Item |
Unit |
Specifications |
Rated speed |
R/m(RPM) |
3800±100 |
Max exhaust air rate |
m³/h(Cubic meters per hour) |
11000±550 |
Gasoline tank volume |
L(litre) |
1.2±0.1 |
Weight |
kg |
37 |
Hours of operating |
h |
2hrs trouble free |
Starting time |
