Hoda Engine Firefighting Positive-pressure Ventilator Fan

Name: Hoda Engine Firefighting Positive-pressure Ventilator Fan
Brand: Lushan /OEM
SKU: 141622456
Availability: InStock

Hoda Engine Firefighting Positive-pressure Ventilator Fan thumbnail-1

Hoda Engine Firefighting Positive-pressure Ventilator Fan photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangxi, China

Brand Name:

Lushan /OEM

Model Number:

YY11000A

Contact Supplier Request Quote Chat Now

Jiujiang Fire Fighting Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Jiujiang/shanghai/airport

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangxi, China

Brand Name Lushan /OEM

Model Number YY11000A

Specifications

*stainless steel frame
*Honda engine 6.5HP
*Size:70*97*45cm
*Power:4Kv
*Speed:3800rpm

YY11000A type positive pressure smoke ventilator is made of stainless steel air duct, the axle bracket and the Japanese Honda small gasoline engine direct drive fan impeller, the structure is simple and reliable, convenient moving, easy regulation air outlet angle, large supply air volume, suitable for personnel trapped in the floor floor and the basement.

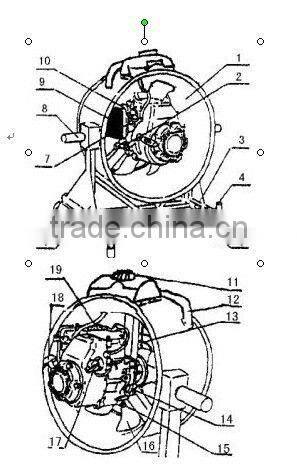

Specifications :

1, air duct

2, small gasoline engine oil door

3, a locking bolt ( adjust foot margin extended length )

4, a locking bolt ( adjust foot margin height, namely the fan air outlet angle )

5, foot margin

6, bracket

7, a gas switch

8, handle

9, petrol engine air filter

10, gasoline engine startup choke

11, fuel tank and filler

12, handle (drag the smoke ventilator )

13, a fan shroud

14, the gasoline engine crankcase lubricating oil inlet and oil gauge

15, the gasoline engine crankcase drain plug

16, a fan impeller

17, the gasoline engine ignition switch

18, the gasoline engine starting handle

19, the gasoline engine exhaust muffler

Index

Item	Unit	Specifications
Rated speed	R/m(RPM)	3800±100
Max exhaust air rate	m³/h(Cubic meters per hour)	11000±550
Gasoline tank volume	L(litre)	1.2±0.1
Weight	kg	37
Hours of operating	h	2hrs trouble free
Starting time	S	≤3
