Specifications
*Valume:3.8L*Q/XFZB001-2008 standard
*simple and reliable
*Weight :55kgs
*speed :3600RPM
YY9500B type positive pressure smoke ventilator is made of stainless steel air duct, the axle bracket and the United States of America Pericom company small gasoline engine direct drive fan impeller, the gasoline engine is four stroke horizontal engine, its patented features, gasoline oil circuit switch and an ignition circuit switch is common, and oil low oil level sensing device, can effectively prevent the engine in the lack of oil , the maximum guarantee lubrication. It is our company improve product, simple and reliable structure, convenient moving, easy regulation air outlet angle, large supply air volume, applied to the floor and the basement fire smoke control and evacuation of personnel trapped.

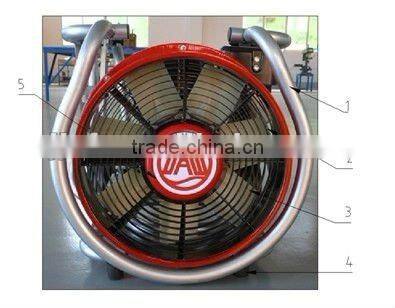

Specifications :
1 frame guard
2 fan blade
3 air guide baffle
4 rubber foot pad
5 surface cover
6back air duct support frame
7 gasoline engine oil filler
8 air filter box
9 roller
10 supporting the locking pin
11 tank
12 air duct adjusting bracket fastening handle
13 gasoline engine oil door knob
14 air duct adjusting bracket
15 Boot Stretch
16 gasoline and ignition circuit switch ( red)
17 throttle switch
18 gasoline engine manufacturers nameplate
19 gas inlet
Index:
Item |
Unit |
index |
Rated speed |
rpm |
3600±100 |
Max Exhaust capacity |
m³/h |
9500×(1±5%) |
Gasoline tank volume |
L |
3.8±0.1 |
Weight |
kg |
55±2 |
Continuous operation time |
h |
2hours trouble free |
Attach time |
S |
≤3 |
