Specifications
tension link EBW wireless tension link1,dynamometer.
2,low battery warming.
3,manufacture

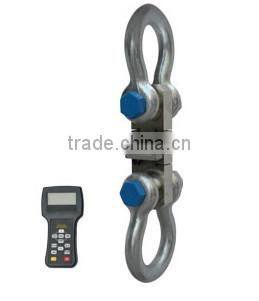

tension link EBW wireless tension link

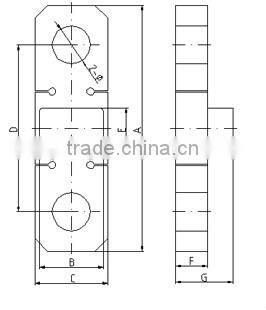

| MODEL | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | 2-φ(mm) | N.W.(kg) |
|---|---|---|---|---|---|---|---|---|---|
| EBW-2D-5 | 190 | 110 | 60 | 137 | 65 | 30 | 70 | 27 | 2.6 |
| EBW-2D-10 | 245 | 110 | 70 | 168 | 65 | 36 | 76 | 41 | 4.3 |
| EBW-2D-20 | 312 | 110 | 94 | 206 | 65 | 45 | 85 | 54 | 8.5 |
| EBW-2D-30 | 370 | 110 | 114 | 246 | 65 | 50 | 90 | 60 | 14 |
| EBW-2D-50 | 460 | 110 | 140 | 309 | 65 | 60 | 100 | 73 | 25 |
| EBW-2D-100 | 580 | 110 | 180 | 389 | 65 | 80 | 120 | 99 | 53 |
| EBW-2D-150 | 690 | 110 | 220 | 456 | 65 | 90 | 130 | 112 | 89 |
| EBW-2D-200 | 850 | 110 | 250 | 534 | 65 | 100 | 140 | 134 | 128 |
Specification of Wireless tension link:
| MODEL | Max. capacity(kg) | Min. weigh(kg) | Division(kg) | Total dispay counts (n) |
|---|---|---|---|---|
| EBW-2D-5 | 5000 | 400 | 2 | 2500 |
| EBW-2D-10 | 10000 | 100 | 5 | 2000 |
| EBW-2D-20 | 20000 | 200 | 10 | 2000 |
| EBW-2D-30 | 30000 | 200 | 10 | 3000 |
| EBW-2D-50 | 50000 | 400 | 20 | 2500 |
| EBW-2D-100 | 100000 | 1000 | 50 | 2000 |
| EBW-2D-150 | 150000 | 1000 | 50 | 3000 |
| EBW-2D-200 | 200000 | 2000 | 100 | 2000 |
Description of wireless tension link
1.Profile: EBW-2D wireless tension link is an extremely well-built instrument for industry use ,as a standard wireless tool offer universal applications,Whether used as conventional crane weigher or to measure force, EBW-2D wireless tension link is microprocessor controlled for high precision accuracy, calibration is easier with wireless handheld indicator 280D.
2.Material: Nickel plated high strength alloy steel.
3.Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
4.Units: Units are clearly display on the screen, available in the following measurment reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).
5.Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
6.Gravity regulation: The acceleration of gravity can be regulated through indicator parameter setting according to different places value.
7.Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User calibration(with password).
8.Set-Point: Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
9.Package: Packed with carry case, easy to bring.
10.Communication: RS232 output.
Main technical data :
280D Indicator Display |
25mm (1’’) 5digits LCD with backlight |
Power on zero range |
20% F.S. |
Manual Zero Range |
4% F.S. |
Tare Range |
100% F.S. |
Stable Time |
≤5 seconds |
Overload Indication |
100% F.S. + 9e |
Max. Safety Load |
125% F.S. |
Ultimate Load |
400% F.S. |
Sealing Standard |
IP-67 protected from dust and high pressure jets of water |
Body Battery |
Standard 18650 Lithium battery, 3.7V/3100mAh |
Indicator Battery |
Rechargable Ni-H battery, 4.8V/3300mAh |
Operating Temp. |
- 20°C ~ + 50°C |
Operating Humidity |
≤85% RH under 20°C |
Wireless Distance |
About 100M |
Wireless Frequency |
433MHz |
We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
