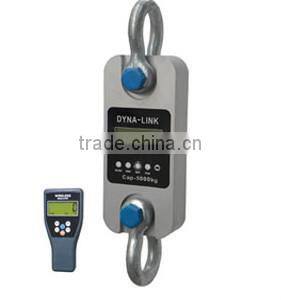

wireless dyna-link 1t 2t 3t 5t 10t 20t 50t 100t 200t dynamometer prices
| MODEL | A(mm) | B(mm) | C(mm) | D(mm) | φ(mm) | H(mm) | Material |
|---|---|---|---|---|---|---|---|
| DL-W3-01 | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
| DL-W3-02 | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
| DL-W3-03 | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
| DL-W3-05 | 285 | 123 | 57 | 210 | 58 | 405 | Aluminum |
| DL-W3-10 | 320 | 120 | 57 | 230 | 92 | 535 | Alloy Steel |
| DL-W3-20 | 420 | 128 | 74 | 260 | 127 | 660 | Alloy Steel |
| DL-W3-30 | 420 | 138 | 82 | 280 | 146 | 740 | Alloy Steel |
| DL-W3-50 | 465 | 150 | 104 | 305 | 184 | 930 | Alloy Steel |
| DL-W3-100 | 570 | 190 | 132 | 366 | 229 | 1230 | Alloy Steel |
| DL-W3-200 | 725 | 265 | 183 | 440 | 280 | 1380 | Alloy Steel |
Specification of Wireless tension link:
| MODEL | Max. capacity(kg) | Min. weigh(kg) | Division(kg) | Total dispay counts (n) |
|---|---|---|---|---|
| DL-W3-01 | 1000/2200 | 10/20 | 0.5/1 | 2000 |
| DL-W3-02 | 2000/4400 | 20/40 | 1/2 | 2000 |
| DL-W3-03 | 3000/6600 | 20/40 | 1/2 | 3000 |
| DL-W3-05 | 5000/1100 | 40/80 | 2/4 | 2500 |
| DL-W3-10 | 10000/22000 | 100/200 | 5/10 | 2000 |
| DL-W3-20 | 20000/44000 | 200/400 | 10/20 | 2000 |
| DL-W3-30 | 30000/66000 | 200/400 | 10/20 | 3000 |
| DL-W3-50 | 50000/110000 | 400/800 | 20/40 | 2500 |
| DL-W3-100 | 100000/220000 | 1000/2000 | 50/100 | 2000 |
| DL-W3-200 | 200000/440000 | 2000/4000 | 100/200 | 2000 |
Description of wireless tension link
Rugged construction.
1.Accuracy: 0.05% of capacity.
2.All fuctions and units are clearly display on the LCD (with backlighting).
3.Digits are 1 inch high for easy distant viewing.
4.Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
5.Long battery life on 3 standard “LR6(AA)”size alkaline batteries.
6..All commonly used internationally recognized units are available : kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).
7.Infrared Remote control easier to calibration(with password).
8.Infrared Remote control with many fuctions : “ZERO”, ”TARE”,”CLEAR”, “PEAK”, ”ACCUMULATE” ,”HOLD” ,”Unit Change” ,”Voltage Check” and “Power OFF”.
9.4 local mechanical keys :”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”.
10.low battery warning .

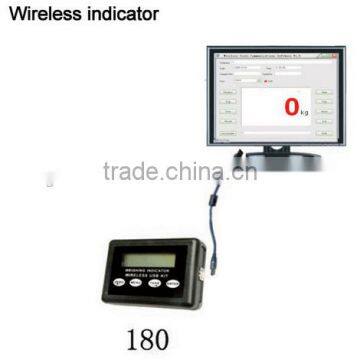

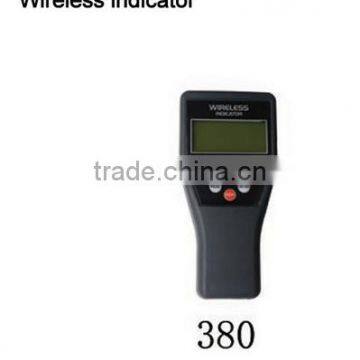

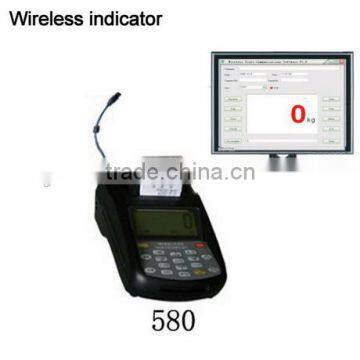

11.RF wireless palm indicator.
Main technical data :
| Display | 25mm (1’’) 5digits LCD |
| Power on zero range | 20% F.S. |
| Manual Zero Range | 4% F.S. |
| Tare Range | 20% F.S. |
| Stable Time | ≤10seconds |
| Overload Indication | 100% F.S. + 9e |
| Max. Safety Load | 125% F.S. |
| Ultimate Load | 400% F.S. |
| Battery Life | ≥40 hours |
| Battery Type | “LR6(AA)”size alkaline batteries. 1.5V*3 |
| Operating Temp | - 10℃ ~ + 40℃ |
| Operating Humidity | ≤85% RH under 20℃ |
| Remote Controller Distance | Min. 15m |
| Wireless Frequency | 2.4GHz(default),433MHz,860MHz(optional) |
| Wireless Distance | Min. 80m(default) [200m(optional)] |
We can provide not only amazing products,but also special ones designed at requests. We'll do our best to meet the need of customers.
