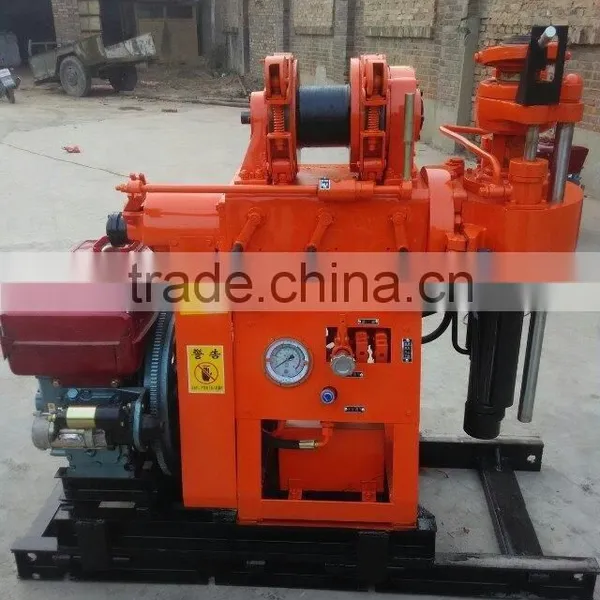

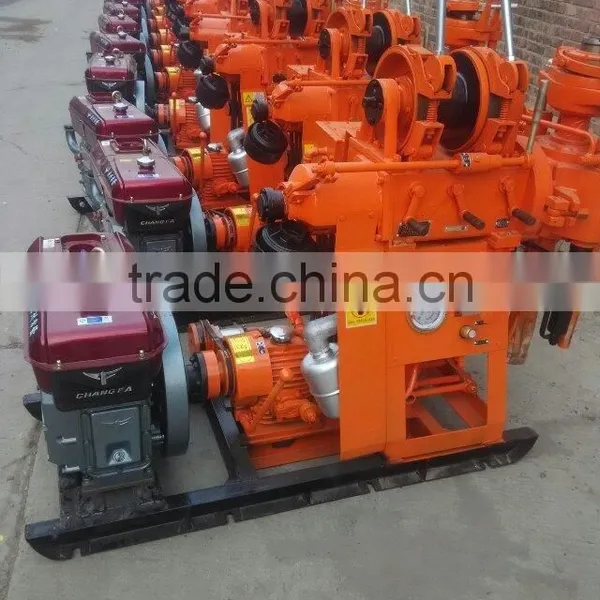

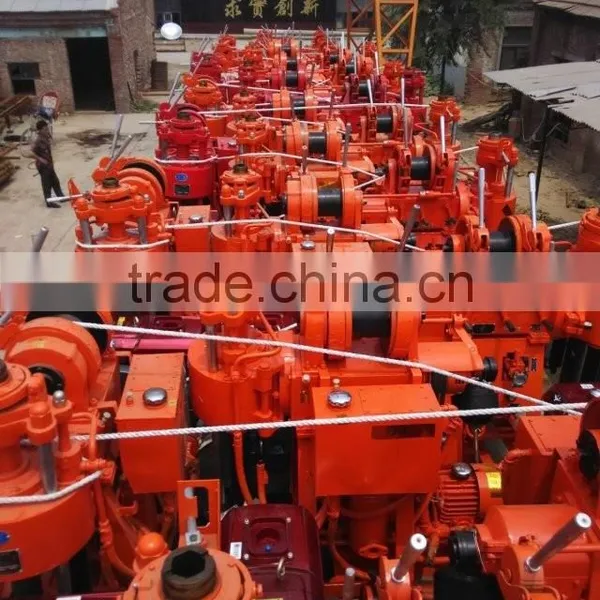

XY-1 XY-1A XY-1B GB-100 GB150 Drilling Rig

Henan Zhongmei Drill Tool Co., Ltd.

US$ 1,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Core Drilling Rig

Power Type:

Diesel

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai tianjin qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Core Drilling Rig

Power Type Diesel

Place of Origin Henan, China

Brand Name ZM

Model Number xy-1

Usage Other, geological, engineering geological survey and exploration of solid mineral

Voltage 0.7Mpa

Power(W) 11KW

Dimension(L*W*H) 1700*900*500mm

Weight 550kg

Certification ISO2000

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

XY-1Rig Technical Specifications
Main technical parameters		Pump
Drilling depth(m)	100m	Type	Gear pumps
Hole diameter	110mm	Model	YBC-12/80
The final hole diameter	75mm	Rated pressure	8Mpa
Rod diameter	42-50mm	Flow	8ml/r
Borehole inclination	90°— 75°	Rated speed	1500r/min
Rig Dimensions (L×B×H)	1640mm×1030mm×1440mm
Rig weight(Except the power machine )	500kg	Motor and diesel
Gyrator		type	ZSⅡ00
vertical speed	142,285,570r/min	Rated Power	11KW
vertical stroke	450mm	Rated speed	2200r/min
vertical load up the maximum speed	3m/min	Electric motor
vertical load down the maximum speed	4m/min	type	Y160M-4
The maximum vertical force feed	15KN	Rated Power	11KW
The maximum vertical lifting force	25KN	Rated speed	1460r/min
		Pump
Winches		Type	Horizontal single-cylinder double-acting
The maximum lifting capacity ( a single rope speed )	10KN	The maximum displacement	99(77)L/min
Reel speed	55,110,220r/min	The maximum allowable pressure	1.2Mpa
Roll peripheral speed	0.42,0..84,1.68m/s	Working Pressure	0.7Mpa
Reel diameter	145mm	The number of strokes	120(96)min
Rope diameter	9.3mm	Liner diameter	80mm
Rope capacity	27m	Piston stroke	100mm
Brake diameter	230mm
Gate width	50mm
