1.main used for irrigation agricultural machinery.2.high pressure,lift much,less engergy consumption,easy operation

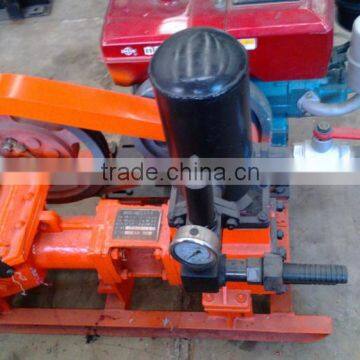

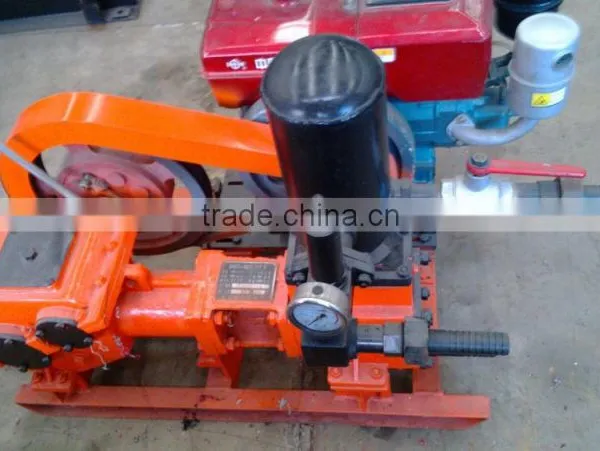

BW160/BW200/BW250 mud pump are mainly used for irrigation agricultural machinery.the main characteristic is the high pressure,lift much,less engergy consumption,easy operation,high quality and duarable,easy to move,especially for mountain terraces of irrigation.
they are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.
| Model NO: | BW160 | BW200 | BW250 |
| Type | horizontal single cylinder double action reciprocating piston pum | horizontal type two cylinder double action pump | horizontal triplex reciprocating single acting piston pump |
| cylinder daimeter | 95mm | 80,65mm | 80,65,70mm |
| piston stroke | 85mm | 85mm | |
| frequency of stroke | 165 times/min | 145 times/min | 200 times/min |
| flow rate | 160 l/min | 200;125 l/min | 250,166,200 l/min |
| pressure | 1.3mpa | 4,6mpa | 2.5,4,5,6,7mpa |
| power input | 5.88kw | 14.7kw/20hp | 22kw |
| diameter of discharge pipe | 50mm | 65mm | 76mm |
| diameter of discharge pipe | 40mm | 37mm | 51mm |
| overall dimensions(L*W*H) | 1110*725*965mm | 1050*630*820mm | 1100*995*650mm |
| weight | 200kg | 300kg | 760kg |
general is wooden case,also can according to customer demand
by sea by air
our company main produce drill bit,drill rod,core barrel,drill tool,machine.export to many countries for eight years.
