Hydraulic Wet-pin Type 24v Control Valve Soleniod

Specifications

Control valve soleniod or with half wave rectification in 110/220VAC
Assemble with connection box and NG 10 type valve

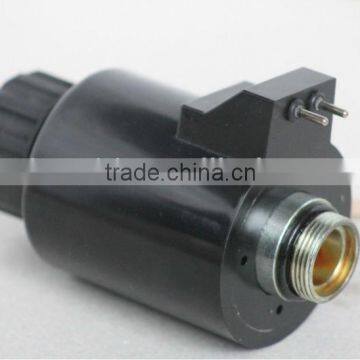

control valve soleniod   MFZ12-90YCA



    This series of solenoids is operated by the Single-Phase Full-Wave-Rectified power supply at the voltage up to 220VDC, and can be matched with the Germany“Rexroth”10 Screw-Connected Reversing Solenoid Valves.



Specifications:



Model No.	Rated Magnetic Power N	Rated Stroke  mm	Full Stroke mm	Oil Pressure Duration MPa	Holding Power  W	Operating Frequency t/h	Relative Duty Rating %	Rated Voltage V
MFZ 12 -90YCA	≥ 90	4	≥8	21	≤ 40	1200	100	12 24 110 220

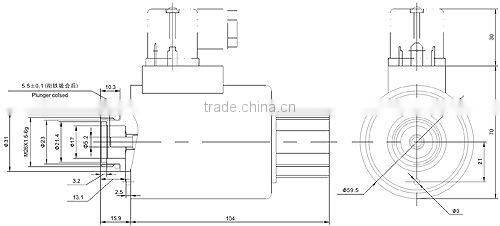

External Shape and Installing Dimension:













Advantage:

1. Low MOQ: It can meet your promotional business very well.

2.OEM Accepted: we can produce any your design.

3.Good service: We treat clients  as friend.

4.Good quality: we have strict quality conrol system. Good reputation in the market.

5. Fast& cheap delivery: we have big discount from forwarder(long Contract)



Order Guide:

Genaral Order Information

We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the US market, European Market and Africa Market. Pls be aware that on our understanding of  the demands and nature of promotional and marketing deadlines,That's why we always ensure that every order is delivered on time.
