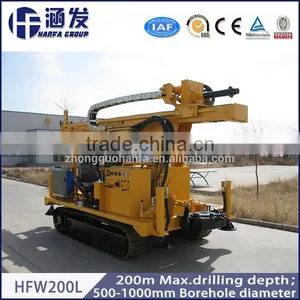

Help CenterHFW-200L Multi-functional Hydraulic Water Well Drilling Machine
Related Products
-
HFT600ST Truck Mounted Water Well Drilling Rig Multifunctional Drilling MachinesUS$ 214,000 - 300,000MOQ: 1 Set -
Trailor Type Water Well Drilling Machine HF-200US$ 10,000 - 12,000MOQ: 1 Set
-
HFT350B Truck Mounted Water Well Drilling RigNegotiableMOQ: 1 Set
-
HFT350B Truck Water Well Drilling Rig MachineNegotiableMOQ: 1 Set
-
HFT350B Truck Mounted Wate Well Drilling MachineNegotiableMOQ: 1 Set

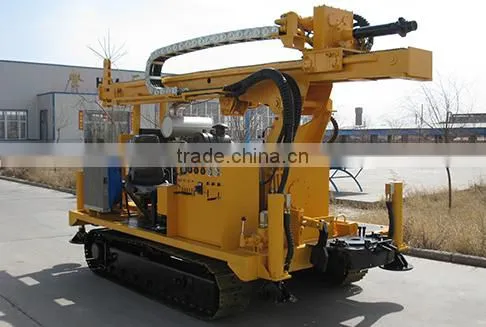

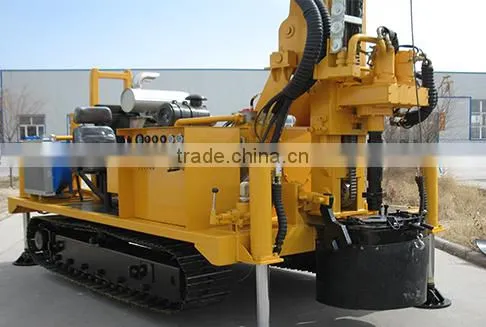

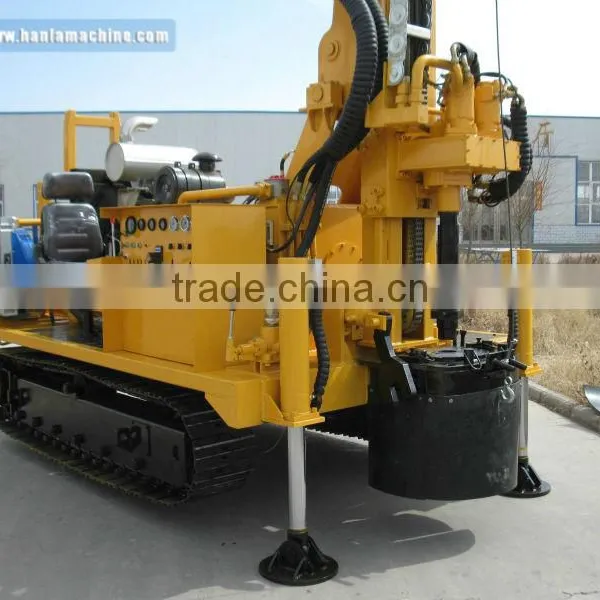

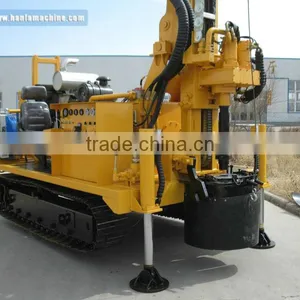

HFW-200L multi-functional hydraulic water well drilling machine
Product Description:
1.HFW200L water well drilling machine is a kind of light and high efficient multifunctional water well drill rig
with steel track.HFW200L water well drilling machine is widely used in engineering construction for
drilling wells,monitoring wells and groundsource heat pump airconditioner,and also applied in hole
blasting,bolting and anchor cable,et.

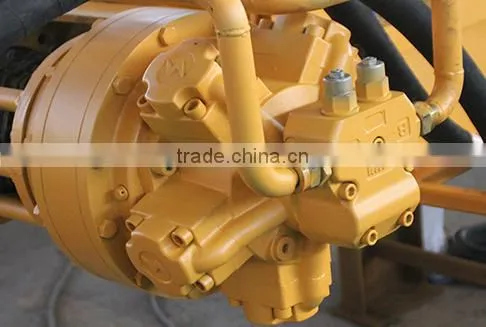

2.Top drive rotary power head and a hydraulic rotary disk rotating mechanism, hydraulic motors, hydraulic
winch chain propulsion for deep hole technology,mud,compressed air DTH hammer drilling technology,
HFW200L water well drilling machine can finish cover layer,sand gravel,sand,rock layer stratum,large
diameter deep hole construction.
3.The drill, drill pipe rack lift unloading, leveling supporting legs, lifting, walking and other auxiliary
movement by the hydraulic system, HFW200L water well drilling machine not only can improve the working efficiency, and reduces the labor intensity of operators.
Main Features:
1.Guide lane matches with roller skate, HFW200L water well drilling machine can reduce the sliding
resistance,and also reduce friction and improve the lifetime of extension guide.
2.Hydraulic power head and a hydraulic rotary disc motor chain, drilling and hydraulic winch binding, new
drilling method, reasonable power matching.
3.Set covering layer, stratum two kinds of method in one construction drill
4.Travelling to tracked self-propelled structure, optional6x4heavy truck to car type well drilling.
5.HFW200L water well drilling machine is very convenient with air compressor and DTH hammer, using
compressed air DTH hammer drilling technology, complete the bedrock drilling operation.

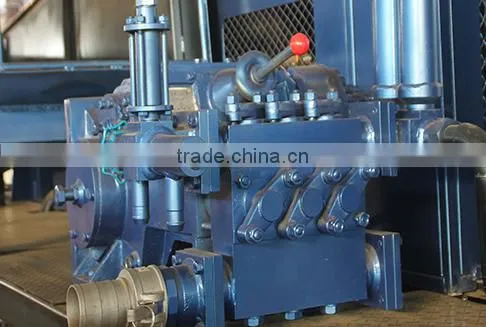

6.HFW200L water well drilling machine is equipped with patent technology hydraulic rotary disk, mud pump,
hydraulic winch, the mud can be completed normal circulation drilling technology.
7.Drill carriage slipway and roller skate matching,Namely, reduce sliding resistance, and reduce the slide
wear. To extend the service life
8.Twospeed hydraulic regulation is used in rotary,trust,lifting,shall make drilling specification more match with well working situation.
9.Hydraulic system equipped with separate aircooled hydraulic oil cooler,and can optional install water cooler
to ensure hydraulic system keep continuous and efficient operation under the hightemperature weather
conditions of different regions.
10.Four strenthened hydraulic jacks can become self loading system, to ensure rotation easy and save lifting
costs.

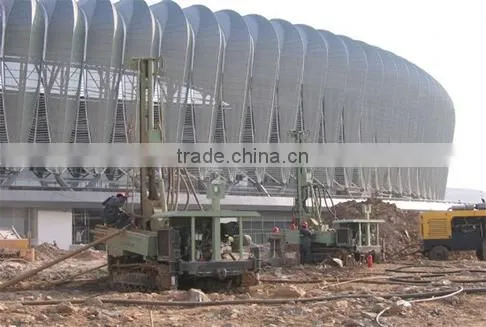

In Worksite
In Worksite
Specification:
HFW200L water well drilling machine specification:
Kw | Engine power | 110 |
M | Max.drilling depth | 200 |
Mm | Borehole diameter | Rock layer100-200,soil layer500-1000 |
Mpa | Working air pressure | 1.05-2.46 |
m3/min | The total gas consumption | 16-30 |
m/h | Drilling efficiency | 10-25 |
m | Length of drill rod | 3 |
mm | Drill pipe diameter | 89/108 |
mm | The driven rod | 108*108 |
KN | Axial pressure | 120 |
KN | Lifting force | 120 |
KN | Hydraulic hoist | 100 |
m/min | Slow down,slow speed | 9.2 |
m/min | Rise fast,fast forward speed | 50 |
Nm | Power head of rotary torque | 5400 |
Nm | Lower rotary hydraulic turntable | 35000 |
r.p.m | Rotary speed | 0-50,0-100 |
L/min | Hydraulic mud pump | 250 |
Km/h | Walking speed | 3 |
° | Climbing ability | 20 |
KN | Host weight | 7200 |
mm | Mainframe exterior size | 5700*2100*3200 |
Customers Visit
Customers Visit
After sales:
1.New HFW200L water well drilling machine provides technical train.
2.Once anything goes wrong with the machine by normal using,our technical person must appear at the first time no matter where you are.
3.When the machine should be maintained,you will receive the reminding from us.
4.According to different geological conditions,we will recommend different construction plans for you.
5.Remind you which are wearing parts,so you can prepare enough.
6.24 hours respond to your quality problem.
7. Other customer's reasonable request

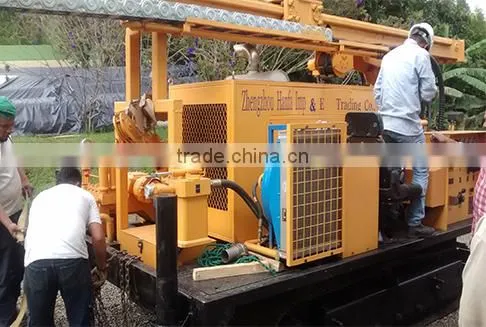

Delievery to Africa
Sales manager:Vincent Guo
Office tel:+0086-371-55019599
After sales: +0086-371-67990387
Accessories:+0086-371-55019184
Email Address:admin@
Hanfa Website:
